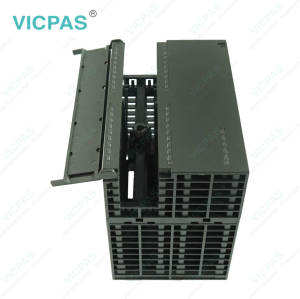

SIEMENS SIMATIC S7-300 6ES7323-1BL00-0AA0 Plastic Shell
- Model
- 6ES7323-1BL00-0AA0
Item specifics
- Brand
- Siemens
- Warranty
- 365 Days
- Product Line
- Siemens SIMATIC S7-300 Enclosure
- Supply
- Siemens SIMATIC S7 300 SM 323 digital module
- Siemens S7-300
- 6ES7323-1BL00-0AA0
- Model
- 6ES7 323-1BL00-0AA0
- Number
- 6ES73231BL000AA0
Review
Description
SIEMENS SIMATIC S7-300 SM 323 Modules 6ES7323-1BL00-0AA0 HMI Case Replacement
Digital IO module SM 323; DI 16/DO 16 x DC 24 V/0.5 A; (6ES7323-1BL00-0AA0 Enclosure) Properties
Properties of SM 323; DI 16/DO 16 x DC 24 V/0.5 A:
• 16 inputs, electrically isolated in groups of 16
• 16 outputs, electrically isolated in groups of 8
• Rated input voltage 24 V DC
• Rated load voltage 24 V DC
• Inputs suitable for switches and 2-/3-/4-wire proximity switches (BEROs)
• Outputs capable of driving solenoid valves, DC contactors and indicator lights
SIMATIC Outdoor 6ES7323-1BL00-0AA0 Plastic Shell modules are modules that can be used under extended environmental conditions. Extended environmental conditions mean:
operation possible at temperatures from –25°C to +60°C
occasional, brief condensation permitted
increased mechanical stress permissible
The functional scope and technical specifications for the SIMATIC Outdoor 6ES7323-1BL00-0AA0 HMI Case modules correspond to those of the ”standard” modules. The mechanical and climatic environmental conditions as well as their test method have changed. The SIMATIC Outdoor 6ES7323-1BL00-0AA0 Plastic Case Cover modules have their own order numbers
Specifications:
The table below describes the parameters of the Siemens SIMATIC SM 323 digital modules 6ES7 323-1BL00-0AA0 Plastic Cover Parts.
| Atmospheric pressure: | 1080 to 660 hPa |
| Efficiency: | 84 % |
| Power consumption: | 57 W |
| Product Line: | Siemens Simatic S7-300 |
| Temperature: | –40 °C to +70°C |
| Dimensions W x H x D (mm): | 40 x 120.4 x 110.8 |
| Part Number : | 6ES7323-1BL00-0AA0 |
| Power loss: | Typ. 9 W |
| Safety isolation: | SELV circuit |
| Warranty: | 365 days Warranty |
Related Siemens Simatic S7-300 Part No. :
| Siemens Simatic S7-300 | Description | Inventory status |
| 6ES7322-5FF00-0AB0 | Siemens Simatic S7-300 SM 322 HMI Case Replacement | In Stock |
| 6ES7322-5GH00-0AB0 | Siemens SIPLUS S7-300 Plastic Case SM 322 Replacement | Available Now |
| 6ES7322-5HF00-0AB0 | SIMATIC S7 300 SM 322 Plastic Shell Repair Part | In Stock |
| 6ES7322-5SD00-0AB0 | Siemens S7-300 SM 322 Housing Enclosure Repair | Available Now |
| 6ES7322-5RD00-0AB0 | Siemens S7-300 SM 322 Plastic Shell Replacement | In Stock |
| 6ES7322-8BF00-0AB0 | Siemens S7-300 SM 322 Plastic Case Replacement | In Stock |
| 6ES7323-1BH01-0AA0 | SIMATIC S7 300 SM323 HMI Enclosure Replacement | In Stock |
| 6ES7323-1BL00-0AA0 | SIMATIC S7 300 Plastic Case SM 323 Replacement | Available Now |
| 6ES7326-2BF10-0AB0 | Siemens S7-300 SM 323 Housing Repair Replacement | Available Now |
| 6ES7327-1BH00-0AB0 | Siemens S7-300 Plastic Shell SM 323 Repair | In Stock |
| SIPLUS S7 300 PLC | Description | Inventory status |
Siemens SIMATIC S7-300 HMI Manuals PDF Download:
FAQ:
Question: How often do I have to replace battery?
Answer:
Backup battery: We recommend an annual replacement
Rechargeable battery: Never needs to be replaced.
Question: How to install a new 6ES7323-1BL00-0AA0 Cover Body module?
Answer:
Install the new module as follows:
1. Insert the new module of the same type and swing it down into place.
2. Screw-tighten the module.
3. Slip the labeling strip of the removed module into its guide on the new module.
