1301-X161 A TTI 1301-161 D TTI HMI Panel Glass Repair
- Model
- 1301-X161 A TTI 1301-161 D TTI
Item specifics
- Warranty
- 365 Days
- Shipping
- 2-4 workdays
- Brand
- TTI Touch Screen
- Touch screen panel type
- Resistance touch screen
- Supply Parts
- TTI Touchscreen Panel
- Part Number
- 1301-X161 A TTI 1301-161 D TTI
Review
Description

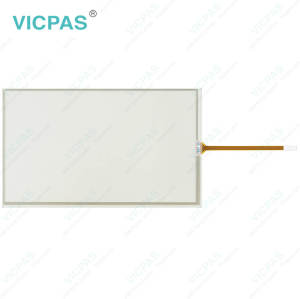

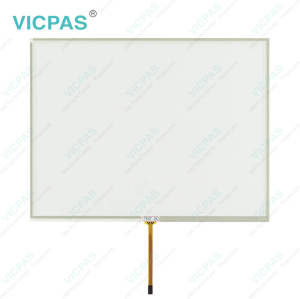

1301-X161 A TTI 1301-161 D TTI Touch Screen Glass Repair Replacement
Since 1301-X161 A TTI 1301-161 D TTI touch panel is consist of Glass, pls. be careful your hand and other part from injury at handling. You must wear gloves at handling. Do not put a heavy shock or stress on 1301-X161 A TTI 1301-161 D TTI touch panel. Do not lift 1301-X161 A TTI 1301-161 D TTI Touch Panel by cable (FPC). Do not add any stress only film face. (Ex. Don’t transfer the panel by film face with vacuum). Pls. use dry cloth or soft cloth with neutral detergent (after wring dry) or one with ethanol at cleaning. Do not use any organic solvent, acid or alkali solution. Do not pile 1301-X161 A TTI 1301-161 D TTI Touch Glass. Do not put heavy goods on 1301-X161 A TTI 1301-161 D TTI Touch Screen Panel. Do not bend a cable of 1301-X161 A TTI 1301-161 D TTI Panel Glass for prevent happen to line cut failure.
Specifications:
The table below describes the parameters of the 1301-X161 A TTI 1301-161 D TTI Touch Screen HMI Part.
| Warranty: | 1-Year Warranty |
| Tail Options: | FPC tail |
| Response time: | ≦ 30ms |
| Operating Humidity: | 20% to 85% RH |
| Storage Humidity: | 10% to 90% RH |
| Product Line: | TTI Touch Panel |
| Number of Touches: | Single |
| Operating Temperature (*): | -5˚C to 60˚C |
| Storage Temperature: | -20˚C to 70˚C |
Related TTI Touch Screen HMI Part No. :
| TTI Touch Screen | Description | Inventory status |
| 0516-X123 03-TW | TTI Touch Screen Glass Replacement | In Stock |
| 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA | TTI Touch Screen Panel Replacement | Available Now |
| 1201-680 B TTI | TTI HMI Touchscreen Repair Part | In Stock |
| 1201-800 A TTI 1301-X911 01 | TTI HMI Touch Screen Glass Repair | Available Now |
| 1201-X151 A TTI 1201-X151 02 | TTI Touch Screen Panel Replacement | In Stock |
| 1201-X231 03 1305-524 C TTI | TTI Touch Membrane Replacement | In Stock |
| 1301-010 02 | TTI HMI Touch Glass Replacement | In Stock |
| 1301-X161 A TTI 1301-161 D TTI | TTI HMI Panel Glass Replacement | Available Now |
| 1301-840 A TTI 1201-X131-01 T010-1201-X131-01 | TTI Touch Digitizer Glass Repair | Available Now |
| 1301-910 BTTI 1301-X911 01 | TTI Touch Screen Monitor Repair | In Stock |
| 1301-X161 1301-161 B TTI | TTI HMI Touch Panel Replacement | Available Now |
| 1301-X991 02-NA | TTI HMI Touchscreen Repair Part | In Stock |
| TTI Touch Panel | Description | Inventory status |
FAQ:
Question: How to test 1301-X161 A TTI 1301-161 D TTI Touch Screen Panel Glass?
Answer:
Linearity Condition
Step 1: short RT and RL (or short RL and LL).
Step 2: apply voltage DC 5V.
Step 3: short LT and LL (or short RT and LT).
Step 4: apply grounding.
Step 5: draw points along LX and LY at 5.0mm intervals within pattern area and detect the voltage at SG.
Step 6: measure the voltage differences between RT and LT (or RT and RL)
Common misspellings:
1301-X161 A TTI 301-161 D TTI
1301-161 A TTI 1301-161 D TTI
1301-X161 A TTI 1310-161 D TTI
1301-X161 A TTI 1301-16l D TTI
1301-X1b1 A TTI 1301-161 D TTI
13301-X161 A TTI 1301-161 D TTI
1301-X161 A TTI 1301-161 D TITI
