Model
50817-0096L05 50817-0096L10

Item specifics

Warranty
365 Days
Shipping
2-4 workdays
Brand
Kawasaki Robotics
Model
50817-0096L05 50817-0096L10

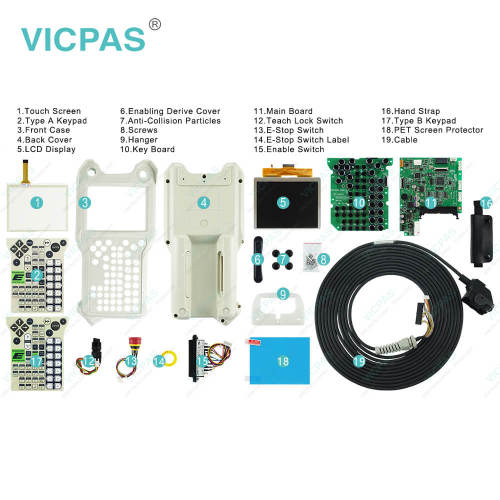

Supply Parts
Teach Pendant Touch Screen Plastic Case Shell
Buy Accessories
LCD Display Membrane Keypad Switch

Review

Description

Kawasaki Robotics 50817-0096L05 50817-0096L10 membrane keypad, LCD display, touch screen and protective case shell for repair replacement

Order each part separately is available

Kawasaki Robotics 50817-0096L05 50817-0096L10 plastic enclosure repair replacement

To safeguard the user, Kawasaki 50817-0096L05 50817-0096L10 Terminal Keypad HMI Panel Glass LCD Screen Plastic Shell robot systems are equipped with many safety features, including the following:
1. All emergency stops are hard-wired.
2. All 50817-0096L05 50817-0096L10 Keypad Touch LCD Housing robot controllers are equipped with a redundant dual channel safety circuit. Both channels of the safety circuit must be closed to allow for robot operation in teach and repeat modes.
3. Safety circuits of the controllers satisfy requirements of PLe in category 4 defined by ISO 13849-1:2015. Category and Performance level (PL) are determined by the whole system and conditions.
4. (For the robot arms with servo lamp) When the servo ON lamp (located on the mechanical unit) is illuminated, servo motor power is available to the robot and motion is possible.
Kawasaki Robotics Teach Pendant 50817-0096L05 50817-0096L10 membrane keyboard keypad repair replacement
5. 50817-0096L05 50817-0096L10 Keyboard Membrane Touch Panel LCD Display Plastic Case Cover Teach pendant and operation panel are equipped with red mushroom-type E-stop switches. And all 50817-0096L05 50817-0096L10 Membrane Keypad Switch Touchscreen LCD Display Panel Plastic Cover Body robot controllers have external E-stop inputs.
6. 50817-0096L05 50817-0096L10 Operator Keypad Touch Glass LCD Panel Housing Teach pendant is equipped with three-position, enabling devices. Enabling devices must be pressed to enable motor power in teach and check modes.
7. Teach and check mode velocities are limited to a maximum of 250 mm/s (10.0 in/s).
Kawasaki Robotics 50817-0096L05 50817-0096L10 Touch Panel and LCD Display Screen repair replacement
8. Velocities are not limited to 250 mm/s (10.0 in/s) in the Fast Check Mode that satisfy requirements for ISO 10218-1:2011. 9. Optional over travel limit switches are available on JT1, JT2 and JT3 of the arm.
10. Mechanical units have over travel mechanical stop person the JT1, JT2 and JT3 (optional for JT2 and JT3) axes. Mechanical stoppers are capable of stopping the robot at full speed and with maximum payload. See the specifications of the product for details of the mechanical stoppers.
11. All robot axes are equipped with 24 VDC electromechanical brakes that engage when power is removed. If the robot loses power unexpectedly, the mechanical unit arm is held in position by the brakes.




Specifications:

The table below describes the parameters of the 50817-0096L05 50817-0096L10 teach pendant.

Part Number : 50817-0096L05 50817-0096L10
Product Line: Kawasaki Robotics
Humidity: 35-85% RH
Warranty: 1-Year Warranty
Touchscreen: colour LCD Display
Operating system: Windows CE
Language: Worldwide
Storage Temp.: -20℃~+70℃
lineation test: ≥1.000.000 times
Input Type: ≥100.000 times


Related Kawasaki Robotics Teach Pendant Part No. :

Kawasaki Robot Parts Description Inventory status
50817-0096L05 Kawasaki Robot Pendant Touch Screen Monitor Membrane Keypad LCD Case In Stock
50817-0096L10 Kawasaki Robot Terminal Keypad Touch Membrane LCD Plastic Shell In Stock
50817-0096L15 Kawasaki Robot Teach Pendant Touch Screen LCD Keypad Membrane Enclosure In Stock
50817-0096L20 Kawasaki Robot Teaching Touch Digitizer Glass Switch Membrane LCD Shell Available Now
50817-0099 Kawasaki Robot Controller Panel Glass LCD Membrane Keyboard Keypad Case Available Now
50817-0099L05 Kawasaki Robot Pendant Touch Screen Monitor Keypad LCD Housing In Stock
50817-0099L10 Kawasaki Robotics Controller Terminal Keypad Touch Membrane LCD Plastic Case In Stock
50817-1349 Kawasaki Robotics Teach Pendant Touch Screen Membrane Keyboard LCD Body In Stock
60337-0285 Kawasaki Teach Pendant Touch Panel Membrane Keypad LCD Plastic Cover Available Now
Kawasaki Teach Pendant Description Inventory status
