Simatic 6AV6634-5MA10-0ND0 Touch Screen Panel Glass
Simatic 6AV6634-5MA10-0ND0 Touch Screen Panel Glass
Simatic 6AV6634-5MA10-0ND0 Touch Screen Panel Glass
Model
6AV6634-5MA10-0ND0

Item specifics

Touchscreen panel
Resistance touch screen
touch panel
in stock
Brand
Siemens
Warranty
365 days warranty
Size
10.4 inch
Line
Multi Panel MP277T mono 6
Model
6AV6634-5MA10-0ND0
Accessories

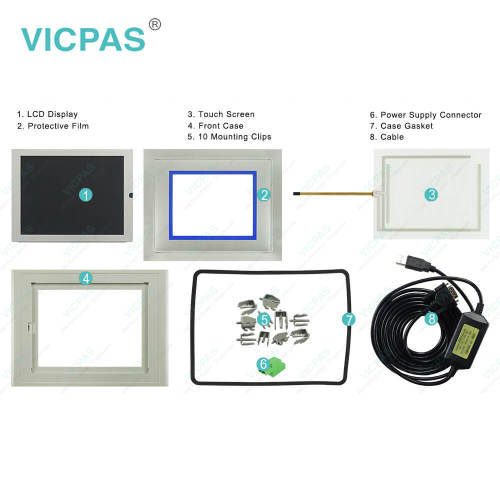

Touch screen, protective film, lcd display, plastic housing

Review

Description

6AV6634-5MA10-0ND0 Siemens SIMATIC Touchscreen Panel Glass Repair Replacement


6AV6634-5MA10-0ND0 Touchscreen Panel Glass, Protective Film, LCD Display Repair Replacement


VICPAS supply 6AV6634-5MA10-0ND0 Siemens MP277T mono 6" touch panel, overlay, LCD display, plastic case. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.


The HMI device MP277T mono 6" Touch is available in two enclosure models with differentproduct versions. The product version is indicated on the back of the HMI device.
SIMATIC MP277 6 mono Touch Multi Panel with retentive memory 10.4" TFT display 6 MB configuration memory configurable with WinCC flexible 2005 Standard SP1.


The Multi Panel MP 277 units are an extension of the 270 series.The HMI devices are based on the innovative standard operating system, MicrosoftWindows CE 5.0. The Multi Panel MP 277 units belong to the "Multifunctional Platform"product category. The HMI devices offer enhanced communication options to the officeworld. The Pocket Internet Explorer is already installed on the HMI devices.
The MP 277 offers a variety of application uses, high performance and a favorablecost/performance ratio.

The devices are equipped with:
● PROFIBUS port
● Ethernet port for connection to PROFINET
● 2 USB ports
● TFT screen with up to 64k color

Thanks to the wide range of devices, you get to use the device that is suited to you.
In addition to the classic HMI application WinCC flexible, the HMI devices also supportadditional applications, for example:
● Sm@rtService
● Sm@rtAccess
● OPC server






Specifications:

The table below describes the parameters of the 6AV6634-5MA10-0ND0 Siemens MP277 HMI Parts.

Part Number : 6AV6634-5MA10-0ND0
Screen diagonal: 8.4 in
Design of display: TFT
Warranty: 365 days Warranty
Product Line: Siemens MP277T mono
Active power input, typ.: 12 W
MTBF backlighting (at 25 °C): 50 000 h
Number of colors: 65 536
Mounting position: vertical
Type of supply voltage DC


Related Simatic MP277T mono Part No. :

Siemens MP277T mono Description Inventory status
6AV6634-5MA10-0ND0 Siemens Simatic MP277T mono In Stock
6AV6643-5MA10-0ND0 MP277T mono 6" MOSCA Available Now
6AV6643-5MA10-0ND1 SIMATIC MP277T Mono 6" In Stock
6AV6643-5MA10-0ND2 MP 277 T transverse design 5.7" monochrome In Stock
6AV6643-6CB01-0GH0 MP 277 T transverse design 5.7" monochrome Available Now
SIMATIC MP 277 T Description Inventory status

Siemens MP277 HMI Manuals PDF Download:

  • Siemens Simatic MP277 Panel manual


  • FAQ:

    Question: How to use Siemens MP277T mono 6" 6AV6634-5MA10-0ND0 touch operating a project?

    Answer:Configuration and process control phase:
    HMI devices can be used to operate and monitor tasks in process and production automation. The plant screens on the HMI devices are used to provide a clear overview of the active processes.
    The HMI device project, which includes the plant screens, is created during the configuration phase. The configuration engineer defines which tasks the HMI device has in the process and defines the following in detail:

    ● Which process data is displayed on the individual HMI device
    ● Which plant components are controlled by this HMI device

    The configuration engineer stores this information in the project's screens. The project is transferred to the HMI device during commissioning.
    After transfer to the HMI device, current processes can be operated and monitored in the project's screens. The screens enable you to observe, for example, operational states, current process data and faults in a plant.
    Operating elements which are used to operate the process, for example buttons, I/O fields and alarm windows, are displayed in the screens.

    Operator control options
    The hardware of the HMI device determines which of the following operator control optionsare available:

    ● Touch screen
    The operating elements shown in the dialogs are touch-sensitive. Touch objects arebasically operated in the same way as mechanical keys. You activate operating elementsby touching them with your finger. To double-click them, touch an operating elementtwice in succession.

    ● HMI device keyboard

    The operating elements shown in the screens are selected and operated using the keysof the HMI device.

    ● External keyboard, connected via USB

    ● External mouse, connected via USB


    Question: What is the 6AV6634-5MA10-0ND0 Siemens MP277 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Common misspellings:

    6AV6634-5MA1-0ND0
    AV6634-5MA10-0ND0
    6AV6634-5MA10-0DN0
    6AV6634-5MAl0-0ND0
    6AV6634-5MA1O-0ND0
    6AV6634-5MA10-0NND0
