12-200-1921-K Touch Anzeigeeinheit TAE1921-K Touch Glass
- Model
- Einbauterminal TAE1921-K
Item specifics
- Touch screen tapes
- Resistance touch screen
- Brand
- Sigmatek
- Product Line
- Touch Anzeigeeinheit Series Control Panel
- Size
- 19 inch
- Parts
- Touch Screen Panel Glass Repair
- Model
- Sigmatek 12-200-1921-K Touch Anzeigeeinheit TAE192
- Warranty
- 365 Days
Review
Description

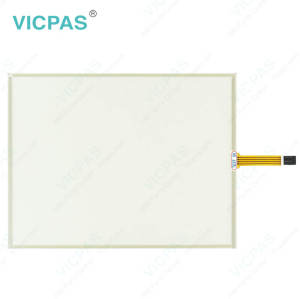

12-200-1921-K Touch Anzeigeeinheit TAE1921-K Touch Screen Panel Glass Protective Film
Control Panel 12-200-1921-K Touch Anzeigeeinheit TAE1921-K with 19" SVGA TFT LCD color display. It has 8 digital inputs and 8 digital outputs. The 12-200-1921-K Touch Anzeigeeinheit TAE1921-K Touch Digitizer Glass Front Overlay Control Panel with EDGDE Technology combines control, operation and visualization in a single unit. Local as well as decentralized I/O systems can be connected over the bus and therefore not bound to a specific topology when constructing your system. The available interface connections can be programmed completely from the application. A microSD card serves as the storage medium for the operating system, application and application data. Naturally, the TAE 1921-K panel can also be configured with the LASAL SCREEN Editor.
VICPAS supply SIGMATEK 12-200-1921-K Touch Anzeigeeinheit TAE1921-K touchscreen panel with protective film overlay, all of them are brand new with 365 days VICPAS warranty.
Specifications:
The table below describes the parameters of the Sigmatek TAE1921-K Front Overlay Touchscreen Panel.
| Part Number : | TAE1921-K |
| Product Line: | Sigmatek Anzeigeeinheit |
| Screen diagonal | 19 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Sigmatek Panel Part No. :
| Touch Anzeigeeinheit | Description | Inventory status |
| TAE 0811 | Sigmatek Touch Anzeigeeinheit Touch Screen Repair | In Stock |
| TAE 121 | Sigmatek Touch Anzeigeeinheit Touchscreen Repair | In Stock |
| TAE 151 | Touch Anzeigeeinheit Sigmatek Touch Panel Replacement | Available Now |
| TAE 1921 | Touch Anzeigeeinheit Sigmatek HMI Touch Screen Glass | Available Now |
| TAE 1921-K | Sigmatek Touch Anzeigeeinheit Touch Screen Panel Repair | In Stock |
| TAE 1922-K | Sigmatek Touch Anzeigeeinheit Touch Membrane Repair | In Stock |
| TAE 1931 | SIGMATEK Touch Anzeigeeinheit HMI Touch Glass Repair | In Stock |
| TAE 1941 | Sigmatek Anzeigeeinheit Touch Digitizer Glass Repair | Available Now |
| TTAE534 | Sigmatek Touch Anzeigeeinheit HMI Panel Glass Replacement | Available Now |
| SIGMATEK HMI | Description | Inventory status |
SIGMATEK TAE1921 Control Panel Manuals PDF Download:
FAQ:
Question:What is the price of SIGMATEK TAE1921-K Touch Screen Panel and Protective Film?
Answer: Submit a quote request, send us an email for our best price.
Question:How to exchange the Sigmatek TAE 1921-K Battery?
Answer:
1. Disconnect the power to the TAE1921-K .
2. Open the locking screws on the back f the terminal with a PH-1 screwdriver:
3. Lift rear panel of the terminal:
For HW version 1.x:
4. Using the strap, remove the battery the holder (see arrow).
5. Insert the new battery with the correct polarity and close the terminal.
(+ Pole toward the backside)
From HW version 2.x:
4. Using the strap, remove the battery from the holder (see arrow).
5. Place the new battery in the holder with the correct polarity (+ Pole toward the frontside) and replace the cover.
