B&R 5D2200.04 Provit 2200 Touch Screen Organizer
B&R 5D2200.04 Provit 2200 Touch Screen Organizer
B&R 5D2200.04 Provit 2200 Touch Screen Organizer
B&R 5D2200.04 Provit 2200 Touch Screen Organizer
B&R 5D2200.04 Provit 2200 Touch Screen Organizer
B&R 5D2200.04 Provit 2200 Touch Screen Organizer
Model
5D2200.04

Item specifics

Touch screen panel type
Resistance touch screen
Size
13.8 inch
Brand
B&R
Warranty
1 Year VICPAS Warranty
Model
B&R Provit 2200 5D2200.04
Shipping
DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Review

Description

B&R Provit 2200 5D2200.04 Touch Screen Glass Repair Replacement

Order each part separately is available

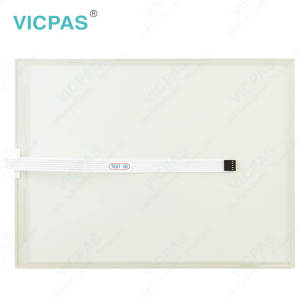

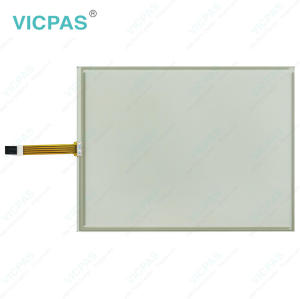

Provit 2200 5D2200.04 Touch Screen Panel

The National DP83905 VQP ETHERNET controller used is compatible to the NE2000 standard. This Provit 2200 guarantees that the standard software available on the market (NOVELL, etc.) can be used for Provit 2200 5D2200.04 network applications. The 5D2200.04 connection is made with a T-connector. A 5D2200.04 RG58/50 cable is used. The SMC COM20020 Arcnet controller which is used in the 5C2000.07 controller can be connected in an Arcnet network using a BNC socket. The connection is made with a T-connector. A Provit 2200 5D2200.04 RG62/93 W cable is used.


Controllers 5C2001.01, 5C2001.15 and 5C2001.16 are equipped with a Compact Flash slot. The Provit 2200 5D2200.04 Compact Flash cards are ATA/True IDE compatible and can be accessed without additional drivers like a hard disk. The use of these Provit 2200 5D2200.04 memory cards allows the amount of memory to be determined by the user.


  Contact Best Price


Specifications:

The table below describes the parameters of the 5D2200.04 Provit 2200 Touchscreen Panel.

Part Number : 5D2200.04
Product Line:Provit 2200
Screen diagonal13.8 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type:RS232
Storage -20 to 50°C


Related Provit Series Part No. :

B&R Provit Description Inventory status
5A2500.08 B&R Provit 2500 Operator Keyboard Repair In Stock
5A2500.09 Provit B and R 2500 Keyboard Membrane Available Now
5C2002.02 B&R Provit 2000 Touch Screen Hmi Repair In Stock
5D2000.02 Provit 2000 B and R HMI Terminal Keypad Available Now
5D2200.01 B&R Provit 2200 Touch Screen Glass Repair In Stock
5D2200.02 B&R Provit 2200 Touch Screen Panel In Stock
5D2200.04 B&R Provit 2200 HMI Touch Glass Repair In Stock
5D2200.07 B and R Provit 2200 Touch Screen Monitor Available Now
5D2200.10 B&R Provit 2200 MMI Touch Screen Repair Available Now
5D2200.17 Provit 2200 B&R Touchscreen Replacement In Stock
5D2210.01 B and R Provit 2200 Touch Panel Front Overlay In Stock
5D2219.01 Provit 2200 B and R Touch Digitizer Glass Available Now
5D2219.02 B&R Provit 2200 Touch Screen Hmi Repair In Stock
5D2219.03 Provit 2200 B and R Touch Screen Monitor In Stock
5D2300.01 B&R Provit 2000 Touch Screen Panel Repair In Stock
B and R Provit Description Inventory status

B&R Provit Manuals PDF Download:

  • B&R Provit 2000 User's Manual
  • B&R PROVIT 2000 User's Manual Display Kits
  • B&R PROVIT 2000 User's Manual 10.4-in Display Kit

  • FAQ:

    Question:How to change the B&R Provit 2200 5D2200.04 Battery?

    Answer:
    1. Disconnect the power supply
    2. Touch the housing or ground connection (not the power supply!) in order to discharge any electrostatic charge from your body.
    3. Remove the battery compartment cover.
    4. Remove the battery by pulling the removal strip (do not use - pliers or uninsulated tools! --> risk of short circuiting).
    5. The battery should not be held by its ends. Insulated tweezers may also be used for removing the battery.
    How to change the B&R Provit 2200 5D2200.04 Battery?
    6. Insert the new battery with correct polarity. The removal strip should be protruding from the battery holder and the "+" side of the battery should be facing downward. To be able to remove the battery again, the removal strip must protrude from the upper side of the battery.
    7. Now wrap the end of the removal strip over the top of the battery and insert it underneath the battery so that it does not protrude from the battery holder.
    8. Replace cover.
    9. Reconnect the power supply.
    10. Set the date and time
    How to change the B&R Provit 2200 5D2200.04 Battery?


    Question: What is the B&R Provit 2200 5D2200.04 touch screen panel price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
