B&R 4PP120.1505-31 Operator Panel Keypad Touch Overlay
- Model
- 4PP120.1505-31
Item specifics
- Brand
- B&R
- Warranty
- 1 Year VICPAS Warranty
- Model
- B&R Power Panel 100 4PP120.1505-31
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
- Size
- 15 inch
Review
Description

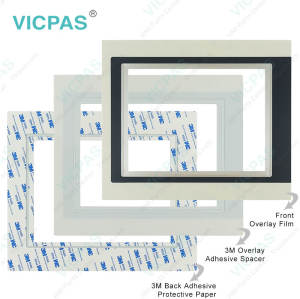

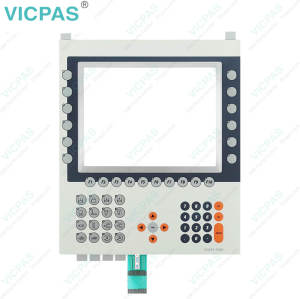

B&R Power Panel 100 4PP120.1505-31 Keyboard Membrane Touch Panel Front Overlay Repair Replacement
Order each part separately is available
The visualization project runs on the Power Panel 100. Serial RS232 or Ethernet TCP/IP provides the communication to the controller system. Flexible programming with frame drivers or Ethernet socket services allows a connection to be made to any control system. I/O peripherals and drives are connected to the controller.
B&R Automation Runtime guarantees a uniform runtime environment for Automation Studio programs on all target systems. This ensures uniform programming and operation on all devices. Automation Runtime possesses a multitasking operating system adapted specially for use with control technology. The cycle time for your application can be separated among several task classes. Automation Runtime ensures that all application programs are executed within defined time periods, proving itself to be a configurable, deterministic real-time multitasking system. An extensive project can be divided into small individual tasks. This way of working increases modularity and makes it much easier to maintain projects.
Specifications:
The table below describes the parameters of the 4PP120.1505-31 Power Panel 100 Membrane Keyboard Keypad Touch Screen Protective Film.
| Part Number : | 4PP120.1505-31 |
| Product Line: | Power Panel 100 |
| Screen diagonal | 15 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad/Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Power Panel 100 Series Part No. :
| Power Panel 100 | Description | Inventory status |
| 4PP120.1043-K05 | B&R Power Panel 100 Touch Screen Panel Glass Protective Film | In Stock |
| 4PP120.1043-K06 | PP100 B and R Touch Panel Glass Front Overlay Repair | Available Now |
| 4PP151.1043-31 | B&R Power Panel 100 Operator Panel Keypad Repair | In Stock |
| 4PP152.1043-31 | B and R Power Panel 100 Membrane Keypad Switch Replacement | In Stock |
| 4PP180.1043-31 | PP100 B&R Membrane Keypad Touch Screen Front Overlay | In Stock |
| 4PP181.1043-31 | B and R Power Panel 100 Keypad Membrane Repair | In Stock |
| 4PP182.1043-31 | PP100 B&R Membrane Keypad Keyboard Replacement | Available Now |
| 4PP120.1505-31 | Power Panel 100 B&R Membrane Keypad Switch Touch Panel Protective Film | In Stock |
| 4PP151.1505-31 | B and R Power Panel 100 Operator Panel Keypad | Available Now |
| 4PP180.1505-31 | B&R Power Panel 100 Keypad Membrane Touch Screen Front Overlay | In Stock |
| 4PP181.1505-31 | Power Panel 100 B and R Keypad Membrane Repair | Available Now |
| B and R PP100 | Description | Inventory status |
FAQ:
Question:What are the functions of B&R Automation Device Interface (ADI) - Control Center?
Answer: The functions provided by the Automation Device Interface (ADI) - Control Center vary according to the device series.
To carry out a firmware upgrade, the following steps should be taken:
• Changing display-specific parameters
• Reading device-specific keys
• Updating the key configuration
• Enabling device-specific LEDs on a membrane keypad or keys
•Reading and calibrating control devices (e.g. key switches, handwheels, joysticks, potentiometers)
• Reading temperatures, fan speeds, statistical data and switch settings
• Reading operating hours (power-on hours)
• Reading user and factory settings
• Reading software versions
• Updating and backing up BIOS and firmware
• Creating reports about the current system (support assistance)
• Setting the SDL equalizer value when adjusting SDL cables
• Changing the user serial ID
Question:How can Power Panel 100 4PP120.1505-31 screen burn-in be avoided?
Answer:
• By constantly changing between static and dynamic images
• By avoiding excessive brightness differences between foreground and background elements
• By using colors with similar brightness
• By using complementary colors in follow-up images
• By using a screensaver
Question:What causes B&R 4PP120.1505-31 image sticking?
Answer:
• Static images
• Screensaver not enabled
• Sharp contrast transitions (e.g. black / white)
• High ambient temperatures
• Operation outside of the specifications
