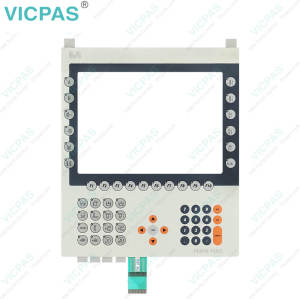

B&R 4PP120.1043-K06 HMI Touch Glass Front Overlay
- Model
- 4PP120.1043-K06
Item specifics
- Brand
- B&R
- Size
- 10.4 inch
- Warranty
- 1 Year VICPAS Warranty
- Model
- B&R Power Panel 100 4PP120.1043-K06
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Review
Description
B&R Power Panel 100 4PP120.1043-K06 Front Overlay Touch Panel Repair Replacement
Order each part separately is available
Depending on the variant, the devices have a 5.7" QVGA touch screen available in color or black/white, a 10.4" VGA, a 12.1" SVGA, or a 15" XGA touch screen in color. In addition, there re horizontally or vertically formatted devices available (numeric and alphanumeric keys, with/without legend strips) for all display sizes (exception: 12.1" SVGA - only available without keys and with touch screen).
The 3-pin socket required for the supply voltage connection is not included in delivery. This can be ordered from B&R using the model number 0TB103.9 (screw clamps) or 0TB103.91 (cage clamps). The cable required for the connection must be supplied by the customer. The supply voltage is internally protected so that the device cannot be damaged if there is an overload or if the voltage supply is connected incorrectly. Pin assignments can be found either in the following table or printed on the Power Panel plate or device label.
Specifications:
The table below describes the parameters of the 4PP120.1043-K06 Power Panel 100 Front Overlay Touchscreen Panel.
| Part Number : | 4PP120.1043-K06 |
| Product Line: | Power Panel 100 |
| Screen diagonal | 10.4 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Power Panel 100 Series Part No. :
| Power Panel 100 | Description | Inventory status |
| 4PP120.1043-K05 | B&R Power Panel 100 Touch Screen Panel Glass Protective Film | In Stock |
| 4PP120.1043-K06 | PP100 B and R Touch Panel Glass Front Overlay Repair | Available Now |
| 4PP151.1043-31 | B&R Power Panel 100 Operator Panel Keypad Repair | In Stock |
| 4PP152.1043-31 | B and R Power Panel 100 Membrane Keypad Switch Replacement | In Stock |
| 4PP180.1043-31 | PP100 B&R Membrane Keypad Touch Screen Front Overlay | In Stock |
| 4PP181.1043-31 | B and R Power Panel 100 Keypad Membrane Repair | In Stock |
| 4PP182.1043-31 | PP100 B&R Membrane Keypad Keyboard Replacement | Available Now |
| 4PP120.1505-31 | Power Panel 100 B&R Membrane Keypad Switch Touch Panel Protective Film | In Stock |
| 4PP151.1505-31 | B and R Power Panel 100 Operator Panel Keypad | Available Now |
| 4PP180.1505-31 | B&R Power Panel 100 Keypad Membrane Touch Screen Front Overlay | In Stock |
| 4PP181.1505-31 | Power Panel 100 B and R Keypad Membrane Repair | Available Now |
| B and R PP100 | Description | Inventory status |
FAQ:
Question: How can the Automation Panel B&R 4PP120.1043-K06 service life of the backlight be extended?
Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
Question: How to clean the B&R Power Panel 100 4PP120.1043-K06 Terminal Devices?
Answer:
This device should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol). The cleaning agent should be applied to the cloth beforehand, not sprayed directly on the device! Aggressive solvents, chemicals, scouring agents, pressurized air or steam jets should never be used.
