6AV6643-0DB01-1AX0 Siemens SIMATIC HMI Multi Panel MP277 8 Membrane Keypad Keyboard and plastic case for Repair Replacement

Order each part separately is available

6AV6643-0DB01-1AX0 Siemens SIMATIC HMI Multi Panel  MP277 8 touch screen, plastic case, membrane keypad, LCD Display Screen, Case Gasket, Power Supply Connector, Mounting Clips Repair Replacement

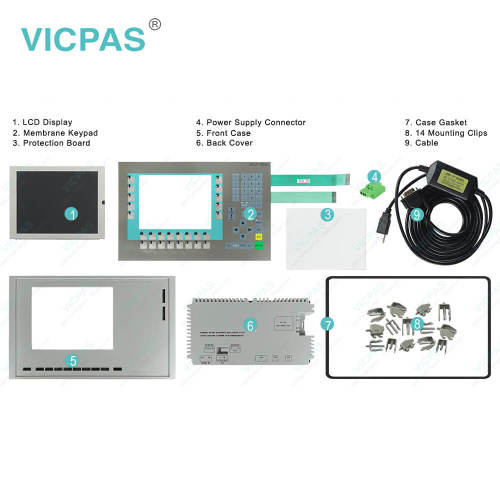

VICPAS supply 6AV6643-0DB01-1AX0 Siemens MP277 8" Membrane Keypad Keyboard, Protection Board, Mounting Clips, Power Supply Connector, LCD Display, Case Gasket and Plastic Case Repair Accessories. All of them with VICPAS 365-day warranty and support Urgent Worldwide Shipping.


6AV6643-0DB01-1AX0 SIMATIC MP 277 8,4" KEY WITH CUSTOMIZED EXPRESS DESIGN


The Multi Panel MP 277 8.4 key 6AV6643-0DB01-1AX0 units are an extension of the 270 series.The HMI devices are based on the innovative standard operating system, MicrosoftWindows CE 5.0. The Multi Panel MP 277 units belong to the "Multifunctional Platform" product category. The HMI devices offer enhanced communication options to the office world. The Pocket Internet Explorer is already installed on the HMI devices.
The MP 277 offers a variety of application uses, high performance and a favorable cost/performance ratio.

The devices are equipped with:
● PROFIBUS port
● Ethernet port for connection to PROFINET
● 2 USB ports
● TFT screen with up to 64k color





Specifications:

The table below describes the parameters of the 6AV6643-0DB01-1AX0 Siemens MP277 8 HMI Parts.

Part Number : 6AV6643-0DB01-1AX0
Screen diagonal: 8.4 in
Design of display: TFT
Warranty: 365 days Warranty
Product Line: Siemens MP277 8
Active power input, typ.: 12 W
MTBF backlighting (at 25 °C): 50 000 h
Number of colors: 65 536
Mounting position: vertical
Type of supply voltage DC


Related Simatic MP277 8 Part No. :

Siemens Multi Panel MP277 8 Description Inventory status
6AV6643-0DB01-1AX0 SIMATIC MP 277 8" KEY In Stock
6AV6643-0DB01-1AX1 SIMATIC MP 277 8" KEY Available Now
6AV6643-0DB01-1AX2 MP 277 8" KEY SMALL FRAME Available Now
6AV6643-0DB01-1AX5 MP 277 8" KEY In Stock
6AV6652-3LC01-1AA0 Siemens MP277-8 KEY Available Now
SIMATIC Multi Panel Description Inventory status

Siemens MP277 HMI Manuals PDF Download:

  • Siemens HMI MP277-8 6AV6643-0DB01-1AX0 Operating Instructions
  • Siemens Simatic MP277 Panel manual
  • Siemens Simatic MP 277 8 KEY manual


  • FAQ:

    Question: Which software for Siemens MP277 8 6AV6643-0DB01-1AX0 programming software?

    Answer:WinCC.
    WinCC (TIA Portal) is an engineering software for configuring SIMATIC Panels, SIMATIC Industrial PCs, and Standard PCs with the WinCC Runtime Advanced or the SCADA System.WinCC Runtime Professional visualization software.WinCC (TIA Portal) is available in four editions, depending on the configurable operator control.


    Question: What is the dimension of Siemens MP277 8 6AV6643-0DB01-1AX0 membrane Keypad?

    Answer:The Siemens MP277 6AV6643-0DB01-1AX0 TouchScreen is 8.4-inch. It is 153.7 millimeter long and 115.8 millimeters wide.


    Question: How to change Siemens MP277 8 6AV6643-0DB01-1AX0 monitor settings?

    Answer:
    1. If you want to increase the brightness, press the "UP" button.
    2. If you want to decrease the brightness, press the "DOWN" button.
    3. Confirm your entries.
    The dialog box closes.
    The screen settings have been changed.


    Question: What is the 6AV6643-0DB01-1AX0 Siemens MP277-8 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
