Model
2711P-T12W21D8S

Item specifics

Warranty
365 Days
Brand
Rockwell Automation Allen Bradley
Product Line
Panelview Plus 7
Supply
Panelview Plus 7 Touch Screen
Size
12.1 inch
model
2711P-T12W21D8S
Parts
Touchscreen Panel Glass Protective Film

Review

Description

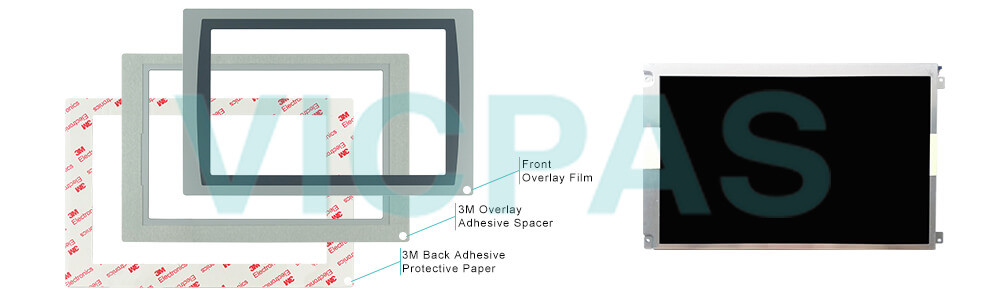

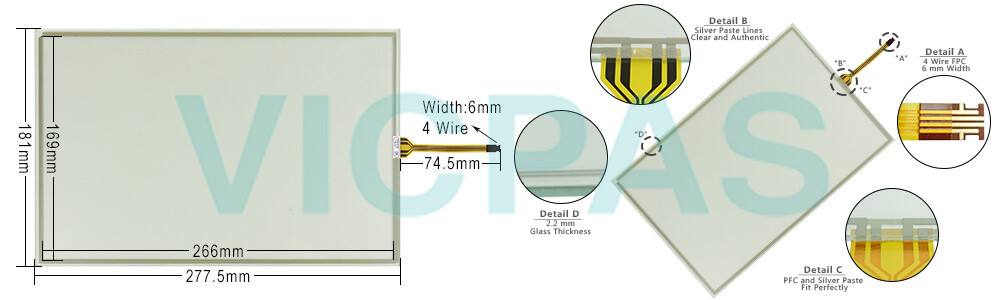

2711P-T12W21D8S Panelview Plus 7 Touch Screen Panel, Protective Films Overlay, and LCD Display Repair Replacement

Order each part separately is available

2711P-T12W21D8S Panelview Plus 7 Touch Screen Panel Protective Film LCD Display Repair Replacement
2711P-T12W21D8S Panelview Plus 7 Touch Screen Panel Protective Film LCD Display Repair Replacement


VICPAS supply panelview Plus 7 2711P-T12W21D8S Touchscreen Panel, Protective Film Overlay, and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.


The PanelView™ Plus 7 Standard terminals 2711P-T12W21D8S are operator interface devices. They monitor and control devices that are attached to ControlLogix® 5570 and CompactLogix™ 5370 controllers on an EtherNet/IP network. Animated graphic and text displays provide operators a view into the operating state of a machine or process. Operators interact with the control system by using touch screen input.


The PanelView Plus 7 Standard terminals 2711P-T12W21D8S include these features:
• Terminal functionality permits connection to 1 controller, up to 25 screens, and up to 200 alarms.
• FactoryTalk® View Machine Edition software provides a familiar environment for creating HMI applications.
• Windows CE operating system with desktop access for configuration and third-party applications.
• Ethernet communication that supports linear and star network topology.
• PDF viewer to access PDF files that are stored on the terminal.
• More screen options including 4-in., 6-in., 7-in., 9-in., 10-in., 12-in., and 15-in. terminals.
• Widescreen on three sizes, 4-in., 9-in., and 12-in. terminals.
• Greater screen resolution.
• Terminals are available with an Allen-Bradley brand marking, or with no marking for customers who want to put their own brand label on the terminal.
• Certifications including Class I, Div. 2; Class II, Div. 2; Class III; and ATEX and INMETRO Zones 2 and 22.


The 5.7-in. and 10.4-in. touch-screen terminals are shown for illustrative purposes. All other terminal sizes look similar. For information on proper mounting clamp installation, refer to the PanelView Plus 7 Standard Terminals User Manual, publication 2711P-UM007.



  Contact Best Price


Specifications:

The table below describes the parameters of the Panelview Plus 7 2711P-T12W21D8S Operator Panel Parts

Part Number : 2711P-T12W21D8S
Display Size: 12.1 inches
Display ColorAmber
Warranty: 365 days Warranty
Product Line:Panelview Plus 7
Input Type:Touchscreen
Mounting position: vertical
Communication: Ethernet and RS-232
Communication:ControlNet
Software FactoryTalk


Related Allen Bradley Panelview Plus 7 Terminals Part No. :

PanelView Plus 7 HMI Description Inventory status
2711P-T12W21D8S PanelView Plus 7 Touch Screen Panel Glass Overlay LCD Display In Stock
2711P-T12W21D8S-A PanelView Plus 7 Touch Panel Glass Front Overlay LCD Screen Available Now
2711P-T12W21D8S-B Allen Bradley Panel Plus 7 Touchscreen Protective Film LCD Display In Stock
2711P-T12W22D8S Allen Bradley Panel View Plus 7 Touch Screen Overlay Display In Stock
2711P-T12W22D8S-A PanelView Plus 7 Touch Panel Front Overlay LCD Display Screen In Stock
2711P-T12W22D8S-B PanelView Plus 7 Touch Panel Protective Film LCD Display Panel In Stock
2711P-T15C21D8S PanelView Plus 7 Touch Membrane Overlay LCD Display Repair Available Now
2711P-T15C21D8S-A Allen Bradley PanelView Plus 7 HMI Touchscreen Front Film LCD Display In Stock
2711P-T15C21D8S-B PanelView Plus 7 Touchscreen Membrane Switch Overlay LCD Screen Available Now
2711P-T15C22D8S AB Panel View Plus 7 HMI Panel Glass Overlay LCD Display In Stock
2711P-T15C22D8S-A Allen Bradley Panel View Plus 7 Touchscreen Film LCD Display In Stock
2711P-T15C22D8S-B PanelView Plus 7 Touch Glass Front Overlay LCD Display Panel In Stock
AB PanelView Plus 7 Description Inventory status

AB Panelview Plus 7 Manuals PDF Download:

  • PanelView Plus 7 HMI Standard Terminals 2711P-T12W21D8S Manuals
  • PanelView Plus 7 Allen Bradley Standard Terminals Technical Data
  • AB PanelView Plus 7 Standard Terminals 2711P-T12W21D8S User Manuals
  • PanelView Plus 7 Operator Interface Standard and Performance


  • FAQ:

    Question: What is the size of 2711P-T12W21D8S Toucshcreen Panel Glass?

    Answer:The 2711P-T12W21D8S Touch Screen Panel is 12.1-inch.


    Question: What are the ways to restart the terminal 2711P-T12W21D8S without having to disconnect and reapply power?

    Answer:
    • From FactoryTalk View ME Station Configuration Mode, tap Reset.
    • From the terminal desktop Start Menu, choose Programs>Restart System.
    • To access Maintenance Mode, follow these steps.
    a. Plug in a USB keyboard.
    b. Press and hold the white box that appears in the bottom left corner when the terminal is booting up.


    Question: How to set the PanelView Plus Standrad Terminals 2711P-T12W21D8S?

    Answer:1. Press Terminal Settings from the FactoryTalk View ME Station dialog box.
    2. Select an option by touching the up and down cursors.
    3. Press Enter to access selected function.


    Question: What is the 2711P-T12W21D8S touchscreen Panelview Plus 7 price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
