Model
2711P-T12W22D9P-BM002

Item specifics

Warranty
365 Days
Brand
Rockwell Automation Allen Bradley
Product Line
Panelview Plus 7
Supply
Panelview Plus 7 Touchscreen Panel
Size
12.1 inch
model
2711P-T12W22D9P-BM002
Parts
Touchscreen Panel Glass Protective Film

Review

Description

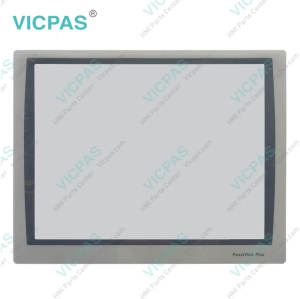

2711P-T12W22D9P-BM002 Panelview Plus 7 Touch Screen Panel, Protective Films Overlay, and LCD Display Repair Replacement

Order each part separately is available

2711P-T12W22D9P-BM002 Panelview Plus 7 Touch Screen Panel Repair Replacement

2711P-T12W22D9P-BM002 Panelview Plus 7 Protective Films Overlay Repair Replacement


All Allen Bradley PanelView Plus 7 performance terminals 2711P-T12W22D9P-BM002 have a color display with a touch screen, or touch screen and keypad, for operator control.
• Analog resistive touch screens provide accurate and durable touch control for industrial applications.
• Keypad models are similar except for the number of function keys to the left and right of the display. Larger models have more keys.


The terminal 2711P-T12W22D9P-BM002 can perform one of three actions at startup:
• Launch a FactoryTalk View Machine Edition HMI application.
• Launch FactoryTalk View Machine Edition Station in Configuration mode. This mode lets you configure terminal settings and start-up options, load applications to run, and enable or disable desktop access.
• Launch the Windows desktop.


The PanelView Plus 7 Performance terminals 2711P-T12W22D9P-BM002 use an EtherNet/IP embedded switch. These terminals communicate with ControlLogix and CompactLogix controllers over an Ethernet connection with DLR, linear, or star network topologies. The terminals can reside on EtherNet/IP networks that run integrated motion and CIP Sync™ applications without affecting performance. The terminal is not a consumer or producer of CIP Sync or motion packets.


VICPAS supply panelview Plus 7 2711P-T12W22D9P-BM002 HMI Touch Screen, Front Overlay, and LCD display Screen. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.




Specifications:

The table below describes the parameters of the Panelview Plus 7 2711P-T12W22D9P-BM002 Operator Panel Parts

Part Number : 2711P-T12W22D9P-BM002
Display Size: 12.1 inches
Display Color Amber
Warranty: 365 days Warranty
Product Line: Panelview Plus 7
Input Type: Touchscreen
Mounting position: vertical
Communication: Ethernet and RS-232
Communication: ControlNet
Software FactoryTalk


Related Allen Bradley Panelview Plus 7 Terminals Part No. :

PanelView Plus 7 HMI Description Inventory status
2711P-T12W22D9P-BM001 PanelView Plus 7 Touch Screen Panel Glass Overlay LCD Display In Stock
2711P-T12W22D9P-BM002 PanelView Plus 7 Touch Panel Glass Front Overlay LCD Screen Available Now
2711P-T12W22D9P-BM003 Allen Bradley Panel Plus 7 Touchscreen Protective Film LCD Display In Stock
2711P-T12W22D9P-BM004 Allen Bradley Panel View Plus 7 Touch Screen Overlay Display In Stock
2711P-T12W22D9P-BM005 PanelView Plus 7 Touch Panel Front Overlay LCD Display Screen In Stock
2711P-T12W22D9P-BM006 PanelView Plus 7 Touch Panel Protective Film LCD Display Panel In Stock
2711P-T12W22D9P-BM007 PanelView Plus 7 Touch Membrane Overlay LCD Display Repair Available Now
2711P-T12W22D9P-BM008 Allen Bradley PanelView Plus 7 HMI Touchscreen Front Film LCD Display In Stock
2711P-T12W22D9P-BM009 PanelView Plus 7 Touchscreen Membrane Switch Overlay LCD Screen Available Now
2711P-T12W22D9P-BM010 AB Panel View Plus 7 HMI Panel Glass Overlay LCD Display In Stock
2711P-T12W22D9P-BM011 Allen Bradley Panel View Plus 7 Touchscreen Film LCD Display In Stock
2711P-T12W22D9P-BM012 PanelView Plus 7 Touch Glass Front Overlay LCD Display Panel In Stock
2711P-T12W22D9P-BM013 PanelView Plus 7 Touchscreen Overlay LCD Display Screen Available Now
2711P-T12W22D9P-BM014 Allen Bradley PanelView Plus 7 Panel Glass Front Overlay Display In Stock
2711P-T12W22D9P-BM015 PanelView Plus 7 Touchscreen Protective Film LCD Display Panel Available Now
2711P-T12W22D9P-BM016 PanelView Plus 7 Touchscreen Overlay LCD Display Screen Available Now
AB PanelView Plus 7 Description Inventory status

AB Panelview Plus 7 Manuals PDF Download:

  • Visualization Solutions PanelView Terminals and Industrial Computers
  • Allen Bradley PanelView Plus 7 Performance Terminals Technical Data
  • AB PanelView Plus 7 2711P-T12W22D9P-BM002 Performance Terminals User Manuals
  • PanelView Plus 7 Operator Interface Standard and Performance


  • FAQ:

    Question: How to enter characters in the display area above the 2711P-T12W22D9P-BM002 keyboard?

    Answer:
    1. Select a character on the keyboard.
    • On a touch screen terminal, touch a key.
    • On a keypad terminal, press the arrow keys to navigate to a key.
    2. Press Select to copy the character to the display area.
    3. Press Enter when done to exit the keyboard.


    Question: How to enable Allen Bradley Plus 7 Performance Terminals desktop access?

    Answer:
    1. Press Terminal Settings, then choose Desktop Access Setup.
    2. To select Allow, press Desktop Access. The Enter Password dialog box opens. Each time that you change desktop access from disallow to allow, you must enter a password. The default password is ‘password’.
    3. To type the password, press Password.
    4. Press Enter.
    5. To return to Desktop Access Management, press Enter again.
    6. Press OK to exit Desktop Access Management, then Close to exit terminal settings and return to the FactoryTalk View ME Station dialog box.
    7. To access the desktop, press Exit. When desktop access is enabled, you are not required to enter a password.


    Question: What are the tips of configuring the 2711P-T12W22D9P-BM002 Ethernet ports of the terminal?

    Answer:
    1. Press Terminal Settings, then choose Networks and Communications>Network Connections>Network Adapters.
    2. To access the Ethernet link settings, press Settings.
    3. To enable or disable the ports that you want to use for your network configuration, press Ethernet Link1 and Ethernet Link2.


    Question: How to connect the operator terminal 2711P-T12W22D9P-BM002 to an AC power source?

    Answer:
    1. Verify that the wiring is not connected to a power source.
    2. Strip 7 mm (0.28 in.) of insulation from the ends of the wire.
    How to connect the operator terminal 2711P-T12W22D9P-BM002 to an AC power source?
    3. Secure the AC power wires to the marked terminals (L1 and L2N) on the terminal block.
    How to connect the operator terminal 2711P-T12W22D9P-BM002 to an AC power source?
    4. Secure the protective earth ground wire to the marked terminal on the terminal block. The protective earth terminal must be connected to a low-impedance earth ground.
    How to connect the operator terminal 2711P-T12W22D9P-BM002 to an AC power source?
    5. Apply power to the operator terminal.
