Model
VT525W000ET

Item specifics

Brand
ESA
Size
5.7 inch
Warranty
365 Days
Product Line
Touch screen terminals
Supply
VT525W Touch Screen and Overlay

Review

Description

ESA Touch Screen Protective Film VT525W VT525W000ET Touch Panel Replacement

Order each part separately is available

ESA Touchscreen Terminal VT525W VT525W000ET Touch Screen Front Overlay Replacement

VT525W 000ET with 5,7” graphic STN LCD display, 4blue levels, 16 rows by 40 characters(320 x 240), Touch-Screen, 640 KBproject, software clock, 16 KB recipes,10 mt cable

ESA VT525W Main characteristics (modeldependant): High value solution formany applications Alarms, passwords, recipes Use of Windows® fonts Importation of graphicimages in any format Moving graphic objects Serial printing Integrated Profibus-DP andCAN Integrated Ethernet 10/100

VICPAS supply ESA Touchscreen Terminal VT525W Touch Panel and Protective Film with 365 days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the ESA VT525W000ET HMI Parts.

Brand: ESA
Resolution: 320 x 240
ASP serial port1: RS232 (8 pin)
Warranty: 6-Months Warranty
Product Line: Touch Terminal
Display Type: Graphic LCD TFT
Touch Screen Matrix: 20x16

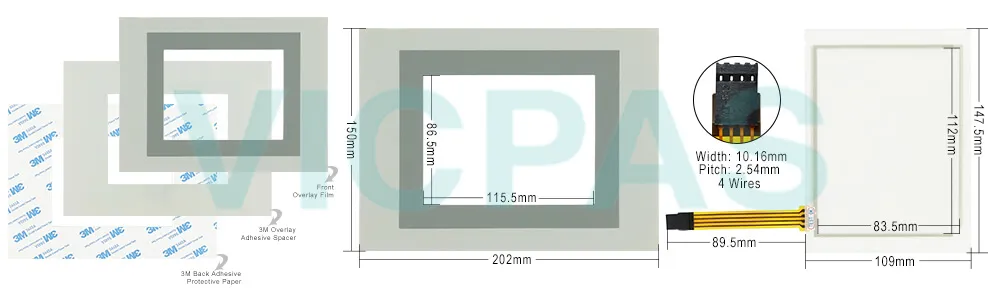

Display area size: 115,17 x 86,37 (mm)
Size: 5.7"
Part Number: VT525W000ET


Related ESA VT525W Series Part No. :

ESA VT525W Description Inventory status
VT525W00000 ESA VT525W00000 Touch Screen Protective Film In Stock
VT525W00000N ESA VT525W00000N Front Overlay Touch Screen Repair Available Now
VT525W000CN ESA Terminals VT525W000CN Touch Screen Panel Overlay Available Now
VT525W000DP ESA VT525W000DP Protective Film Touchscreen In Stock
VT525W000ET ESA VT525W000ET HMI Panel Glass Protective Film In Stock
ESA VT TEXT Description Inventory status


ESA VT525W Operator Panel HMI Manuals PDF Download:

  • ESA HMI VT Series Manuals
  • ESA VT Touchscreen Terminal datasheet pdf


  • FAQ:

    Question: How to operate the VT525W Terminal with Front Overlay touchscreen?

    Answer:To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.


    Question: What is the VT525W Termination of CAN line?

    Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
    • Make sure the device is not connected to the power supply.
    • Remove the cover.
    • Identify the jumper unit J2.
    • Position the jumper between pins 2 and 3 (line terminated).
    • Replace the back cover.
    • Reconnect the power supply.


    Question: What is ESA VT525W Touch Screen and Protective Film HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
