ESA HMI VT505W VT505W00000N Touch Screen Replacement
ESA HMI VT505W VT505W00000N Touch Screen Replacement
ESA HMI VT505W VT505W00000N Touch Screen Replacement
ESA HMI VT505W VT505W00000N Touch Screen Replacement
ESA HMI VT505W VT505W00000N Touch Screen Replacement
ESA HMI VT505W VT505W00000N Touch Screen Replacement
Model
VT505W00000N

Item specifics

Brand
ESA
Warranty
365 Days
Size
5.7 Inch
Product Line
Touch screen terminals
Supply
VT505W Touch Screen and Overlay

Review

Description

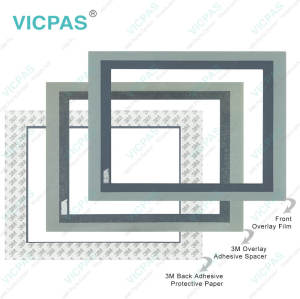

ESA Touch Screen Front Overlay VT505W VT505W00000N Touch Panel Replacement

Order each part separately is available

ESA Touchscreen Terminal VT505W VT505W00000N Touch Screen Protective Film Replacement

VT505W00000N with 5,7” graphic STN LCD display, 4blue levels, 16 rows by 40 characters(320 x 240), Touch-Screen, 640 KBproject, software clock, 16 KB recipes,10 mt cable

ESA VT505W Main characteristics (modeldependant): High value solution formany applications Alarms, passwords, recipes Use of Windows® fonts Importation of graphicimages in any format Moving graphic objects Serial printing Integrated Profibus-DP andCAN Integrated Ethernet 10/100

VICPAS supply ESA Touchscreen Terminal VT505W Front Overlay and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the ESA VT505W00000N HMI Parts.

Brand: ESA
Resolution: 320 x 240
ASP serial port1: RS232 (8 pin)
Warranty: 6-Months Warranty
Product Line: Touch Terminal
Display Type: Graphic LCD TFT
Touch Screen Matrix: 20x16
Display area size: 115,17 x 86,37 (mm)
Size: 5.7"
Part Number: VT505W00000N


Related ESA VT505W Part No. :

ESA VT505W Description Inventory status
VT505W00000AB ESA HMI VT505W VT505W00000AB Touch Panel Replacement In Stock
VT505W00000N ESA HMI VT505W VT505W00000N Touch Screen Replacement In Stock
VT505W000ET ESA Terminals HMI VT505W 000ET Touchscreen Replacement In Stock
VT505W000DP ESA Terminals HMI VT505W 000DP Touch Panel Replacement In Stock
VT505W000CN ESA Terminals HMI VT505W 000CN Touch Screen Replacement In Stock
VT505W00000 ESA Terminals HMI VT505W VT505W00000 Touchscreen Repair/td> In Stock
VT505W000000039 ESA Terminals VT505W000000039 Front Overlay Touch Panel In Stock
ESA VT TEXT Description Inventory status


ESA VT505W Operator Panel HMI Manuals PDF Download:

  • ESA HMI VT Series Manuals
  • ESA VT Touchscreen Terminal datasheet pdf


  • FAQ:

    Question: How to operate the VT505W Terminal with Front Overlay touchscreen?

    Answer:To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.


    Question: What is the VT505W Termination of CAN line?

    Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
    • Make sure the device is not connected to the power supply.
    • Remove the cover.
    • Identify the jumper unit J2.
    • Position the jumper between pins 2 and 3 (line terminated).
    • Replace the back cover.
    • Reconnect the power supply.


    Question: What is ESA VT505W Touch Screen and Protective Film HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
