Model
HCJ 015.8120.945.0

Item specifics

Brand
ESA
Size
10.4 inch
Warranty
365 Days
Product Line
Touch screen terminals
Supply
HCJ 015.8120.945.0 Touch Screen Glass

Review

Description

ESA Touch Screen HCJ 015.8120.945.0 Touch Panel Replacement

Order each part separately is available

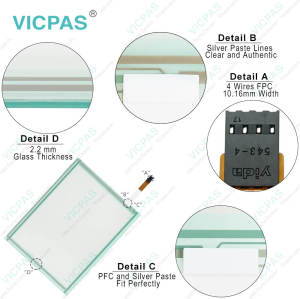

ESA Touchscreen Terminal HCJ 015.8120.945.0 Touch Screen Front Overlay Repair Replacement

HCJ 015.8120.945.0 256-Color TFT LCD640 x 480 (10.4”) Touch Screen Glass Terminal Repair Kit

HCJ 015.8120.945.0 operator terminals Main characteristics (modeldependant)::
•High resolution graphicdisplays
•Alarms, passwords, recipes
•Use of Windows® fonts)
•Importation of graphicimages in any format
•Moving graphic objects
•Double driver moves databetween two devices
•Integrated Profibus-DP andCAN


All ESA HMI contain ESA-Net: up to 32 terminals can be interconnected withoutadditional hardware. Any terminal can read information and capture datafrom any PLC or other device connected via the network.


VICPAS supply ESA Touchscreen Terminal HCJ 015.8120.945.0 Touch Panel Glass with 365 days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the ESA HCJ 015.8120.945.0 HMI Parts.

Brand: ESA
Resolution: 640x480
Backlighting: CCFL
Warranty: 6-Months Warranty
Product Line: Touch Terminal
Display Type: Graphic LCD TFT
Touch Screen Matrix: 40x30 (16x16)
Display area size: 8.30x6.20
Size: 10.4"
Part Number: HCJ 015.8120.945.0


Related ESA VT585 Part No. :

ESA VT585 Description Inventory status
VT585WBPT00 ESA Terminals HMI VT585WBPT00 Touchscreen Replacement In Stock
VT585W0PTCN ESA Terminals HMI VT585W0PTCN Touch Panel Replacement In Stock
VT585WBPTCN ESA Terminals HMI VT585WBPTCN Touch Screen Replacement In Stock
VT585WBPTDP ESA Terminals HMI VT585W BPTDP Touch Screen Replacement In Stock
VT585WBPTET ESA Terminals HMI VT585W BPTET Touch Panel Replacement In Stock
VT585CE0T100 ESA Terminals HMI VT585CE 0T100 Touchscreen Replacement In Stock
VT585CE1T100 ESA Terminals HMI VT585CE1T100 Touch Panel Replacement In Stock
VT580WAPT00 ESA Terminals HMI VT580W APT00 Protective Film Touch Panel In Stock
VT585WAPS00 ESA Terminals HMI VT585W APS00 Touch Panel Protective Film In Stock
VT585WBPT00N ESA Terminals HMI VT585W BPT00N Touchscreen Overlay Repair Available Now
VT585WBPT00N056 ESA Terminals VT585W BPT00N056 Protective Film Touch Screen In Stock
ESA VT TOUCH Description Inventory status


ESA Operator Panel HMI Manuals PDF Download:

  • ESA HMI VT Series Manuals
  • ESA VT Touchscreen Terminal datasheet pdf


  • FAQ:

    Question: How to operate the HCJ 015.8120.945.0 Terminal with Front Overlay touchscreen?

    Answer:To be able to carry out a change in any editable variable field you must touch the chosen field on the display and a page appears offering theneeded to modify the field.


    Question: What is the HCJ 015.8120.945.0 Termination of CAN line?

    Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
    • Make sure the device is not connected to the power supply.
    • Remove the cover.
    • Identify the jumper unit J2.
    • Position the jumper between pins 2 and 3 (line terminated).
    • Replace the back cover.
    • Reconnect the power supply.


    Question: What is ESA HCJ 015.8120.945.0 Touch Screen Panel HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
