Model
Schneider XBTGT2330 XBT-GT2330

Item specifics

Warranty
1 Year VICPAS Warranty
Shipping
DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Name
Schneider XBTGT2330 XBT-GT2330

Review

Description

Schneider Electric Telemecanique XBTGT2330 Touch Screen Panel repair replacement

Order each part separately is available

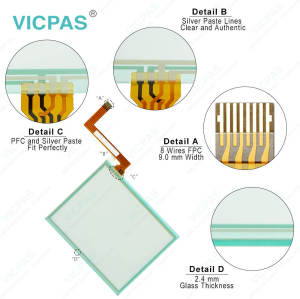

Schneider Electric Telemecanique XBTGT2330 Touch Screen Panel protective film front overlay

The XBTGT2330 touch screen panel is a Schneider Magelis XBTGT 5.7" HMI that make use of an Analogue resistive touch panel. Its dimensions are 132.2 mm long and 88.4 mm wide and the length of the cable is 55mm. Users can input and set the machine’s parameters through the 65536 colours trans-missive, thin-film transistor colour active matrix, 5.7-inch LCD display screen with a display dimension of 6.6in x 5.32in and a touch sensitive zone of 1024x1024 pixel.


The HMI Magelis XBTGT2330 has an analogue resistive surface touch and a LED backlight with a standby time of up to 50,000 hours. It has a battery-backed real-time clock with a battery lifespan of 6 years when used at a temperature below 80 °F. It also has a factory-built internal cache memory of 512 MB for storing the user settings and application parameters.


This Schneider electric Magelis XBTGT is powered using 24 VDC power. The most common series is Series A. The Magelis HMI XBTGT product line contains a group of panel-mount display units that have both keypad or touch-screen offering for the user input method. These HMI terminals are available in 3.8-inch, 5.7-inch, 7-inch, and 10-inch display sizes. They include high-speed CPU processors, high-resolution screens with long-lasting backlights utilizing LED technology, and both dynamic memory as well as high flash memory. These units also allow you to work in a wide range of networks with both Ethernet and Serial ports.



Specifications:

The table below describes the parameters of the XBTGT2330 touch screen.

Part Number : XBTGT2330
Product Line: Magelis XBTGT Series
Touchscreen Size: 5.7 in.
Warranty: 1-Year Warranty
Touch Technology: Resistive
Rated Voltage: DC 5V 1mA
Operating Temp.: -10℃~+80℃
Storage Temp.: -20℃~+70℃
lineation test: ≥1.000.000 times
Input Type: ≥100.000 times

PDF Download:

  • XBTGT2330 User Manual Product data sheet

  • Magelis XBTGT Series Part No.

    Magelis XBTGT Description Inventory status
    XBTGT1100 advanced touchscreen panel- 3.8" TFT LCD - 24 V DC In Stock
    XBTGT1105 advanced touchscreen glass- 3.8" TFT LCD  In Stock
    XBTGT1130 advanced touch panel glass- 3.8" TFT display In Stock
    XBTGT1135 advanced touch screen- 3.8"  HMI Part In Stock
    XBTGT1335 advanced touch glass- 3.8" TFT display In Stock
    XBTGT2110 Touch Screen Replacement-5.7'' In Stock
    XBTGT2120 Touch Membrane Screen-5.7'' In Stock
    XBTGT2130 Touch Panel Glass -5.7-inch HMI Parts In Stock
    XBTGT2220 Touch Screen Panel-5.7'' HMI Part In Stock
    XBTGT2930 advanced touchscreen panel- 5.7" TFT LCD - 24 V DC In Stock
    XBTGT2430 touchscreen panel- 5.7" TFT LCD display In Stock
    XBTGT4230 advanced touchscreen panel - 320 x240 QVGA - 7.5" In Stock
    XBTGT4330 Touch Screen Panel-7.5'' display In Stock
    XBTGT4340 Touch Screen Glass-7.5'' LCD Display In Stock
    XBTGT5230 Touchscreen Panel Glass-10.4'' Lcd Display In Stock
    XBTGT5330 Touch Panel Repair-10.4'' for Replacement In Stock
    XBTGT5340 Touch Glass Membrane -10.4'' for Repair In Stock
    XBTGT5430 Touch Screen Panel -10.4'' Display In Stock
    XBTGT6330 advanced touchscreen panel - 800 x 600 pixels - 12.1" In Stock
    XBTGT6340 touchscreen panel glass - 12.1" LCD Display In Stock
    XBTGT7340 Touch Screen Panel Glass-15'' HMI Parts In Stock
    Magelis XBT GT Description Inventory status

    FAQ:

    Question: Is the internal backlight replaceable?

    Answer: No, the internal backlight of XBTGT2330 is not replaceable.


    Question: Is the battery replaceable?

    Answer: No, the battery of XBTGT2330 is not replaceable.


    Question: What is the price of XBTGT2330 HMI Parts?

    Answer: Submit a quote request, send us an email for our best price.
