Membrane keypad for XBTGK5330 membrane keyboard switch
- Model
- Schneider XBTGK5330
Item specifics
- Keypad Button Material
- Metal
- Membrane Material
- Plastic
- Application
- Industry Equipment
- Place of Origin
- China
- Warranty
- 365 days
- Shipping
- 2-4 workdays
- Name
- Membrane keypad for XBTGK5330 membrane keyboard switch
Review
Description

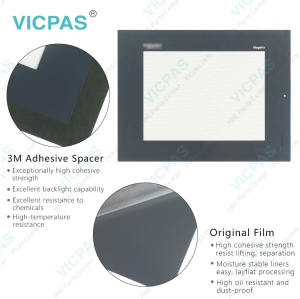

Schneider Magelis XBTGK5330 Membrane Keypad with Touchscreen for replacement
Order each part separately is available
The XBTGK5330 membrane keypad is Schneider Tesys T series Small panel with keypad. It is very simple and easy to use, ambient air temperature for operation rang between 0~55 °C. The XBTGK5330 keyboard is an operator terminal that enables the user to interface with their machine. And also, the display offers a variety of graphics on the monochrome display.
This Schneider HMI allows the user to connect using Vijeo Designer Lite, which runs on a personal computer. This ntegrated control panel connection type and Power supply: removable screw terminal block.
Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485), multidrop topology. This gasket, when used correctly, is able to form a compression type seal. You should not use any sealing compounds on this unit.
Specifications:
The table below describes the parameters of the XBTGK5330 keypad switch touchscreen.
| Part Number : | XBTGK5330 |
| Product Line: | Magelis XBT GK Series |
| Touchscreen Size: | 10.4 in. |
| Warranty: | 180 days Warranty |
| Touch Technology: | Keyboard |
| Rated Voltage: | DC 5V 1mA |
| Operating Temp.: | -10℃～+80℃ |
| Storage Temp.: | -20℃～+70℃ |
| lineation test: | ≥1.000.000 times |
| Input Type: | ≥100.000 times |
PDF Download:
Magelis XBTGK Series Part No.
| Magelis XBT GK | Description | Inventory status |
| XBTGK2120 | advanced touchscreen panel with keyboard- 5.7'' | In Stock |
| XBTGK2330 | advanced touchscreen panel with keypad-5.7'' | In Stock |
| XBTGK5330 | advanced touchpanel with keyboard- 10.4'' | In Stock |
| Schneider XBT GK | Description | Inventory status |
FAQ:
Question: Is the internal backlight replaceable?
Answer: No, the internal backlight of XBTGK5330 is not replaceable.
Question: Is the battery replaceable?
Answer: No, the battery of XBTGK5330 is not replaceable.
Question: What is the price of XBTGK5330 HMI Parts?
Answer: Submit a quote request, send us an email for our best price.
Common misspellings:
XBTGK530
XBTG5330
BXTGK5330
XBTGK3530
XBTGK533O
XB7GK5330
XBTGGK5330
