Touch screen for CP6231-0002-0040 touch panel membrane touch sensor glass replacement repair
- Model
- CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040
Item specifics
- Product Line
- CP60XX CP62XX
- LCD Type
- TFT
- Light Transmission
- Above 75%
- Supply Parts
- Membrane Keyboard Touch Screen Display
- Environment
- Free From Corrosive Gases
- Shipping Time
- 3-5 Days
Review
Description

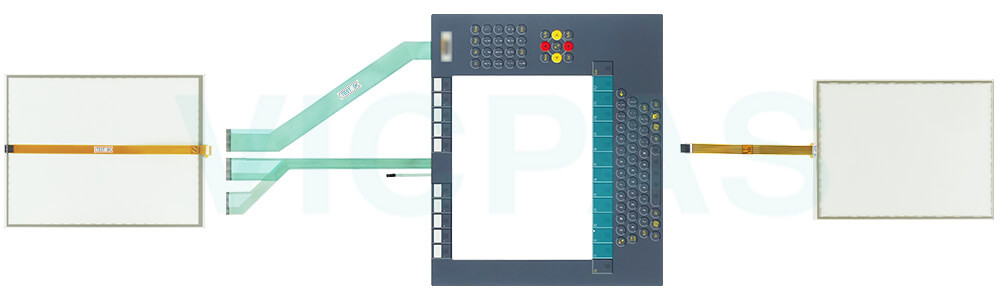

Beckhoff CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040 Touch Screen Glass Terminal Keypad Repair
Order each part separately is available
Fundamental safety instructions
• Do not use Beckhoff HMI CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040 Operator Keyboard Touch Screen Glass under extreme environmental conditions.
• Only use the device in hazardous areas if it is explicitly designed for this purpose.
• Do not carry out any work on the device while it is live. Always switch off the supply voltage for the device before mounting/replacing CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040 HMI Touch Glass Keypad Membrane or rectifying malfunctions.
• Never plug or unplug connectors during thunderstorms. There is a risk of electric shock.
• Ensure that CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040 Membrane Switch Touch Digitizer has a protective and functional earth connection.
•In the case of a 24 V DC power supply unit, fuse the power supply line according to its cross-section to protect the supply line in the event of a short circuit.
• Ensure that only trained specialists with a control and automation engineering background, operate the device or replace Beckhoff Touch Panel CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040 Touchscreen Terminal Keypad. Use by unauthorized persons can lead to damage to property and loss of data.
• In case of fire, extinguish the device with powder or nitrogen.
• If you change CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040 Touch Membrane Operator Panel Keypad and software configurations, you must keep within the specified limits of power consumption and power loss.
Specifications:
The table below describes the parameters of Beckhoff CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040 Membrane Keyboard Touch Screen Tablet.
| Light Transmission: | Above 75% |
| LCD Type: | TFT |
| Environment: | Free From Corrosive Gases |
| Cooling Method: | Natural Air Cooling |
| Brand: | Vicpas |
| Product Line: | CP60XX CP62XX |
| Warranty: | 365 Days |
| Storage Temperature: | -25 °C ... +65 °C |
| Operating Temperature: | 0 °C ... +55 °C |
| Relative Humidity: | 95% |
Related Beckhoff Part No. :
| Beckhoff HMI | Description | Inventory status |
| Beckhoff HMI | Description | Inventory status |
Beckhoff CP60XX CP62XX Manuals PDF Download:
FAQ:
Question: What should I pay attention to if I want to replace my old Beckhoff CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040 Terminal Keypad Touch Screen Film from the device?
Answer: You must first disconnect the power supply and cables from the device before starting to disassemble CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040 Touch Screen Tablet Membrane Keyboard. You can then remove it from the control cabinet.
Question: What should I do when I received the package of Beckhoff CP6231-0000-0040 CP6231-0001-0040 CP6231-0002-0040 Touch Digitizer Glass Switch Membrane?
1. Inspect the packaging for any damage that may have occurred during transit.
2. Carefully remove the packaging.
3. Keep the packaging for potential future shipping.
4. Verify that all items are included by comparing the delivery with your order.
5. Check the contents for any visible shipping damage.
6. If any items are missing or damaged, please contact VICPAS immediately.
Common misspellings:
CP6231-0001-0040CP6231-0000-0020
CP6232-0000-0040
CP6231-001-0040
CP6231-0001-040
CP6231-0010-0040
CP6213-0002-0040
CP6231-0002-0004
CP62231-0002-0040
