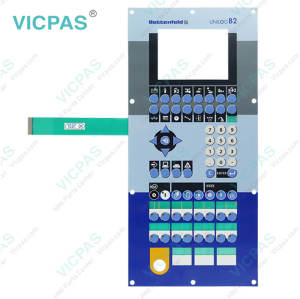

Membrane switch for 4B1210.00-590 membrane keypad keyboard
- Model
- 4B1210.00-590
Item specifics
- Brand
- B&R
- Membrane Material
- Plastic
- Model
- B&R PANELWARE 4B1210.00-590
- Warranty
- 1 Year VICPAS Warranty
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Review
Description
B&R PANELWARE 4B1210.00-590 Membrane Keypad Keyboard Repair
Order each part separately is available
The B&R COMPACT MMI P121 4B1210.00-590 communicates with the PLC over the RS232 interface. If data that the 4B1210.00-590 panel cannot understand is sent from the PLC, it is ignored. There is no error message! Basically the following information is handled by the P121 operating system:
ASCII characters (output directly to the screen)
Control characters (e.g. Cursor position)
Attribute control
Binary/ASCII conversion
Key code requests
Display and key lighting
The B and R COMPACT MMI P121 is 4B1210.00-590 equipped with a background lighting LCD display. There are three different background lighting modes:
Always off
Automatic shut-off after X minutes
Always lit
Specifications:
The table below describes the parameters of the 4B1210.00-590 B&R PANELWARE Membrane Keypad Keyboard.
| Part Number : | 4B1210.00-590 |
| Product Line: | PANELWARE |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad |
| Serial interface Type: | RS232 |
Related B&R PANELWARE Series Part No. :
| B&R PANELWARE | Description | Inventory status |
| 4B1210.00-590 | B&R PANELWARE Operator Keyboard Repair | In Stock |
| 4B1250.00-490 | PANELWARE B and R Keyboard Membrane Replacement | Available Now |
| 4B1260.00-390 | B&R PANELWARE Switch Membrane Repair | In Stock |
| 4B1260.00-490 | PANELWARE B and R HMI Terminal Keypad | Available Now |
| 4B1270.00-390 | B&R PANELWARE Keyboard Membrane Repair | In Stock |
| 4B1270.00-490 | B&R PANELWARE Membrane Keypad Keyboard | In Stock |
| 4D1165.00-490 | B&R PANELWARE Switch Membrane Repair | In Stock |
| 4D1166.00-490 | B and R PANELWARE Membrane Keypad Replacement | Available Now |
| 4D1167.00-490 | B&R PANELWARE HMI Switch Membrane Repair | Available Now |
| 4PW035.E300-01 | PANELWARE Keyboard Membrane Replacement | In Stock |
| 4PW035.E300-02 | B&R PANELWARE Membrane Keypad Keyboard | In Stock |
| B and R PANELWARE | Description | Inventory status |
B&R PANELWARE Manuals PDF Download:
FAQ:
Question:How to remove B and R PANELWARE COMPACT MMI?
Answer:
• Remove spring clips
• Remove panel
• Remove and reapply sealant before a new installation
• The mounting pins do not have to be removed
Question:How can the PANELWARE 4B1210.00-590 service life of backlights be extended?
Answer:
• Set the display brightness to the lowest value comfortable for the eyes.
• Use dark images.
• Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.
