5MP040.0381-02 B&R Mobile Panel 40 Terminal Keypad
- Model
- 5MP040.0381-02
Item specifics
- Brand
- B&R
- Size
- 3.8 inch
- Warranty
- 1 Year VICPAS Warranty
- Model
- B&R Mobile Panel 40 5MP040.0381-02
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Review
Description

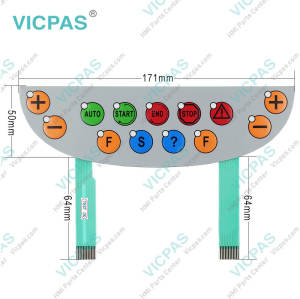

B&R Mobile Panel 40 5MP040.0381-02 Membrane Keypad Replacement
Order each part separately is available
The Mobile Panel is equipped with two enable switches that are arranged on both sides of the device. It allows both left- and right-handed operation. Both enable switches are connected in parallel and have the exact safe effect on the shared safety circuits in the attachment cable. Only one enable switch must be enabled. The enable switch consists of a three-position control element and separate evaluation electronics. An important feature is the uniform dual-circuit design that spans everything from the control elements to the connection terminals. The evaluation circuits have been implemented using various technologies and switching circuitry. The electronic design of the switching contacts means that their service life remains independent of the load up to their rated values (resistive, inductive and capacitive).
Mobile Panel MP40 5MP040.0381-02 Interfaces
• Ethernet (10/100 Mbit)
• USB host for connecting various USB flash drives (with protective cover to ensure IP65 protection when closed)
• USB client in cable duct (debug and ActiveSync device)
Specifications:
The table below describes the parameters of the 5MP040.0381-02 Mobile Panel 40 Keypad Membrane.
| Part Number : | 5MP040.0381-02 |
| Product Line: | Mobile Panel 40 |
| Screen diagonal: | 3.8 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad |
| Serial interface Type: | RS232 |
| Storage: | -20 to 60°C |
Related B&R Series Part No. :
| B&R Mobile Panel 40 | Description | Inventory status |
| 5MP040.0381-01 | B&R Mobile Panel 40 Membrane Keyboard Keypad | In Stock |
| 5MP040.0381-02 | Mobile Panel 40 Membrane Keypad Switch Replacement | Available Now |
| B and R MP40 | Description | Inventory status |
B&R Mobile Panel 40 Manuals PDF Download:
FAQ:
Question:How to upgrade B&R Mobile Panel 40 5MP040.0381-02 MTCX Firmware (MTCX FPGA, MTCX PX32)?
Answer: A current MTCX Firmware (MTCX FPGA and MTCX PX32) upgrade can be downloaded directly from the service portal on the B&R homepage (www.br-automation.com).
To carry out a firmware upgrade, the following steps should be taken:
• Create bootable media.
• Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary.
• Connect the bootable media to the Power Panel and reboot the device.
• A boot menu with the following options is displayed after booting:
Concerning item 1:
The MTCX Firmware FPGA and PX32 is automatically updated (default after 5 sec).
Concerning item 2:
Returns to the shell (MS-DOS).
• Select the desired action.
• Remove the bootable media and reboot the device (only after a successful update!).
Question:How can Mobile Panel 40 5MP040.0381-02 B&R image persistence be reduced?
Answer:
• Switch continuously between static and dynamic images.
• Prevent excessive differences in brightness between foreground and background elements.
• Use colors with similar brightness.
• Use complementary colors for subsequent images.
• Use screensavers.
Common misspellings:
MP040.0381-02
5M040.0381-02
5MP040.038l-02
5MP040.o381-02
