B&R Mobile Panel 7100 5MP7140.070N-000 Terminal Keypad Repair Replacement

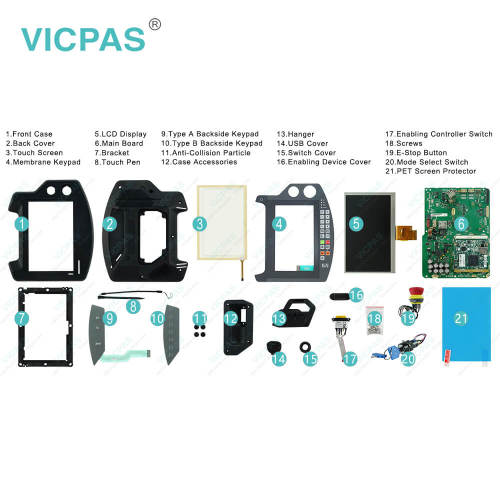

Order each part separately is available

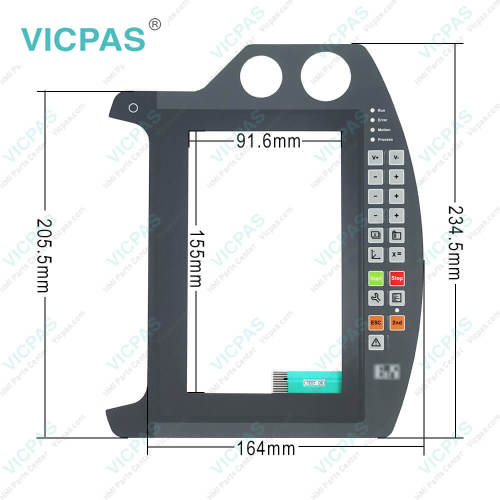

Mobile Panel 7100 Membrane Keyboard

VICPAS supply B and R Mobile Panel 7100 5MP7140.070N-000 membrane keypad keyboard for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.


The Mobile Panel is a portable operating and display device featuring a rugged design and Windows CE-compatible electronics. Equipped with a powerful processor and Ethernet, the Mobile Panel is optimally suited for many different applications. Depending on the variant, Mobile Panel devices can have a 3.8" QVGA grayscale display without a touch screen or a 6.5" VGA color display with a touch screen.


Mobile Panel devices are wired systems, i.e. they are connected to the control cabinet using a cable. The following individual components are needed for operation:
• Control device including handle
• Attachment cables



  Contact Best Price


Specifications:

The table below describes the parameters of the 5MP7140.070N-000 Mobile Panel 7100 Membrane Keypad.

Part Number : 5MP7140.070N-000
Product Line:Mobile Panel 7100
Screen diagonal7 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Keypad
Serial interface Type:RS232
Storage -20 to 60°C


Related B&R Series Part No. :

B&R Mobile Panel 7100 Description Inventory status
5MP7120.034F-000 B&R Mobile Panel 7100 Operator Keyboard Repair In Stock
5MP7121.034F-000 Mobile Panel 7100 Keyboard Membrane Replacement Available Now
5MP7140.070N-000 B&R Mobile Panel 7100 Switch Membrane Repair In Stock
5MP7150.101E-000 Mobile Panel 7100 B and R HMI Terminal Keypad Available Now
5MP7151.101E-000 Mobile Panel 7100 Keyboard Membrane Repair In Stock
5MP7151.101E-001 B&R Mobile Panel 7100 Membrane Keypad Keyboard In Stock
B and R MP7100 Description Inventory status

B&R Mobile Panel 7100 Manuals PDF Download:

  • B&R Mobile Panel 7100 User's manual

  • FAQ:

    Question: What measures can be taken against preventing after-image effect in B&R Mobile Panel 7100 5MP7140.070N-000 LCD/TFT monitors?

    Answer: There is no total solution; however, measures can be taken to significantly reduce this effect:
    • Avoid static pictures or screen content
    • Use screen savers (moving) when the display is not in use
    • Frequent picture change
    • Shut off the display when not in use
    Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.


    Question: What is the procedure of creating a bootable USB flash drive for B&R 5MP7140.070N-000 upgrade files?

    Answer:
    • Connect the USB flash drive to the PC.
    • If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh.
    • Mark the desired USB flash drive in the drive list.
    • Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action.
    • Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder....
    • In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file.
    • Click on the Start action button in the toolbar.


    Question: What is the B&R Mobile Panel 7100 5MP7140.070N-000 terminal keypad price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
