CP7002-0001-0010 Touch Membrane Replacement
- Model
- CP7002-0001-0010
Item specifics
- Product Line
- CP70XX
- LCD Type
- TFT
- Shipping Time
- 3-5 Days
- Supply Parts
- Touch Screen Monitor
- Environment
- Free From Corrosive Gases
- Size
- 15''
Review
Description

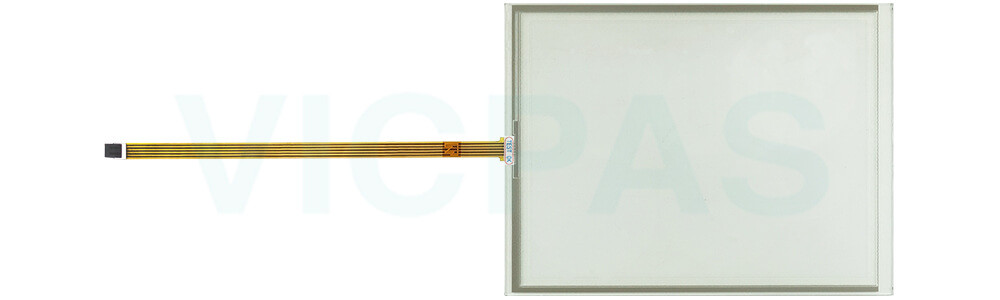

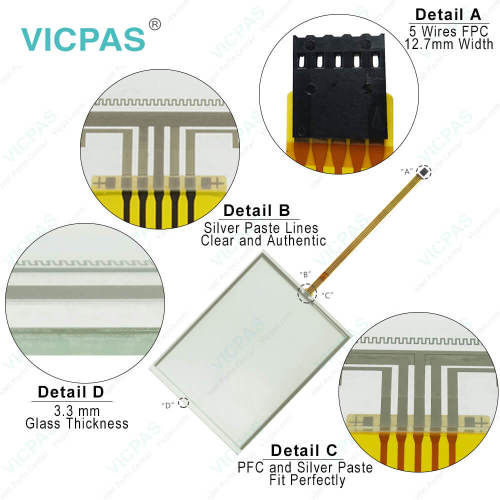

Beckhoff CP7002-0001-0010 Touch Screen Panel Replacement
Fundamental safety instructions
• Do not use Beckhoff HMI CP7002-0001-0010 Touch Screen Film under extreme environmental conditions.
• Only use the device in hazardous areas if it is explicitly designed for this purpose.
• Do not carry out any work on the device while it is live. Always switch off the supply voltage for the device before mounting/replacing CP7002-0001-0010 HMI Touch Glass or rectifying malfunctions.
• Never plug or unplug connectors during thunderstorms. There is a risk of electric shock.
• Ensure that CP7002-0001-0010 Touch Digitizer has a protective and functional earth connection.
•In the case of a 24 V DC power supply unit, fuse the power supply line according to its cross-section to protect the supply line in the event of a short circuit.
• Ensure that only trained specialists with a control and automation engineering background, operate the device or replace Beckhoff Touch Panel CP7002-0001-0010 Touchscreen. Use by unauthorized persons can lead to damage to property and loss of data.
• In case of fire, extinguish the device with powder or nitrogen.
• If you change CP7002-0001-0010 Touch Membrane and software configurations, you must keep within the specified limits of power consumption and power loss.

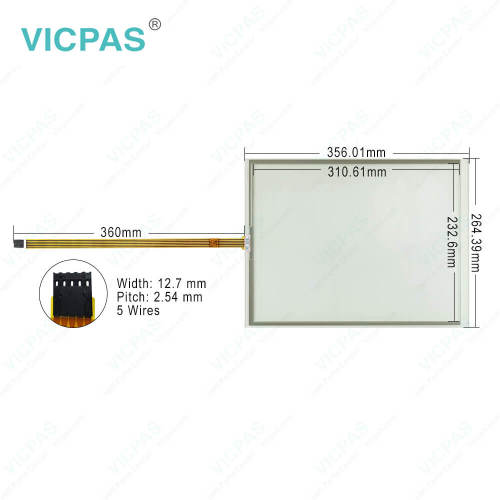

Specifications:
The table below describes the parameters of Beckhoff CP7002-0001-0010 Touch Digitizer Glass.
| Environment: | Free From Corrosive Gases |
| Light Transmission: | Above 75% |
| LCD Type: | TFT |
| Storage Temperature: | -25 °C ... +65 °C |
| Relative Humidity: | 95% |
| Operating Temperature: | 0 °C ... +55 °C |
| Warranty: | 365 Days |
| Cooling Method: | Natural Air Cooling |
| Product Line: | CP70XX |
| Brand: | Vicpas |
Related Beckhoff Part No. :
| Beckhoff HMI | Description | Inventory status |
| Beckhoff HMI | Description | Inventory status |
Beckhoff CP70XX Manuals PDF Download:
FAQ:
Question: What should I pay attention to when installing CP7002-0001-0010 HMI Touch Glass?
Answer:
• Position the Panel PC in such a way that reflections on the screen are avoided as far as possible.
• Use the position of the screen as a guide for the correct installation height; it should be optimally visible for the user at all times.
• The Panel PC should not be exposed to direct sunlight.
• When the unit is in its mounting position, the ventilation openings must not be obstructed.
• Extreme environmental conditions should be avoided as far as possible. Protect the Panel PC from dust, moisture and heat.
• The ventilation slots of the Panel PC must not be covered.
Question: How to clean the Control Panel of CP7002-0001-0010 Touch Digitizer Glass?
Answer: Switch off the Control Panel and all devices connected to it, so that keys cannot be unintentionally actuated. The front of the Control Panel can be cleaned with a soft, damp cleaning cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches.
Common misspellings:
CP7002-0001-0011CP7002-001-0010
CP70002-0001-0010
CP7002-0002-0010
CP7002-0001-0020
