CP6902-0001-0000 LCD Display Touch Screen Film Repair
- Model
- CP6902-0001-0000
Item specifics
- Product Line
- CP68XX CP69XX
- LCD Type
- TFT
- Shipping Time
- 3-5 Days
- Supply Parts
- LCD Display HMI Touch Glass
- Environment
- Free From Corrosive Gases
- Size
- 15''
Review
Description

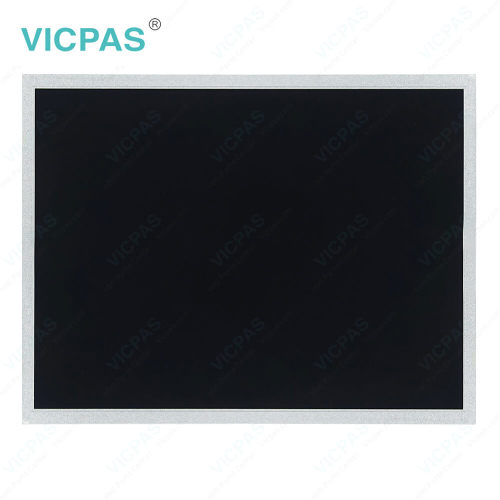

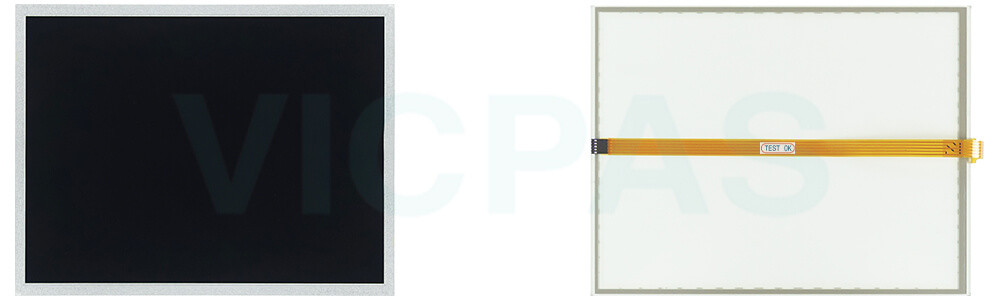

Beckhoff CP6902-0001-0000 LCD Display Touch Screen Glass Replacement
Order each part separately is available
Application conditions
• Do not replace CP6902-0001-0000 Touch Screen Display LCD Panel under extreme environmental conditions.
• Only use the device in hazardous areas if it is explicitly designed for this purpose.
• Never plug or unplug connectors during thunderstorms. There is a risk of electric shock.
• Ensure that the device has a protective and functional earth connection during replace Beckhoff HMI CP6902-0001-0000 LCD Screen Touch Panel.
Damage to property, loss of data and impairment of functions
• If you change the hardware and software configurations, you must keep within the specified limits of power consumption and power loss (please refer to the respective data sheet).
• Ensure that only trained specialists with a control and automation engineering background, replace Beckhoff Touch Screen CP6902-0001-0000 Touch Digitizer Glass LCD Display. Use by unauthorized persons can lead to damage to property and loss of data.
• In the case of a 24 V DC power supply unit, fuse the power supply line according to its cross-section to protect the supply line in the event of a short circuit.
• In case of fire, extinguish the device with powder or nitrogen.
Vicpas supplies Beckhoff CP6902-0001-0000 LCD Screen Touch Membrane with 365-day warranty and support urgent worldwide shipping.
Specifications:
The table below describes the parameters of Beckhoff CP6902-0001-0000 Touch Panel LCD Display.
| Warranty: | 365 Days |
| Relative Humidity: | 95% |
| Environment: | Free From Corrosive Gases |
| Cooling Method: | Natural Air Cooling |
| Brand: | Vicpas |
| Operating Temperature: | 0 °C ... +55 °C |
| Size: | 15'' |
| Storage Temperature: | -25 °C ... +65 °C |
| LCD Type: | TFT |
| Product Line: | CP68XX CP69XX |
Related Beckhoff Part No. :
| Beckhoff HMI | Description | Inventory status |
| Beckhoff HMI | Description | Inventory status |
Beckhoff CP68XX CP69XX Manuals PDF Download:
FAQ:
Question: How to mount the Panel PC of CP6902-0001-0000?
Answer:
Question: What should I pay attention to when installing CP6902-0001-0000 HMI Touch Glass Terminal Keypad?
Answer:
• Position the Panel PC in such a way that reflections on the screen are avoided as far as possible.
• Use the position of the screen as a guide for the correct installation height; it should be optimally visible for the user at all times.
• The Panel PC should not be exposed to direct sunlight.
• When the unit is in its mounting position, the ventilation openings must not be obstructed.
• Extreme environmental conditions should be avoided as far as possible. Protect the Panel PC from dust, moisture and heat.
• The ventilation slots of the Panel PC must not be covered.
Common misspellings:
CP69020-0001-0000CP6902-00010-0000
CP6902-0001-0001
CP6092-0001-0000
CP6902-0002-0000
