CP6203-0000-0060 CP6203-0001-0060 CP6203-0020-0060 CP6203-0021-0060 HMI Touch Glass
- Model
- CP6203-0000-0060 CP6203-0001-0060 CP6203-0020-0060 CP6203-0021-0060
Item specifics
- Product Line
- CP60XX CP62XX
- LCD Type
- TFT
- Shipping Time
- 3-5 Days
- Supply Parts
- Touch Screen Tablet
- Environment
- Free From Corrosive Gases
- Light Transmission
- Above 75%
Review
Description

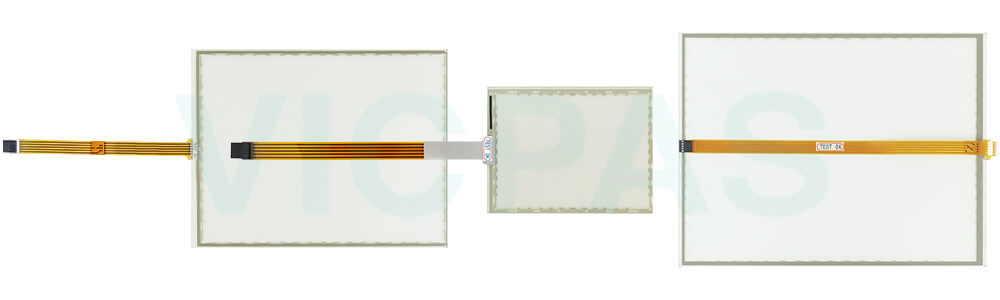

Beckhoff CP6203-0000-0060 CP6203-0001-0060 CP6203-0020-0060 CP6203-0021-0060 Touchscreen Repair
Order each part separately is available
You can clean CP6203-0000-0060 CP6203-0001-0060 CP6203-0020-0060 CP6203-0021-0060 HMI Touch Glass of the device during operation. In order to avoid inadvertent touch entries when doing this, you must first set the device to "Cleaning Mode" with the help of the Beckhoff Display Control Tool. Also make sure that you not only clean the display area, but also the edge of CP6203-0000-0060 CP6203-0001-0060 CP6203-0020-0060 CP6203-0021-0060 Touch Screen Monitor. Impurities in the edge area or liquids that do not run down the glass pane as drops but as a long short-circuit bridge create an electrically conductive connection between Beckhoff HMI CP6203-0000-0060 CP6203-0001-0060 CP6203-0020-0060 CP6203-0021-0060 Touchscreen area and the metal housing of the device. This unintentionally triggers a touch event at the edge of the touch screen, which can lead to incorrect operation.
The Beckhoff Display Control Tool does not start automatically when the device starts up. Proceed as follows to activate the "Cleaning Mode" of Beckhoff Touch Screen CP6203-0000-0060 CP6203-0001-0060 CP6203-0020-0060 CP6203-0021-0060 Touch Digitizer Glass:
1. Click the Beckhoff Display Control Tool icon to start it. When the tool is started, a small sun symbol appears in the taskbar.
2. Right-click the sun symbol.
3. Select the "Cleaning Mode". "Cleaning Mode" is activated. You can now clean the front panel.
4. You can set the duration for which the device should remain in "Cleaning Mode". The period can be set between 5 and 120 seconds. Right-click the sun symbol again and click "Options". Now select the appropriate duration.
Specifications:
The table below describes the parameters of Beckhoff CP6203-0000-0060 CP6203-0001-0060 CP6203-0020-0060 CP6203-0021-0060 Touch Screen Glass.
| Brand: | Vicpas |
| Size: | 19'' |
| Product Line: | CP60XX CP62XX |
| Cooling Method: | Natural Air Cooling |
| Operating Temperature: | 0 °C ... +55 °C |
| Environment: | Free From Corrosive Gases |
| Warranty: | 365 Days |
| Storage Temperature: | -25 °C ... +65 °C |
| Relative Humidity: | 95% |
| LCD Type: | TFT |
Related Beckhoff Part No. :
| Beckhoff HMI | Description | Inventory status |
| Beckhoff HMI | Description | Inventory status |
Beckhoff CP60XX CP62XX Manuals PDF Download:
FAQ:
Question: How to mount and disassemble arm tube installation?
Answer:
Question: How can I protect CP6203-0000-0060 CP6203-0001-0060 CP6203-0020-0060 CP6203-0021-0060 Touch Panel?
1. Use the touchscreen only with bare hands or while wearing appropriate gloves.
2. When wearing gloves, ensure they are free of hard particles such as metal shavings, glass splinters, or similar debris.
3. You can purchase a matching-size protective film from VICPAS to safeguard your touchscreen against dirt and scratches.
Common misspellings:
CP6203-000-0060CP6203-0000-00060
CP6223-0000-0060
CP6203-0003-0060
CP6203-0001-0600
CP62033-0001-0060
CP6203-002-0060
CP6203-0020-0066
CP6223-0020-0060
CP6203-0012-0060
CP6203-0021-000
CP62032-0021-0060
