Schneider ATV212HD15M3X ATV212HD15N4 Membrane Switch
Schneider ATV212HD15M3X ATV212HD15N4 Membrane Switch
Model
ATV212HD15M3X ATV212HD15N4

Item specifics

Brand
Schneider
Warranty
365 Days
Supply
ATV212HD15M3X Keyboard Membrane
Supply
ATV212HD15N4 Operator Panel Repair
Range of product
Schneider ATV212

Review

Description

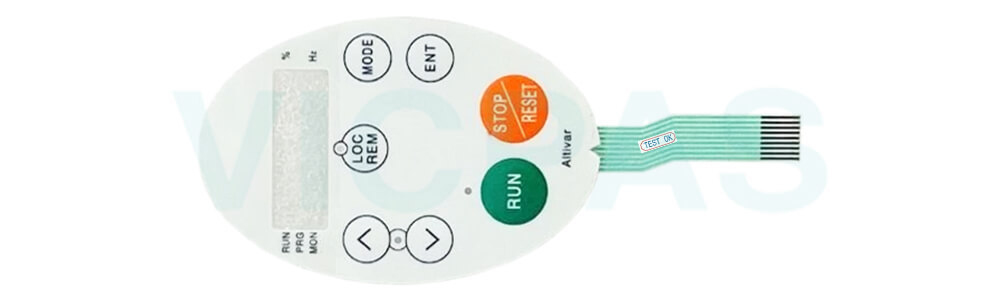

Schneider ATV212HD15M3X ATV212HD15N4 Operator Panel Keypad Repair Kit


Schneider HMI ATV212HD15M3X ATV212HD15N4 Membrane Keyboard Keypad Repair Kit

Precision Engineered for Seamless Performance
Our replacement membrane keypad offers 100% hardware and functional compatibility with Schneider Altivar 212 series drives (Models: ATV212HD15M3X and ATV212HD15N4). Designed to match the original panel layout and connection interface, the variable speed drives ATV212HD15M3X ATV212HD15N4 Keyboard Membrane supports plug-and-play installation with no firmware configuration required. Ensure smooth drive operation, quick parameter access, and status feedback – all at up to 60% lower cost compared to OEM parts. Perfect for servicing legacy drives or optimizing maintenance budgets.


Maximize Uptime, Minimize Costs
Designed for durability and long-term performance, this Altivar 212 ATV212HD15M3X ATV212HD15N4 operator keypad helps reduce downtime and extends equipment lifespan. With prompt global delivery and warranty support, it offers a dependable and cost-effective alternative to full drive replacement. Ideal for keeping fan, pump, and conveyor systems running efficiently with minimal disruption and maintenance overhead.





Specifications:

The table below describes the parameters of the Altivar 212 ATV212HD15M3X ATV212HD15N4 Switch Membrane.

Brand: Schneider
Operating Temp.: -10°C to +50°C
Storage Temp.: -25 °C to +70 °C
Relative Humidity: ≤95% non-condensing
Range Compatibility: Altivar 212
Motor Power Rating: 15 kW / 20 HP
Warranty: 365 Days Warranty
Ingress Protection: IP21 (cabinet-mounted)


Related Schneider Altivar 212 series Part No. :

Schneider Altivar 212 Description Inventory status
ATV212H075M3X Schneider Altivar 212 Operator Keyboard Repair In Stock
ATV212H075N4 Altivar 212 Schneider Membrane Keypad Keyboard In Stock
ATV212HD11M3X Schneider ATV212 Keyboard Membrane Replacement Available Now
ATV212HD11N4 ATV212 Schneider HMI Switch Membrane Repair In Stock
ATV212HD15M3X Schneider Altivar 212 Drives HMI Terminal Keypad Available Now
ATV212HD15N4 Schneider Altivar 212 Keyboard Membrane Repair In Stock
ATV212HD18M3X Schneider Terminals Membrane Keypad Keyboard In Stock
ATV212HD18N4 Schneider Altivar 212 Membrane Keypad Switch Repair In Stock
ATV212HD22M3X Altivar 212 Schneider Membrane Keypad Replacement Available Now
ATV212HD22N4 Altivar 212 Schneider HMI Switch Membrane Repair Available Now
ATV212HD22N4S Schneider Operator Keyboard Repair Replacement In Stock
ATV212HD30M3X Schneider Altivar 212 HMI Membrane Switch Repair Available Now
ATV212HD30N4 Schneider Altivar 212 Membrane Keyboard Keypad Available Now
ATV212HD37N4 Altivar 212 Drives Operator Panel Keypad Replacement In Stock
Schneider ATV212 Description Inventory status


Schneider ATV212 HMI Manuals PDF Download:

  • Altivar 212 Modbus communication manual
  • Altivar 212 Metasys N2 communication manual
  • Altivar 212 LONWORKS® communication manual
  • Altivar 212 APOGEE® FLN P1 communication manual
  • HVAC & R machine control solutions

  • FAQ:

    Question: Can I replace the keypad myself, or is professional installation required?

    Answer: The keypad is designed for plug-and-play installation. If you're familiar with basic VFD wiring and panel access, you can replace it yourself in minutes. For safety, ensure power is disconnected during replacement.


    Question: What are the common symptoms of a faulty keypad on Altivar 212 drives?

    Answer: Typical signs include unresponsive buttons, inconsistent input response, display not showing feedback, or inability to start/stop the motor via keypad. In such cases, replacing the keypad often resolves the issue without replacing the entire drive.


    Question: How can I verify the compatibility before purchase?

    Answer: Check the model label on your drive (e.g., ATV212HD15M3X or ATV212HD15N4) and ensure your existing keypad has the same pin layout and dimensions. You can also contact VICPAS support for verification using a photo.
