Model
KEBA KeTop T70-qqu-Aa0-LK 90908 02 AT-4041 Linz

Item specifics

Brand
KEBA
Warranty
365 Days
Product Line
KEBA KeTop Series
Supply
T70-qqu-Aa0-LK Membrane Keypad Touchscreen
Shipping
2-4 workdays
Touch Size
7 inch
Supply
LCD Display Screen Plastic Housing

Review

Description

KEBA KeTop T70-qqu-Aa0-LK 90908 02 AT-4041 Linz Membrane Keypad Switch HMI Panel Glass Plastic Case LCD Screen

Order each part separately is available

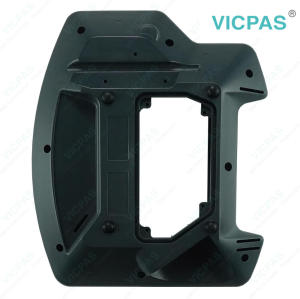

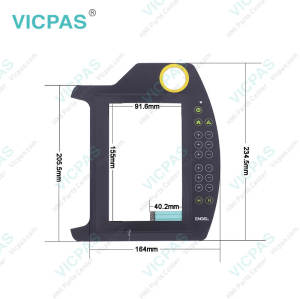

KEBA KeTop T70-qqu-Aa0-LK 90908 02 AT-4041 Linz Operator Keyboard, Touch Screen, LCD Display, Plastic Case, Main Board, Bracket, Touch Pen, Backside Keypad, Anti-Collision Particle, Case Accessories, Hanger, USB Cover, Switch Cover, Enabling Device Cover, Enabling Controller Switch, Screws, E-Stop Button, Mode Select Switch, PET Screen Protector Repair Replacement

The KEBA KeTop T70-qqu-Aa0-LK 90908 02 AT-4041 Linz Membrane Keyboard Keypad Touchscreen Panel operating panel is designed for operating and visualization tasks and for the operation on a KeControl PLC (CP).
The control can be connected to maximally one operating panel. The connection to the control occurs via the graphic interface (graphics) of the operating panel.

KEBA KeTop T70-qqu-Aa0-LK 90908 02 AT-4041 Linz HMI Panel Glass Terminal Keypad KeTops are available with three software packages: Embedded, Trend and Style.
Embedded contains only an operating system and also forms the basis for the Trend and Style versions. The Trend software package also contains a standard visualization application and the Style variant offers modern multitouch visualization.

Customizing in hardware and software
Extensive customizing can be easily implemented with the KEBA KeTop T70-qqu-Aa0-LK 90908 02 AT-4041 Linz Membrane Keyboard Keypad Touch Screen Panel devices for housings, keyboard layout and software.
In addition to machine visualizations in the customer's own design, individually designed housings and housing variants are also possible.




Specifications:

The table below describes the parameters of the KEBA KeTop T70-qqu-Aa0-LK 90908 02 AT-4041 Linz Keyboard Membrane LCD Display Screen HMI Case Touch Screen Monitor HMI Parts.

Ambient Temperature: 0°C (32°F) to 50°C (122°F)
Brand: KEBA
Part Number: T70-qqu-Aa0-LK 90908 02 AT-4041 Linz
Product Line: KEBA Ketop
Display Colors: 16 million colors
Display Type: TFT Color LCD
Power supply: 24 V DC
Warranty: 12-Month Warranty


Related KEBA Part No. :

KEBA Kemro HMI Description Inventory status
KEBA KeTop OP 420 KEBA Membrane Keyboard HMI Touch Screen Replacement In Stock
KEBA KeTop OP 430 KEBA Touch Panel Membrane Keypad Replacement Repair Available Now
KEBA KeTop OP 460 KeTop OP 460-LD/A KEBA Membrane Switch Touchscreen Panel Replacement In Stock
KEBA KeTop T100-006-CES 60567 05 KEBA Touch Screen Glass Membrane Keyboard Keypad Replacement Available Now
Keba Ketop T100-PC2 KEBA Keypad Membrane Touch Screen Panel Replacement Repair In Stock
KEBA KeTop T200-M00-P20-WES7 KEBA Touch Digitizer Terminal Keypad HMI Replacement Repair In Stock
KEBA KETOP T40-001 KEBA Operator Keyboard HMI Touch Glass Repair Replacement In Stock
KEBA KeTop T50 KEBA Keyboard Membrane Touch Digitizer Glass Repair Available Now
KEBA KeView V2 OP 450-LDU-2010 KEBA HMI Panel Glass Protective Film Replacement Available Now
Keba Keview V2 OP350C-4100 KEBA Touch Screen Monitor Switch Membrane Repair In Stock
OP 362-LD C-6006 Keview V2 91736 Rev.07 KEBA Membrane Switch Touchscreen Panel Replacement In Stock
KEBA OP331 C-4400 KEBA Touch Screen Glass Membrane Keyboard Keypad Replacement Available Now
KEBA OP430-LD KeTop OP 430-LD/A KEBA Touch Screen Panel Glass Replacmement Repair Part In Stock
Keba KeTop Terminal Description Inventory status


KEBA KeTop HMI Manuals PDF Download:

  • Kemro KeTop T70 Project Engineering Manual V1.0
  • KeTop_T70 Datasheet
  • KeTop_T70_OPC_UA_EN
  • Keba_HMI Datasheet

  • FAQ:

    Question: How to remove the KEBA KeTop T70-qqu-Aa0-LK 90908 02 AT-4041 Linz operating panel?

    Answer:
    1) Disable the power supply.
    2) Remove all electrical plugs from the operating panel.
    3) Disconnect the ground cable from the ground bolt.
    4) Loosen the mounting screws.
    The operating panel is not ready for removal from the opening.


    Question: KEBA KeTop T70-qqu-Aa0-LK 90908 02 AT-4041 Linz touchscreen responds inconsistently

    The position touched by the finger does not coincide with the cursor.

    Cause: After the driver has been installed, when calibrating the position, you didn't touch the center point vertically.

    Solution: recalibrate the center point.
