LXM05AD10M2 Motion Servo Drive Membrane Keyboard Keypad
- Model
- LXM05AD10M2
Item specifics
- Brand
- Schneider
- Warranty
- 365 Days
- Supply
- LXM05AD10M2 Membrane keypad keyboard
- Supply
- Schneider LXM05AD10M2 Terminal Keypad Replacement
- Product Line
- Schneider Lexium 05 Series
Review
Description
Schneider Lexium 05 LXM05AD10M2 Keypad Membrane Repair Part

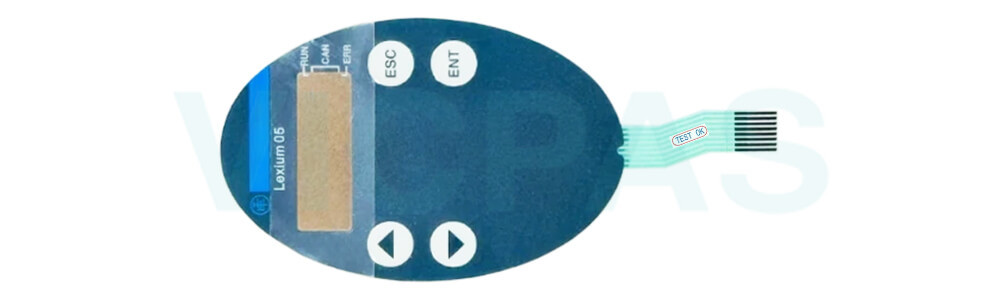

Schneider LXM05AD10M2 Operator Panel Keypad – Membrane Keyboard
VICPAS supplies high-quality membrane keypads for Schneider LXM05AD10M2 servo drives. This keypad is compatible with the Lexium 05 series and ensures accurate control and reliable operation.
Schneider LXM05AD10M2 drives feature high-performance motion control with integrated safety functions, designed for demanding servo applications. These drives include EMC-compliant design features to meet industrial noise and safety standards. In certain installations, attention should be given to leakage current when selecting protective devices such as residual current devices (RCDs).
VICPAS supplies LXM05AD10M2 Schneider Terminal Operator Keyboard with 365 Days warranty and support Urgent Worldwide Shipping. The LXM05AD10M2 Membrane Keypad Keyboard is specially developed for use with Lexium 05 servo drives, ensuring precise operation and reliable user interface performance. This drive is ideal for packaging, material handling, and other motion-intensive machinery, offering easy integration and enhanced control accuracy within a multi-axis system architecture.
Specifications:
The table below describes the parameters of the LXM05AD10M2 Schneider Membrane Keypad Switch.
| Part Number: | LXM05AD10M2 |
| Analogue Inputs: | 2 |
| Nominal Power: | 0.75 kW at 4 kHz |
| Warranty: | 365 Days Warranty |
| Supply Frequency: | 50/60 Hz - 5...5 % |
| Range of Product: | Lexium 05 |
| Operating Temp.: | 0° to +50° C |
| Storage Temp.: | -25...70 °C |
| Overvoltage Category: | III |
| Response Time: | <= 10 ms |
Related Schneider Lexium 05 Series Part No. :
| Schneider LXM05 | Description | Inventory status |
| Schneider Servo Drive | Description | Inventory status |
Schneider LXM05 HMI Manuals PDF Download:
FAQ:
Question: What are the general conditions for use of residual current devices?
Answer: Where the installation regulations require upstream protection by
means of a residual current device (residual current device, RCD), a residual current device of "Type A" can be used on a single-phase drive with connection between N and L. In all other cases, "Type B" must be used.
The following characteristics must be taken into consideration here:
• Filtering of high-frequency currents.
• Delay which can prevent triggering as a result of interference capacities which may be loaded when switching on. This delay is not possible with 30-mA protective switches. In this case, use protective switches which are not sensitive to unintentional triggering, for example a series s.i (super-immunised) residual current device with increased noise immunity (manufactured by Merlin Gerin).
If the system consists of several drives, it is necessary to use a residual current device for each drive.
Question: Is the keyboard of the LXM05AD10M2 unit replaceable?
Answer: Yes, the membrane keypad of LXM05AD10M2 can be replaceable.
