Model
6189-RDK10C

Item specifics

Brand
Rockwell Automation Allen Bradley
Product Line
VersaView CE 1000H
Size
10.4 in
model
6189-RDK10C
Parts
plastic Case keypad Protection Board LCD gasket
Warranty
365 days
Shipping
2-4 days

Review

Description

Allen Bradley 6189-RDK10C Keypad Membrane, Protection Board, LCD Screen and Front Case Repair

Order each part separately is available

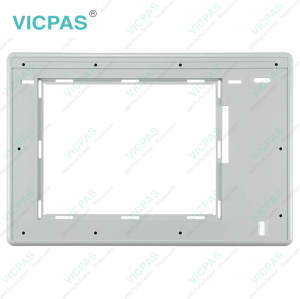

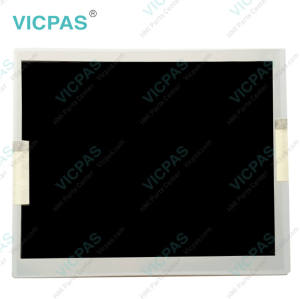

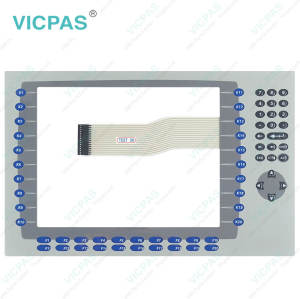

6189-RDK10C Plastic Shell Protective Panel LCD Display Membrane Keypad Gasket Mounting Clips Replacement


The Allen Bradley VersaView CE Terminals 6189-RDK10C integrates Protective Panel, Plastic Cover Body, Membrane Switch, LCD Screen, Gasket, and Mounting Clips to deliver a robust automation solution. Designed for reliability and efficiency, these models excel in critical areas:

• Extreme Durability: The reinforced Front Case and secure Mounting Clips ensure the Allen Bradley VersaView CE Terminals 6189 withstands high temperatures, humidity, and vibrations, minimizing downtime in harsh environments.

• Intuitive Operation: The Robust Protection Board and responsive Terminal Keypad on the VersaView CE Terminals 6189 simplify complex tasks, reducing errors and boosting productivity.

• Enhanced Protection: A tempered glass overlay, sealed Gasket, and scratch-resistant LCD Screen safeguard the VersaView CE 1000H Terminals from dust, moisture, and physical damage, extending service life.

• Universal Compatibility: The Allen Bradley VersaView CE 1000H 6189-RDK10C support multi-protocol communication for seamless integration with legacy systems.


VICPAS supplies precision-engineered accessories—including Protection Board, Keyboard Membrane, Front Cover, Gaskets, and Mounting Clips—optimized for the VersaView CE Terminals 6189-RDK10C. These components ensure peak performance and reduced maintenance costs, solidifying the VersaView CE Terminals 6189 1000H as a cornerstone of industrial automation.




Specifications:

The table below describes the parameters of the VersaView CE Terminals 6189-RDK10C Outer Casing LCD Switch Membrane Parts

Brand: Allen Bradley
Product Line: VersaView CE 1000H
Display Size: 10.4 inches
Storage Temperature: -25 to 70 °C
Display Color: Color
Mounting Position: vertical
Input Type: keypad
Heat Dissipation: 240 BTU/hr
Operating Temperature: 0 to 55 °C
Warranty: 365 days Warranty


Related Allen Bradley VersaView CE Terminals Part No. :

Allen Bradley 6189 HMI Description Inventory status
6189-RDT7C Allen Bradley Touch Panel Glass Front Overlay LCD Screen Plastic Case Available Now
6189-RDT7CK Allen-Bradley Touch Screen Protective Film LCD Display Plastic Cover In Stock
6189-RDT7CM Allen Bradley Touch Screen Panel Glass Overlay LCD Display Plastic Case In Stock
6189-RDK7C Allen-Bradley Membrane Keypad Switch LCD Screen Plastic Cover Body In Stock
6189-RDK7CK Allen-Bradley HMI Membrane Keyboard Keypad LCD Display Plastic Case Available Now
6189-RDB7C Allen-Bradley Touch Glass Membrane Keypad Switch LCD Screen Housing In Stock
6189-RDB7CK Allen Bradley Touch Screen Membrane Switch LCD Display Plastic Shell Available Now
6189-RDB7CM Allen-Bradley Touchscreen Operator Panel Keypad LCD Display HMI Case In Stock
6189-RDB10C Allen-Bradley Touch Panel Keypad Membrane Switch LCD Screen Enclosure In Stock
6189-RDB10CM Allen-Bradley Membrane Keyboard Touch Screen LCD Display Plastic Shell Available Now
6189-RDK10C Allen Bradley Protection Board Terminal Keypad LCD Display Outer Casing Available Now
6189-RDT10C Allen-Bradley Touch Panel Glass Overlay LCD Screen Front Cover Repair In Stock
6189-RDT10CM Allen Bradley Touch Membrane Protective Film LCD Display Panel Housing Available Now
Allen-Bradley HMI Description Inventory status

Allen Bradley 6189 Manuals PDF Download:

  • VersaView CE Terminals User Manual

  • FAQ:

    Question: What tools should be prepared when installing or replacing components?

    Answer:
    • #00, #1, and #2 Phillips screwdriver
    • Electrostatic Discharge (ESD) wristband


    Question: How to clean the Display Window?

    Answer:
    ATTENTION: Use of abrasive cleaners or solvents may damage the display. Do not scrub or use brushes.
    1. Disconnect power from the terminal at the power source.
    2. Use a clean sponge or soft cloth with a mild soap or detergent to clean the display.
    3. Dry the display with a chamois or moist cellulose sponge to avoid water spots.
    Remove Paint and Grease
    Remove fresh paint splashes and grease before drying by rubbing lightly with isopropyl alcohol (70% concentration). Afterward, wash using a mild soap or detergent. Rinse with clean water.
    Use a protective antiglare overlay for easier cleaning of the display window.
