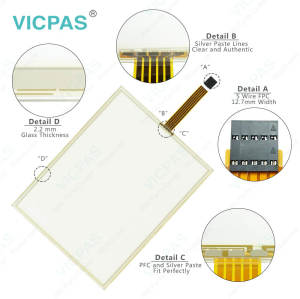

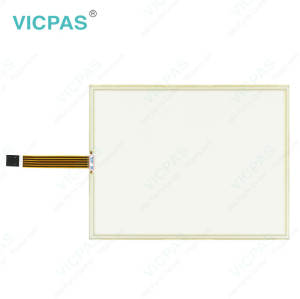

5AP1120.101E-F05 Protective Film Touch Digitizer Glass
- Model
- 5AP1120.101E-F05
Item specifics
- Touch screen panel type
- Resistance touch screen
- Size
- 10.1 inch
- Brand
- B&R
- Warranty
- 1 Year VICPAS Warranty
- Model
- B&R Automation Panel 1000 5AP1120.101E-F05
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Review
Description
B&R Automation Panel 1000 5AP1120.101E-F05 Touch Panel Protective Film Repair Replacement
Order each part separately is available
AP1000 5AP1120.101E-F05 panels form the basis for the Automation Panel 1000, Panel PC 900, Panel PC 2100, Panel PC 2200 and Panel PC 3100 system families. Different display diagonals and touch screen technologies as well as panels with touch screen and keys are available. The 5AP1120.101E-F05 panels are installed using retaining clips or clamping blocks. Panels 5AP1120.101E-F05 can only be operated as a complete system in combination with a link module (Automation Panel 1000) or CPU board and system unit (Panel PC).
5AP1120.101E-F05 Link modules have various graphics interfaces and connections. An Automation Panel 5AP1120.101E-F05 is put together by installing a link module onto a panel. Automation Panel 1000 devices with 10.4", 12.1" (4:3 format only), 15" (4:3 format only) and 19" diagonals are equipped with a front USB 2.0 interface. The 5AP1120.101E-F05 USB In interface is a USB 2.0 type B interface that is used to transfer USB data. It must be connected to a USB interface on the output device (e.g. B&R industrial PC) if DVI operation or SDL operation with a USB type A/B cable was chosen as the transfer method. If the Automation Panel 1000 5AP1120.101E-F05 interface is connected to an output device (e.g. B&R industrial PC), then USB 2.0 transfer rates are possible on the USB1 and USB2 interfaces.
Specifications:
The table below describes the parameters of the 5AP1120.101E-F05 Automation Panel 1000 Touchscreen Panel Protective Film.
| Part Number : | 5AP1120.101E-F05 |
| Product Line: | Automation Panel 1000 |
| Screen diagonal | 10.1 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 50°C |
Related Automation Panel 1000 Series Part No. :
| Automation Panel 1000 | Description | Inventory status |
| 5AP1120.0573-000 | B&R Automation Panel 1000 Front Overlay Touch Screen | In Stock |
| 5AP1151.0573-000 | B&R AP1000 Membrane Switch Touch Panel Replacement | In Stock |
| 5AP1120.0702-000 | B and R Automation Panel 1000 Touchscreen Protective Film | Available Now |
| 5AP1120.0702-I00 | B&R Automation Panel 1000 Touch Screen Glass Front Overlay | Available Now |
| 5AP1120.101E-000 | Automation Panel 1000 HMI Touch Screen Panel Protective Film | In Stock |
| 5AP1120.101E-F05 | B&R Automation Panel 1000 Front Overlay HMI Panel Glass | Available Now |
| 5AP1120.1043-000 | B&R Automation Panel 1000 Touch Digitizer Glass Front Overlay | In Stock |
| 5AP1120.1043-C01 | B&R AP1000 Front overlay Touch Screen Monitor Protective Film | In Stock |
| 5AP1120.1043-C04 | AP1000 B and R HMI Panel Glass Replacement | Available Now |
| 5AP1120.1044-C02 | B&R Automation Panel 1000 Touch Screen Monitor | In Stock |
| 5AP1125.1043-I00 | Automation Panel 1000 B and R HMI Touch Screen | Available Now |
| 5AP1125.1044-I00 | B&R Automation Panel 1000 Touch Screen Panel | In Stock |
| 5AP1180.1043-000 | B&R Automation Panel 1000 Touch Digitizer Repair | In Stock |
| B and R AP 1000 | Description | Inventory status |
B&R Automation Panel 1000 Manuals PDF Download:
FAQ:
Question: What causes Automation Panel 1000 B&R 5AP1120.101E-F05 screen burn-in?
Answer:
• Static images
• No screensaver
• Sharp transitions in contrast (e.g. black/white)
• High ambient temperatures
• Operation outside of specifications
Question:How can the B&R AP1000 5AP1120.101E-F05 service life of the backlight be extended?
Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
