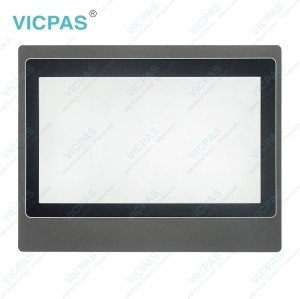

TK8070 TK8070iH Touch Screen Monitor Front Overlay
- Model
- TK8070 TK8070iH
Item specifics
- Warranty
- 365 Days
- Shipping
- 2-4 workdays
- Brand
- Weinview
- Product Line
- TK Series
- Supply Parts
- Touchscreen Protective Film
- Size
- 7''
- Touch Type
- Resistive
Review
Description
Weinview TK Series TK8070 TK8070iH HMI Touch Glass Front Overlay Repair
Order each part separately is available
Precautions on Install
Do not install HMI Weinview TK8070 TK8070iH Front Overlay HMI Touch Glass which exceeds allowed temperature. Product can be damaged or shorten the life. Especially Install environment as below should be avoided.
1. Do not Install product to the place which the ambient temperature is out of limits, from 0°C to 50°C or on the surface of control board which high pressure equipment is installed.
2. Do not install TK Series TK8070 TK8070iH Touch Screen Panel Protective Film to the place where strong shock or vibration continuously have impacted on product.
3. The space between back of product and back of control board must be more than 100mm for maintenance and ventilation.
4. Do not storage and operate in the place in direct sunlight. By the strong ultraviolet rays can degrade the quality of LCD Displays.
5. Do not strike Weinview HMI TK8070 TK8070iH HMI Touch Glass Front Overlay with a hard or pointed object (such as drill, driver, pen, etc)or press on the touch screen with too much force. It may cause malfunction of the touch panel by damaging front sheet.
6. Do not use or store in a severe vibration environment.
7. Do not allow water, liquids or foreign substances such as metal powder into TK8070 TK8070iH Protective Film Touch Membrane. It can damage products or cause malfunction by an electric shock.
Specifications:
The table below describes the parameters of the Weinview TK Series TK8070 TK8070iH Touch Screen Glass Protective Film.
| Touch Size: | 7'' |
| Display Type : | TFT LCD |
| Brand: | Weinview |
| Relative Humidity: | 10% ~ 90% |
| Constuction: | Plastic Molding Housing |
| Touch Panel: | 4-Wire Resistive |
| Light transmission: | Above 80% |
| Product Line: | TK Series |
| Warranty: | 12 Months |
| Environment: | Free From Corrosive Gases |
Related Weinview HMI No. :
| Weinview HMI | Description | Inventory status |
| TK6050iP TK6051iP TK6051IP1 | Weinview TK Series Housing Touch Digitizer LCD Overlay Replacement | In Stock |
| TK6070i | Weinview TK Series Protective Film Touch Panel Repair | Available Now |
| TK6070iH TK6070iH2WV TK6070iH3WV TK6070IK | Weinview TK Series Touch Screen Glass Front Overlay Replacement | In Stock |
| TK6070iH2EV TK6070IK3 TK6070IK 3WV | Weinview TK Series Touch Digitizer Protective Film Repair | Available Now |
| TK6070iP TK6070iP1WV TK6071iP TK6071iP1WV | Weinview TK Series LCD Protective Film Touch Membrane HMI Case Replacement | In Stock |
| TK6070IQ TK6070iQ1WV TK6071iQ TK6071iQ1WV TK6072iP | Weinview TK Series Enclosure Front Overlay LCD Touch Screen Film Repair | Available Now |
| TK6100i TK6100IV1 TK6100IV2 TK6100IV3 TK6100iV3WV | Weinview TK Series Front Overlay Touch Screen Tablet Replacement | In Stock |
| TK6100IV5 TK6100IV5WV TK6102iV5 | Weinview TK Series Touch Screen Glass Shell Cover LCD Protective Film Repair | Available Now |
| TK6100-WST10 | Weinview TK Series Front Overlay Touch Digitizer Glass Replacement | In Stock |
| TK6102 TK6102i | Weinview TK Series Touch Membrane Protective Film Replacement | In Stock |
| TK6102iV6 | Weinview TK Series Front Overlay MMI Panel Screen Repair | Available Now |
| TK8070 TK8070iH | Weinview TK Series Protective Film HMI Touch Glass Replacement | In Stock |
| TK8070i | Weinview TK Series Touch Screen Display Front Overlay Repair | Available Now |
| TK8070iP | Weinview TK Series Front Overlay Touch Screen Film Replacement | In Stock |
| TK8071iP TK8072iP | Weinview TK Series Touch Panel Shell Cover LCD Protective Film Replacement | In Stock |
| TK8100i | Weinview TK Series Protective Film Touch Screen Panel Replacement | In Stock |
| TK8100i V5WV | Weinview TK Series Touch Digitizer Glass Front Overlay Replacement | In Stock |
| Weinview HMI | Description | Inventory status |
Weinview HMI Manuals PDF Download:
FAQ:
Question: How can I protect the Weinview TK8070 TK8070iH Touch Screen Panel Front Overlay?
Answer:
• Avoid Direct Sunlight: Keep the touch screen out of prolonged exposure to direct sunlight, which can cause overheating and degrade the screen material over time.
• Moisture Protection: Ensure the device is stored in a dry environment. High humidity or condensation can lead to damage, including electrical short circuits and screen malfunction.
• Physical Protection: Avoid placing heavy objects on the screen, as pressure can damage the front overlay, leading to cracks or impairing touch sensitivity.
• Clean Properly: Use a soft, lint-free cloth for cleaning the touch screen. Do not use harsh chemicals or abrasive materials that could scratch or damage the protective film.
Question: What is the price of Weinview TK8070 TK8070iH Protective Film HMI Touch Glass?
Answer: Submit a fast quote, send VICPAS an email for best price.
