Model
GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V

Item specifics

Brand
Proface
Size
4.7 inch
Warranty
365 Days
Product Line
Proface Graphic Panel GP Series
Supply
GP270S Protective Film Touch Digitizer Housing
Shipping
2-4 workdays
Part Number
GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V

Review

Description

Proface GP GP270S GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Touch Screen Monitor Protective Film Plastic Case Cover Replacement

Order each part separately is available

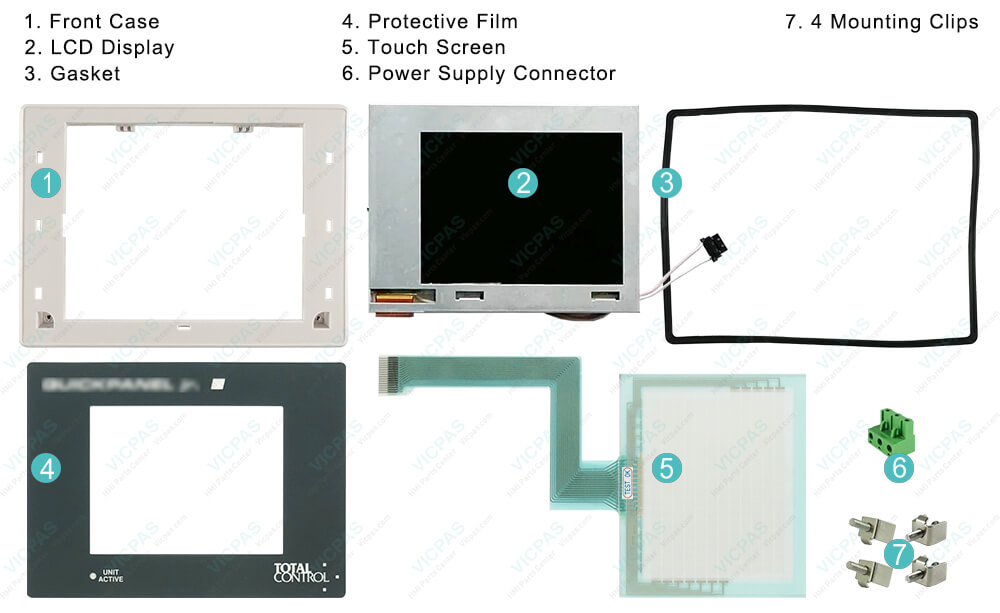

GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Plastic Case Cover:

Proface Graphic Panel GP GP270S GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Plastic Shell Enclosure Repair Replacement

Using the GP series GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V HMI Panel Glass Front Overlay Housing keep your systems as possible, even though your control programs get more and more sophisticated. The GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V touch panel graphic operator interface, GP Series GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Protective Film Touchscreen Panel Plastic Shell Terminal, is a state-of-the-arts intelligent equipment, which has been widely installed as a main operator panel throughout the manufacturing fields. You can operate production systems via numerous data and graphics displayed on the GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V screen, while reducing numbers of control programming and wiring.


GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Protective Film and Touch Screen Monitor:


Proface Graphic Panel GP GP270S GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Front Overlay Touch Screen Panel Repair Replacement

GP270 Series Monochrome & STN Color GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Touch Screen Panel Glass Protective Film Plastic Case Cover HMI Features:
• 4.7-Inch touch screen
• 320 x 240 resolution
• NEMA 4x/12 Rated
• UL, cUL Recognized Certifications
• RS-232/422 Com Port Configurable
• Supports Optional Comm. Modules
• Bar Code Reader Support
• Multi-Language Support
• 0 to 50°C Rated




Specifications:

The table below describes the parameters of the Proface Graphic Panel GP GP270S GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Front overlay Touch Membrane Enclosure HMI Parts.

Ambient Humidity: 20 to 85%RH (no condensation)
Backlight: User-replaceable CCFL
Brand: Proface
Product Line: Proface Graphic Panel
Touch Size: 4.7"
Display Colors: 8-colors
Display Type: STN LCD
Power supply: 24 V DC
Resolution: 320 x 240 pixels
Warranty: 12-Month Warranty


Related Proface Graphic Panel Series Part No. :

Pro-face GP Description Inventory status
GP270-LG11-24V Proface Graphic Panel GP270L HMI Touch Screen Glass Protective Film Shell Available Now
GP270-LG21-24VP Proface Graphic Panel GP270L Touch Screen Panel Front Overlay HMI Case Repair In Stock
GP270-LG31-24V Pro-face Graphic Panel GP270L Front Overlay Touch Membrane Enclosure In Stock
GP270-SC11-24V Proface Graphic Panel GP270S Touch Glass Front Overlay Plastic Cover Repair In Stock
GP270-SC21-24VP Proface Graphic Panel GP270S Touch Digitizer Glass Overlay Case Body Repair Available Now
GP270-SC31-24V Pro-face Graphic Panel GP270S HMI Panel Glass Protective Film Plastic Case Available Now
GP270-SG11-24V Proface Graphic Panel GP270S Touch Screen Monitor Front Overlay Plastic Shell In Stock
GP270-SG21-24VP Proface Graphic Panel GP270S MMI Touch Screen Front Overlay Housing In Stock
GP270-SG31-24V Proface Graphic Panel GP270S HMI Touch Screen Protective Film Enclosure Available Now
Proface GP Description Inventory status


Proface Graphic Panel Series HMI Manuals PDF Download:

  • Pro-Face GP Series Manual
  • Pro-Face GP270 series Manual
  • Proface GP270-MM11-ENGb PDF

  • FAQ:

    Question: How to change the GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Touch Panel Front overlay Enclosure Backlight?

    Cause: Change the GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Touch Glass Protective Film Housing Backlight following the steps below. Be sure to use gloves.
    1) Turn off the GP GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V's power supply.
    2) Detach the GP GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V's power cord terminals. (A)
    3) Use a screwdriver to unfasten the GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V case's top face attachment screws. (B)
    4) Open the GP GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V's rear cover, and detach the GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Touch Screen Monitor Front Overlay Plastic Shell backlight power connector. (C)
    5) Push the GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Protective Film Panel Glass Plastic Case Cover backlight lock tab to the right and pull out the GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Front Overlay Touch Membrane Plastic Cover backlight. (D)
    6) Insert a new backlight, and re-attach the power connector.
    7) Use the GP's guide tabs to re-attach the GP GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V's rear cover and tighten the attachment screws. Be careful not to pinch any of the connector wiring between the GP GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V's front and the rear covers. (E)
    How to change the GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V Touch Panel Front overlay Enclosure Backlight?


    Question: How to replace the Data Transfer Cable's Moisture Resistant Gasket?

    Cause: This small gasket provides a seal around the Data Transfer Cable and prevents water and dirt from entering the GP GP270-SG11-24V GP270-SG21-24VP GP270-SG31-24V's case.
    How to replace the Data Transfer Cable's Moisture Resistant Gasket?
