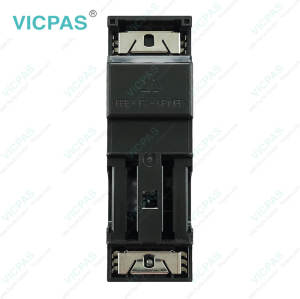

6ES7331-7HF01-0AB0 6ES7331-7KB02-0AB0 S7 300 Cover Body

Analog input module SM 331; AI 8 x 14 Bit High Speed; isochrone; 6ES7331-7HF01-0AB0 Enclosure Properties
• 8 inputs in 4 channel groups
• Measurement type programmable for each channel group:
– Voltage
– Current
• Programmable resolution for each group (13 bits + sign)
• Any measuring range per channel group
• Programmable diagnostics and diagnostic interrupt
• Programmable limit value monitoring for 2 channels
• Programmable hardware interrupt when limit is exceeded
• High-speed update of measured values
• Supports isochronous mode
• Electrical isolation from the CPU
• Electrically isolated from load voltage (not for 2-wire transducers)

Analog input module SM 331; AI 2 x 12 Bit; (6ES7331-7KB02-0AB0 Plastic Shell) Properties
• Two inputs in one channel group
• Programmable measurement type for each channel group
– Voltage
– Current
– Resistance
– Temperature
• Programmable resolution at each channel group (9/12/14 bits + sign)
• Any measuring range selection per channel group
• Programmable diagnostics and diagnostic interrupt
• Programmable limit value monitoring for one channel
• Programmable hardware interrupt when limit is exceeded
• Electrically isolated from the CPU and load voltage (not for 2DMU)

The S7-300 6ES7 331-7HF01-0AB0 6ES7 331-7KB02-0AB0 Module HMI Case, for example, must not be used without taking additional measures:
 in locations exposed to a high degree of ionizing radiation
 in hostile environments caused, for instance, by
– dust accumulation
– corrosive vapors or gases
– strong electric or magnetic fields
 in installations requiring special monitoring, for example
– elevators
– electrical installations in particularly hazardous areas
An additional measure might be, for instance, installation of the S7-300 6ES73317HF010AB0 6ES73317KB020AB0 Plastic Case in a cabinet or in a housing.
