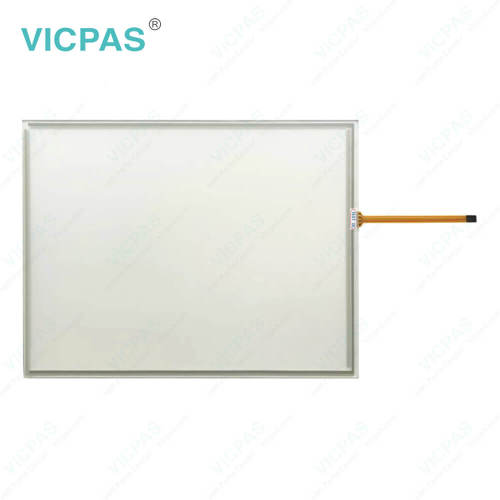

Fujitsu N010-0554-T352 N010-0554-T504 Touch Panel
Fujitsu N010-0554-T352 N010-0554-T504 Touch Panel
Fujitsu N010-0554-T352 N010-0554-T504 Touch Panel
Fujitsu N010-0554-T352 N010-0554-T504 Touch Panel
Fujitsu N010-0554-T352 N010-0554-T504 Touch Panel
Fujitsu N010-0554-T352 N010-0554-T504 Touch Panel
Model
N010-0554-T352 N010-0554-T504

Item specifics

Touch screen panel type
Resistance touch screen
Shipping
2-4 workdays
Warranty
365 Days
Brand
Fujitsu Touch Screen
Supply Parts
N010-0554-T352 N010-0554-T504
Display Size
8.4 / 10.4 inch

Review

Description

Fujitsu N010-0554-T352 N010-0554-T504 HMI Panel Glass Replacement Repair


Fujitsu N010-0554-T352 N010-0554-T504 Touch Screen Panel Replacement

VICPAS supply Fujitsu N010-0554-T352 N010-0554-T504 touch panel glass with 365 days warranty and support Urgent Worldwide Shipping. The details below indicate the recommended mounting structure for Fujitsu N010-0554-T352 N010-0554-T504 panel and enclosure. The enclosure support to fix the Fujitsu N010-0554-T352 N010-0554-T504 touch panel must be over 1.0mm I width and must be outside the view (Transparent area). Also ensure that the enclosure does not cause miss input by touching the view area.


The following diagram shows that the enclosure edge must be between the View area and the guaranteed active area. Ensure space is allocated for the diodes, and we recommend that the material to fix the N010-0554-T352 N010-0554-T504 panel and enclosure is elastic. Special design would be required to stop water ingress. The corners of the Fujitsu N010-0554-T352 N010-0554-T504 touch panel are conductive so do not touch any metal parts after mounting.





Specifications:

The table below describes the parameters of the Fujitsu N010-0554-T352 N010-0554-T504 HMI Touch Membrane.

Brand: FUJITSU
Warranty: 1-Year Warranty
Number of Touches: Single
Storage Temperature: -20˚C to 70˚C
Operating Temperature: -5˚C to 60˚C
Product Line: Fujitsu Touch Panel
Tail Options: FPC tail
Response time: ≦ 30ms
Storage Humidity: 10% to 90% RH
Operating Humidity: 20% to 85% RH


Related Fujitsu Touch Screen HMI Part No. :

Fujitsu Touch Screen Description Inventory status
N010-0554-T241A Fujitsu Touch Screen Glass Replacement In Stock
N010-0554-T303 Fujitsu Touchscreen Panel Replacement Available Now
N010-0554-T303A FUJITSU HMI Panel Glass Repair Part Available Now
N010-0554-T308A Fujitsu HMI Touchscreen Repair Part In Stock
N010-0554-T341 Fujitsu HMI Touch Screen Glass Repair Available Now
N010-0554-T347 Fujitsu Touch Screen Panel Replacement In Stock
N010-0554-T347A Fujitsu Touch Membrane Replacement In Stock
N010-0554-T348 Fujitsu HMI Touch Glass Replacement In Stock
N010-0554-T351 Fujitsu HMI Panel Glass Replacement Available Now
N010-0554-T351A Fujitsu Touch Digitizer Glass Repair Available Now
N010-0554-T352 Fujitsu Touch Screen Monitor Repair In Stock
N010-0554-T352A Fujitsu HMI Touch Panel Replacement Available Now
N010-0554-T501 Fujitsu HMI Touchscreen Repair Part In Stock
Fujitsu Touch Panel Description Inventory status

Fujitsu Touch Screen Panel Manuals Download:

  • Fujitsu N010-0554-T352 PDF
  • Fujitsu N010-0554-T501 PDF
  • Fujitsu N010-0554-T504 PDF
  • Fujitsu 4_wire_standard Data Sheet
