Model
HMIST6500 HMISTW6500

Item specifics

Brand
Schneider
Warranty
365 Days
Product Line
Schneider Harmony ST6 & STW6 series
Supply
HMIST6500 HMISTW6500 HMI Touch Glass Ovelay
Size
10 inch
Model
Harmony ST6 & STW6 HMIST6500 HMISTW6500

Product review

Description

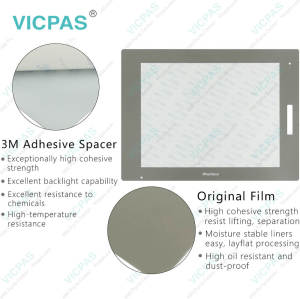

Schneider Harmony ST6 & STW6 HMI HMIST6500 HMISTW6500 Touch Screen Monitor Protective Film Repair Part

Order each part separately is available

Schneider Harmony ST6 & STW6 HMI HMIST6500 HMISTW6500 Touch Screen Monitor Protective Film Repair Kit

VICPAS supply HMIST6500 HMISTW6500 Schneider Harmony ST6 & STW6 Protective Film and Touch screen panel glass with 365 Days warranty and support Urgent Worldwide Shipping.


When applying and installing this HMIST6500 HMISTW6500 Touch digitizer glass front overlay product, it is important that steps are taken to eliminate any pressure difference between the inside and the outside of the enclosure in which this HMIST6500 HMISTW6500 Front Overlay HMI Panel Glass product is mounted. Higher pressure inside the enclosure can cause delamination of the front membrane of the HMIST6500 HMISTW6500 display. Even a small pressure difference inside the enclosure will act on the large area of the membrane and can result in sufficient force to delaminate the membrane and thus cause failure of the HMIST6500 HMISTW6500 touch capability. Pressure differences can often occur in applications where there are multiple fans and ventilators moving air at different rates in different rooms. Please follow these techniques to ensure that this product's function is not impacted by this mis-application:
1. Seal all conduit connections inside of the enclosure, especially those that lead to other rooms that may be at a different pressure.
2. Where applicable, install a small weep hole at the bottom of the enclosure to allow equalization of the internal and external pressure.





Specifications:

The table below describes the parameters of the HMIST6500 HMISTW6500 Harmony ST6 & STW6 Schneider Front Overlay Touch Screen.

Part Number: HMIST6500 HMISTW6500
Display device: Colour TFT LCD
Screen diagonal: 10 inch
Warranty: 365 Days
Product Line: Harmony ST6&STW6
Rated Voltage: 24 V DC (+/- 20 %)
Operating Temp.: 0…50 °C
Storage Temp.: -20…60 °C
Operating altitude: 2000 m
Display colour: 16 million colours


Related Schneider Harmony ST6 & STW6 Series Part No. :

Harmony ST6 & STW6 Description Inventory status
HMIST6200 Schneider Harmony ST6 Touch Screen Protective Film Repair In Stock
HMIST6400 Harmony ST6 Schneider Touch Panel Protective Film Replacement Available Now
HMIST6500 Schneider Harmony ST6 Touchscreen Protective Film Repair In Stock
HMIST6600 Harmony ST6 Schneider HMI Touch Screen Glass Protective Film Available Now
HMIST6700 Schneider Harmony ST6 Touch Screen Panel Front Overlay Repair In Stock
HMISTW6200 Schneider Harmony STW6 Front Overlay Touch Membrane In Stock
HMISTM6200 Schneider Harmony STW6 HMI Touch Glass Front Overlay Repair In Stock
HMISTW6400 Schneider Harmony STW6 Touch Digitizer Glass Overlay Repair Available Now
HMISTM6400 Schneider Harmony STW6 HMI Panel Glass Protective Film Available Now
HMISTW6500 Harmony STW6 Touch Screen Monitor Front Overlay Replacement In Stock
HMISTW6600 Schneider Harmony STW6 MMI Touch Screen Front Overlay In Stock
HMISTW6700 Schneider Harmony STW6 HMI Touch Screen Protective Film In Stock
Harmony ST6 & STW6 Description Inventory status


Schneider Harmony ST6&STW6 HMI Manuals PDF Download:

  • Schneider Harmony ST6_HMIST6500 Datasheet
  • Schneider Harmony ST6_HMISTW6500 Data Sheet
  • Harmony ST6 User Manual
  • Harmony ST6 High-resolution and cost-efficient basic HMI Catalog

  • FAQ:

    Question: What is the size of HMIST6500 HMISTW6500 Protective Film HMI Panel Glass?

    Answer: The Schneider Terminal HMIST6500 HMISTW6500 Touch Screen Monitor Front Overlay is 10.1-inch.


    Question: How to replace the HMIST6500 HMISTW6500 Backlight?

    Answer:Not user replaceable. When replacement is required, contact your local distributor.
