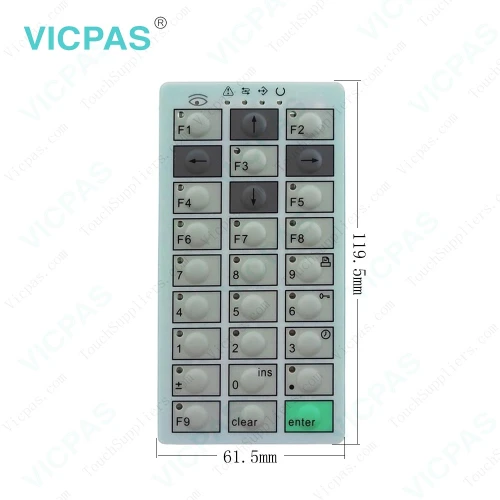

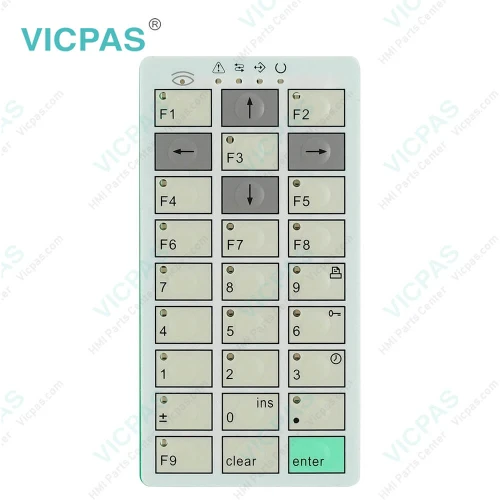

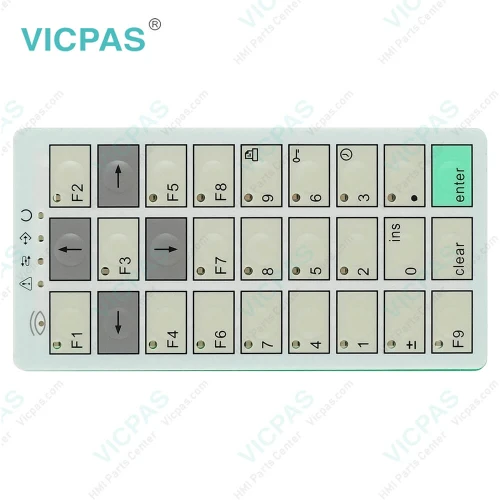

UniOP eTOP ePALM10 series HMI ePALM10-0062 Membrane Keyboard Keypad Repair


UniOP ePALM10 series HMI ePALM10-0062 Keyboard Membrane Repair Kit

VICPAS supply ePALM10-0062 Terminal Keypad UniOP ePALM10 Operator Keyboard with 365 Days warranty and support Urgent Worldwide Shipping. The ePALM10-0062 Keyboard Membrane is a state-of-the-art handheld HMI device with a graphic display and a keypad. The rugged polyamide enclosure offers a high level of shock and environmental resistance making the ePALM the ideal choice for use in the factory floor.


ePALM10-0062 Keypad Membrane HMI Features:
• Graphical display 120x64 pixels (up to 8 lines 20 characters)
• Highly visible transflective LCD display
• 27-keys keypad with tactile feedback
• Connection to industrial bus systems
• Large memory size (512 KB Flash)
• IP65 protection
• Includes Emergency Stop button
• Includes enabling switches, normal or 3 positions
• Available in version for connection to Ethernet and Profibus DP





Specifications:

The table below describes the parameters of the ePALM10-0062 UniOP ePALM10 Operator Keyboard.

Part Number: ePALM10-0062
Backlight: LED
Function Keys: 9
System Keys: 18
Warranty: 365 Days
Input Power: 24VDC (+10%, -15%)
Operating Temperature: 0 to 50 °C
Storage Temperature: -20 to +70 °C
Resolution: 120x64 pixel
Product Line: UniOP ePALM10 series


Related UniOP ePALM10 Series Part No. :

UniOP ePALM10 Description Inventory status
ePALM10-0061 HMI Operator Panel Keypad Exor UniOP ePALM10 Available Now
ePALM10-0062 Exor UniOP ePALM10 Operator Keyboard In Stock
ePALM10-0066 UniOP ePALM10 Keyboard Membrane Repair Kit Available Now
ePALM10-0067 UniOP ePALM10 Keypad Membrane Replacement In Stock
ePALM10-0068 Switch Membrane ePALM10 Replacement Repair Available Now
ePALM10-0069 Exor UniOP ePALM10 Terminal Keypad In Stock
ePALM10-3P61 UniOP ePALM10 Membrane Keyboard Keypad In Stock
ePALM10-3P62 UniOP ePALM10 Membrane Keypad Repair Kit Available Now
ePALM10-9860 UniOP ePALM10 Operator Keyboard Replacement In Stock
Exor UniOP Description Inventory status


Exor UniOP HMI Manuals PDF Download:

  • ePALM10 Product Manual
  • ePALM10 Installation Guide User Manuals
  • UniOP ePALM10 -Specsheet
  • UniOP ePALM10 User Manuals

  • FAQ:

    Question: What is the ePALM10-0062 UniOP eTOP Membrane Keyboard Keypad price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Question: How to cleaning ePALM10-0062 IHM faceplates?

    Answer: The equipment must be cleaned only with a soft cloth and neutral soap product. Do not use solvents.

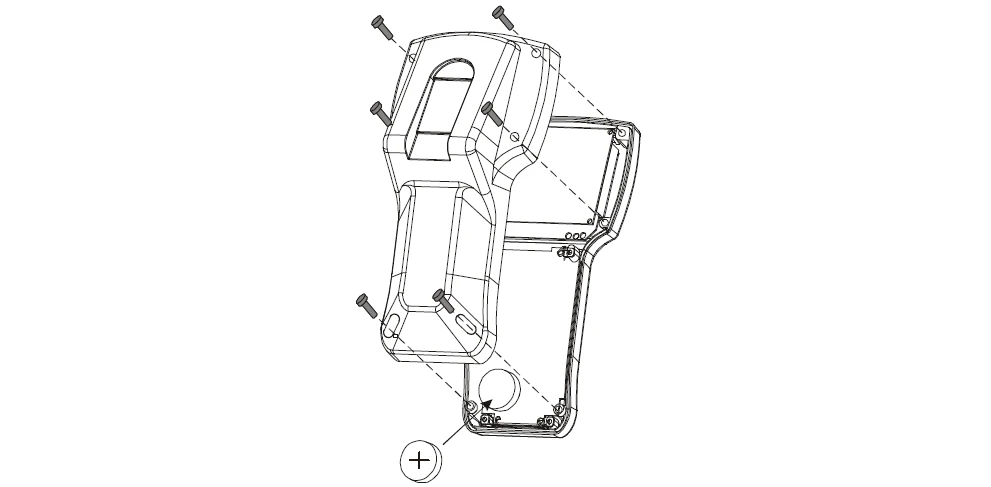

    Question: How to replace the battery of ePALM10-0062?

    Answer: To replace the battery follow the procedure listed below:

  • 1) turn off the power to the device
  • 2) using a screwdriver loose the 6 screws securing the plastic enclosure
  • 3) open the handheld; the battery is located on the CPU subsystem
  • 4) remove the battery
  • 5) replace the battery with a new one
  • 6) close the handheld and tighten the six screws
  • 7) apply power to the handheld and check that the battery good status is reported.
  • How to replace the battery of ePALM10-0062?
