Model
GT1585-STBA

Item specifics

Brand
Mitsubishi
Warranty
365 Days
Product Line
Mitsubishi GOT1000 GT15 series
Supply
GT1585-STBA HMI Panel Glass Overlay
Size
12.1 inch
Model
GT1585-STBA

Review

Description

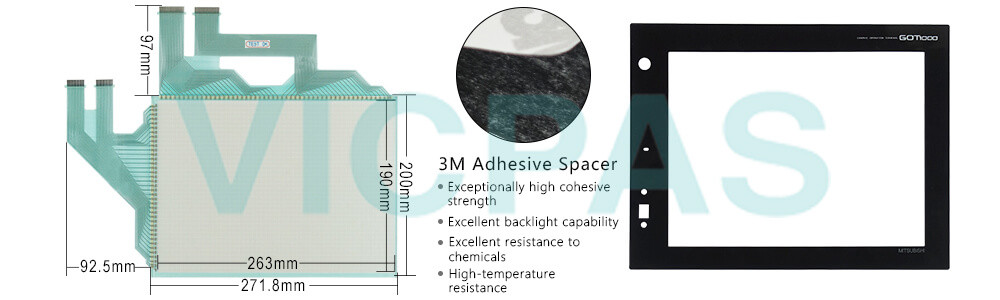

Mitsubishi GOT1000 GT15 series HMI GT1585-STBA HMI Touch Glass Front overlay Repair Kit.

Order each part separately is available

Mitsubishi GT15 series HMI GT1585-STBA Touch Screen Monitor Front overlay Repair Kit

The Mitsubishi GT15 series HMI GT1585-STBA Touch Screen Hmi Overlay uses SQL statements to directly transmit data from the connected industrial devices to a database server. The communication with the database is configured in GT Works3 without any programming. There is no need for a gateway computer or complex programming to communicate with the MES database server.


With high-speed control and convenience fully assured, Mitsubishi GT15 series HMI GT1585-STBA Touch Digitizer and Front overlay controllers compatible with the iQ Platform and the GOT1000 are the keys to higher productivity at lower cost. PLCs, motion controllers, CNCs, robot controllers, and C controllers are integrated into one as controllers compatible with the iQ Platform. The GOT1000 integrates different types of monitor units that were previously connected to each controller


During the servo amplifier/test operation, when the communication between the GOT1000 GT1585-STBA and the servo amplifier is interrupted for 0.5[ms] or more, the servo amplifier decelerates, stops, and then gets into the servo lock status. During the servo amplifier/test operation, continue the communication constantly by monitoring the status display of the servo amplifier on the GOT1000 GT1585-STBA screen, etc.




  Contact Best Price


Specifications:

The table below describes the parameters of the GT1585-STBA Mitsubishi GT15 Touch Glass Overlay.

Part Number: GT1585-STBA
Display device:TFT color LCD
Screen diagonal: 12.1 in
Warranty: 365 Days
Product Line:Mitsubishi GT15 Series
Input Power:100 to 240VAC (+10%, -15%)
Operating Temperature: 0 to 55°C
Resolution:SVGA: 800 × 600 [dots]
Storage Temperature:-20°C to 60°C
Cooling Method: Self-cooling


Related Mitsubishi GT15 Series Part No. :

Mitsubishi GOT1000 Description Inventory status
GT1575-VTBA Mitsubishi GOT1000 Touch Screen Monitor Overlay Repair In Stock
GT1575-VTBD Touch Screen Protective Film Mitsubishi GOT1000 GT15 Available Now
GT1575V-VTBA Mitsubishi GT15 Touch Screen Glass Front Overlay In Stock
GT1575V-VTBD Mitsubishi GOT1000 GT15 Touch Protective Film In Stock
GT1585-STBA Mitsubishi GT15 Touch Screen Overlay Replacement In Stock
GT1585-STBD HMI Panel Glass Overlay GOT1000 GT15 Repair Available Now
GT1585V-STBA Mitsubishi GOT1000 Front Overlay Touch Panel Glass In Stock
GT1585V-STBD Mitsubishi GOT1000 Touch Screen Protective Film Repair Available Now
GT1595-XTBA Mitsubishi GT15 Touch Digitizer Protective Film In Stock
GT1595-XTBD HMI Panel Glass Overlay GOT1000 GT15 Repair Available Now
GT15-J71E71-100 Mitsubishi GT15 HMI Panel Glass Front Overlay In Stock
GT15-J71E71-100-U Mitsubishi GOT1000 GT15 Touch Protective Film In Stock
Mitsubishi GT15 HMI Description Inventory status


Mitsubishi GOT1000 Series HMI Manuals PDF Download:

  • Mitsubishi Graphic Operation Terminal GOT1000 Series Manual
  • Mitsubishi GOT1000 Hmi Catalogue Manual
  • Mitsubishi Electric Corporation GOT1000 Cable Diagram
  • Mitsubishi GOT1000 GT15 General Description

  • FAQ:

    Question: What is the size of GT1585-STBA Touch Screen Panel Glass?

    Answer: The Mitsubishi GOT1000 GT15 GT1585-STBA touch panel is 12.1-inch.


    Question: How to installing and removing procedures of the GOT1000 GT1585-STBA CF card?

    Answer: Install/remove the CF card with the power supply of GOT is OFF or CF card access switch is "OFF".

  • 1. Installing
  • 1) Turn the CF card access switch of the GOT off.
    How to installing and removing procedures of the GOT1000 GT1585-STBA CF card?
  • 2) Open the cover of the CF card interface.
    Insert and install the CF card into the CF card interface with its front side outside.
  • How to installing and removing procedures of the GOT1000 GT1585-STBA CF card?
  • 3) Close the cover of the CF card interface. Set the CF card access switch to "ON".
    How to installing and removing procedures of the GOT1000 GT1585-STBA CF card?
    2. Removing
    1) Set the CF card access switch of the GOT to "OFF", and make sure that the CF card access LED turns off. (When the CF card access LED turns off, the CF card can be removed even during the GOT power on.)
  • How to installing and removing procedures of the GOT1000 GT1585-STBA CF card?
    2) Open the cover of the CF card interface.
    Push the CF card eject button of the GOT.
    (The CF card eject button is pulled out after pushing at once.)
    How to installing and removing procedures of the GOT1000 GT1585-STBA CF card?
  • 3) Push the CF card eject button of the GOT to lift the CF card and remove it.
    How to installing and removing procedures of the GOT1000 GT1585-STBA CF card?
