B&R 4PP252.1043-75 Keypad Membrane Repair
- Model
- 4PP252.1043-75
Item specifics
- Brand
- B&R
- Size
- 10.4 inch
- Warranty
- 1 Year VICPAS Warranty
- Model
- B&R Power Panel 200 4PP252.1043-75
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Review
Description

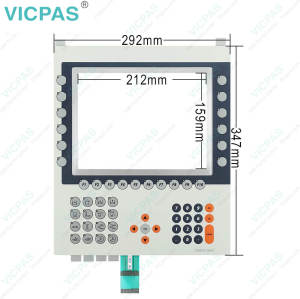

B&R Power Panel 200 4PP252.1043-75 Keypad Membrane Repair Replacement
The following issues for the PP100/200 devices are known: Using two different types of CompactFlash cards can cause problems in Automation PCs and Panel PCs. This can result in one of the two cards not being detected during system startup. This is caused by varying startup speeds. CompactFlash cards with older technology require significantly more time during system startup than CompactFlash cards with newer technology. This behavior occurs near the limits of the time frame provided for startup. The problem described above can occur because the startup time for the CompactFlash cards fluctuates due to the variance of the components being used. Depending on the CompactFlash cards being used, this error might never, sometimes or always occur.
The 3-pin socket required for the supply voltage connection is not included in delivery. This can be ordered from B&R using the model number 0TB103.9 (screw clamps) or 0TB103.91 (cage clamps). The cable required for the connection must be supplied by the customer. The supply voltage is internally protected so that the device cannot be damaged if there is an overload or if the voltage supply is connected incorrectly. Pin assignments can be found either in the following table or printed on the Power Panel plate or device label.
Specifications:
The table below describes the parameters of the 4PP252.1043-75 Power Panel 200 Operator Panel Keypad.
| Part Number : | 4PP252.1043-75 |
| Product Line: | Power Panel 200 |
| Screen diagonal | 10.4 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Power Panel 200 Series Part No. :
| Power Panel 200 | Description | Inventory status |
| 4PP220.1043-K13 | B&R Power Panel 200 Touch Screen Panel Glass | In Stock |
| 4PP220.1043-K14 | PP200 B and R Touch Panel Glass Front Overlay Repair | Available Now |
| 4PP220.1043-K15 | B&R Power Panel 200 Touch Screen Panel Protective Film | In Stock |
| 4PP220.1043-K16 | B and R Power Panel 200 Touch Digitizer Repair | In Stock |
| 4PP220.1043-K17 | Power Panel 200 B&R Protective Film HMI Touch Screen Organizer | In Stock |
| 4PP220.1043-K19 | B and R Power Panel 200 Touch Panel Glass Repair | In Stock |
| 4PP220.1043-V | PP200 B&R Touch Screen Panel Replacement | Available Now |
| 4PP220.1043-V2 | Power Panel 200 B&R Touch Membrane Repair Replacement | In Stock |
| 4PP251.1043-75 | B and R Power Panel 200 Membrane Keypad Switch | Available Now |
| 4PP251.1043-B5 | Power Panel 200 B&R HMI Operator Panel Keypad | In Stock |
| 4PP252.1043-75 | B and R Power Panel 200 Keyboard Membrane Repair | In Stock |
| 4PP252.1043-B5 | PP200 B&R Switch Membrane Replacement | Available Now |
| 4PP280.1043-75 | B&R PP200 Touch Screen Tablet Front Overlay Membrane Keypad | In Stock |
| 4PP280.1043-B5 | B&R PP200 Membrane Keypad Switch Touch Digitizer Front Overlay | In Stock |
| 4PP280.1043-K01 | B&R Power Panel 200 HMI Panel Glass Operator Panel Keypad | In Stock |
| 4PP280.1043-K02 | PP200 B and R Membrane Keyboard Keypad Touch Screen Panel | Available Now |
| B and R PP200 | Description | Inventory status |
FAQ:
Question: How can the Automation Panel B&R 4PP252.1043-75 service life of the backlight be extended?
Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
Question: How to clean the B&R Power Panel 200 4PP252.1043-75 Terminal Devices?
Answer:
This device should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol). The cleaning agent should be applied to the cloth beforehand, not sprayed directly on the device! Aggressive solvents, chemicals, scouring agents, pressurized air or steam jets should never be used.
