PP500 B and R 5PP5:220340.000-02 HMI Touch Screen Monitor
- Model
- 5PP5:220340.000-02
Item specifics
- Brand
- B&R
- Size
- 15 inch
- Warranty
- 1 Year VICPAS Warranty
- Model
- B&R Power Panel 500 5PP5:220340.000-02
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Review
Description

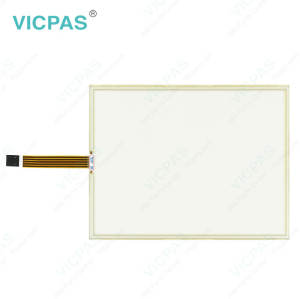

B&R Power Panel 500 5PP5:220340.000-02 Touch Panel Repair Replacement
The following issues for the PP500 55PP5:220340.000-02 devices are known:
• HD resolution (1366x768) is not completely supported by VBIOS, which causes display errors after POST. The image flickers and is shifted down a line. BIOS POST and BIOS Setup are still displayed correctly, however. This effect occurs when using operating systems for which no driver is available (e.g. MS-DOS) or before the operating system's graphics driver is started (e.g. Windows XP boot logo). HD resolution is displayed corrected again when Windows XP or Windows 7 is booted properly with an installed graphics driver.
• The monitor/panel interface does not support RGB signals.
In order to run Automation Runtime Embedded on a Power Panel 500 5PP5:220340.000-02, the following software versions (or higher) are required:
• ARemb upgrade AR A4.00
• Automation Studio V3.0.90
• Visual Components Runtime (VC) V3.95.2
• Technology Guard
The PP500 features a USB 2.0 (Universal Serial Bus) host controller with multiple USB interfaces, 2 of which are accessible externally for the user. PP500 devices with a display size of 10.4", 12.1" or 15" are also equipped with a USB interface on the front of the device.
Specifications:
The table below describes the parameters of the 5PP5:220340.000-02 Power Panel 500 Touchscreen Panel.
| Part Number : | 5PP5:220340.000-02 |
| Product Line: | Power Panel 500 |
| Screen diagonal: | 15 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage: | -20 to 70°C |
Related Power Panel 500 Series Part No. :
| B&R Power Panel 500 | Description | Inventory status |
| 5PP5:404380.002-00 | B&R Power Panel 500 Touch Screen Panel Glass HMI Repair | In Stock |
| 5PP5:436504.001-02 | Power Panel 500 B and R Touch Panel Glass Replacement | Available Now |
| 5PP5:405667.001-00 | B&R Power Panel 500 Touch Screen Panel Repair | In Stock |
| 5PP5:212440.000-03 | B and R Power Panel 500 Touch Digitizer Replacement | In Stock |
| 5PP5:220641.001-00 | Power Panel 500 B&R HMI Touch Screen Organizer | In Stock |
| 5PP5:240252.000-00 | B and R Power Panel 500 Touch Panel Glass Repair | In Stock |
| 5PP5:404317.000-00 | Power Panel 500 B&R HMI Touch Screen Organizer | Available Now |
| 5PP5:439456.003-00 | Power Panel 500 B&R Touch Screen Monitor Replacement | In Stock |
| 5PP5:462629.003-00 | B and R Power Panel 500 Touch Screen Hmi Monitor | Available Now |
| 5PP5:220340.000-02 | B&R Power Panel 500 Touch Panel Glass Organizer Repair | In Stock |
| 5PP5:220377.067-00 | B&R Power Panel 500 HMI Touch Screen Panel Protective Film | In Stock |
| 5PP5:405871.001-01 | B and R Power Panel 500 Touch Digitizer Replacement | In Stock |
| B and R PP500 | Description | Inventory status |
B&R Power Panel 500 Manuals PDF Download:
FAQ:
Question: What is B&R Power Panel 500 5PP5:220340.000-02 HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Question: How to clean the B&R Power Panel 500 5PP5:220340.000-02 Terminal Devices?
Answer:
This device should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol). The cleaning agent should be applied to the cloth beforehand, not sprayed directly on the device! Aggressive solvents, chemicals, scouring agents, pressurized air or steam jets should never be used.
Question:How to replacing a Power Panel 500 B&R 5PP5:220340.000-02 CompactFlash card?
Answer:
The CompactFlash card can be replaced quickly and easily by pressing the ejector (see image) with a pointed object such as a pen.
