PP300 5PP320.0571-K17 B&R Touch Screen Panel Glass
PP300 5PP320.0571-K17 B&R Touch Screen Panel Glass
PP300 5PP320.0571-K17 B&R Touch Screen Panel Glass
PP300 5PP320.0571-K17 B&R Touch Screen Panel Glass
Model
5PP320.0571-K17

Item specifics

Brand
B&R
Size
5.7 inch
Warranty
1 Year VICPAS Warranty
Model
B&R Power Panel 300 5PP320.0571-K17
Shipping
DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Review

Description

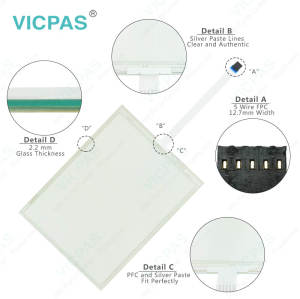

B&R Power Panel 300 5PP320.0571-K17 Front Overlay Touch Screen Panel Repair Replacement

Power Panel 300 Protective Film Touch Screen Panel

5PP320.0571-K17 BIOS stands for "Basic Input Output System". It is the most basic standardized communication between the user and the system (hardware). A B&R-modified BIOS from Insyde is used in the Power Panel devices. BIOS setup lets you modify basic system configuration settings. These settings are saved in CMOS RAM. The CMOS RAM is a nonvolatile, battery-backed memory that retains information when power is not applied to the Power Panel. BIOS is immediately activated when switching on the power supply of the Power Panel. BIOS reads the system configuration information in CMOS RAM, checks the system, and configures it using the power-on self-test (POST).


VICPAS supply B and R Power Panel 300 5PP320.0571-K17 touchscreen panel and protective film for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.


The Power Panel 300/400 devices have a USB 2.0 (Universal Serial Bus) host controller with multiple USB ports, two of which are on the outside for easy user access. Power Panel devices are equipped with 2 hex switches that serve as operating mode switches. Switch positions 01 to FD are available for any purpose in an application and can be evaluated by the application program. Due to the complete ATX power supply support, the power button serves a number of functions, which can be configured in BIOS setup.



  Contact Best Price


Specifications:

The table below describes the parameters of the 5PP320.0571-K17 Power Panel 300 Touchscreen Panel Front Overlay.

Part Number : 5PP320.0571-K17
Product Line:Power Panel 300
Screen diagonal5.7 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type:RS232
Storage -20 to 70°C


Related Power Panel 300 Series Part No. :

B&R Power Panel 300 Description Inventory status
4PP320-0571-01 B&R Power Panel 300 Touch Screen Panel Glass Protective Film In Stock
4PP320-0571-35 Power Panel 300 Touch Panel Glass Front Overlay Replacement Available Now
5PP320-0571-29 B&R Power Panel 300 Touch Screen Panel Front Overlay Repair Kit In Stock
5PP320-0571-39 B and R Power Panel 300 Touch Digitizer Overlay Replacement In Stock
5PP320-0571-K02 Power Panel 300 HMI Touch Screen Organizer Protective Film In Stock
5PP320-0573-39 Power Panel 300 Touch Panel Protective Film Overlay Repair In Stock
5PP320-0573-3B Power Panel 300 B&R HMI Touch Screen Front Overlay Available Now
5PP320-0571-K17 Power Panel 300 B&R Touch Screen Monitor In Stock
5PP320-0571-K05 B and R Power Panel 300 Touch Screen Hmi Repair Available Now
5PP320-0571-K06 B&R Power Panel 300 Touch Screen Panel Glass In Stock
5PP320-0571-K10 B&R Power Panel 300 Touch Screen Replacement In Stock
5PP320-0571-K11 Power Panel 300 B&R MMI Touch Screen Glass In Stock
5PP320-0571-K12 Power Panel 300 B and R Touch Screen Organizer Available Now
5PP320-0571-K14 B&R Power Panel 300 Touch Digitizer Glass Repair In Stock
B and R PP300 Description Inventory status

B&R Power Panel 300 Manuals PDF Download:

  • B&R Power Panel 300 User's Manual

  • FAQ:

    Question: How to upgrade B&R Power Panel 300 5PP320.0571-K17 BIOS Software?

    Answer: The following steps should be carried out to upgrade or save 5PP320.0571-K17 BIOS:
    • Create bootable media.
    How to upgrade B&R Power Panel 300 5PP320.0571-K17 BIOS Software?<br />
    • Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary.
    • Connect the bootable media to the Power Panel and reboot the device.
    • The following start menu will be shown after booting.
    How to upgrade B&R Power Panel 300 5PP320.0571-K17 BIOS Software?<br />
    How to upgrade B&R Power Panel 300 5PP320.0571-K17 BIOS Software?<br />
    • The system must be rebooted after a successful upgrade.


    Question: What is the procedure of creating a bootable USB flash drive for B&R 5PP320.0571-K17 upgrade files?

    Answer:
    • Connect the USB flash drive to the PC.
    • If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh.
    • Mark the desired USB flash drive in the drive list.
    • Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action.
    • Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder....
    • In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file.
    • Click on the Start action button in the toolbar.
    How to upgrade the B&R Power Panel 300 aPCI module firmware?


    Question: What is the B&R Power Panel 5PP320.0571-K17 touch screen panel price?

    Answer: Submit a fast quote, send VICPAS an email for best price.

    Common misspellings:

    5P320.0571-K17

    5PP320.o571-K17

    5PP32O.0571-K17

    5PP320.057l-Kl7

    5PP3200.0571-K17
