Beijer HMI X2 extreme 7 12V 640014005 Touch Screen
- Model
- X2 extreme 7 12V
Item specifics
- Brand
- Beijer
- Warranty
- 365 Days
- Product Line
- X2 extreme
- Resolution
- 800 × 480 pixel
- Supply
- Beijer X2 extreme 7 12V Touchscreen
- Part Number
- 640014005
Review
Description

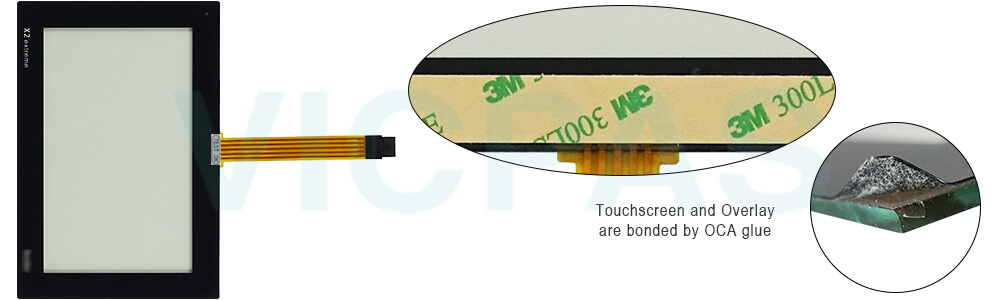

Beijer HMI X2 extreme 7 12V 640014005 Front Overlay Touchscreen Repair Replacement
Order each part separately is available
Beijer X2 extreme 7 12V 640014005 7 INCH HMI with iX runtime HMI Repair kit
• 800 × 480 pixel (16:9)
• TFT-LCD touch screen
• 1.5 GB application memory
• Ethernet 1x100 Mbit
• -30°C to +70°C operating temperature
• GL, KR, LR, ABS, CCS, BV, NK marine approvals
• UL Class I Div 2, ATEX/IECEx Zone 2,22
X2 control panels combine industrial HMI and CODESYS PLC functionality in the same compact hardware. Panels range from ultra-compact 4-inch to 15-inch panels designed for demanding applications. Add standard distributed I/Os and you'll get an elegant, scalable and cost-effective solution that's cutting-edge.
VICPAS supply Beijer X2 extreme 7 12V Touch Panel and Front Overlay with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 640014005 Beijer X2 extreme 7 12V HMI Parts.
| Brand: | Beijer |
| Part number: | 640014005 |
| Size: | 7 INCH |
| Warranty: | 365 Days Warranty |
| Product Line: | X2 extreme 7 12V |
| Size diagonal: | 800 × 480 pixel |
| Display type: | TFT-LCD |
| Touch type: | Resistive |
| Input voltage: | 20 - 30 V DC |
| Power: | 12W |
Beijer X2 extreme 7 12V Touch Panel HMI Manuals PDF Download:
FAQ:
Question: How to install the Beijer X2 extreme 7 12V Touch Panel?
Answer: 1. Unpack and check the delivery. If damage is found, notify the supplier.
2. To cut a correct opening for the operator panel, use the cut-out dimensions in the outline drawing. A separate cut-out drawing is available for download from the Beijer Electronics website. For more information, see sections Operator Panel Drawings and Technical Data.
3. Install the operator panel into the cutout.
4. Secure the operator panel in position by screwing the slotted thumb screwclockwise, allowing the built-in bracket to flip out and tighten against the cabinet
5. Secure the operator panel in position using the built-in brackets or screws, depending on the panel type.
6. In cases where the front panel seal (IP54 or greater, NEMA-4X) is critical, a torque wrench should be used to ensure all screws are torqued within the specification above
Question: Why the Beijer X2 extreme 7 12V HMI have the chemical resistance?
Answer: Autoflex EBA180L covers the overlay surrounding the screen.
Question: What is Beijer X2 extreme 7 12V Touchscreen and Overlay HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
