Model
X2 motion 7

Item specifics

Brand
Beijer
Warranty
365 Days
Product Line
X2 motion
Resolution
800 × 480 pixel
Supply
Beijer X2 motion 7 Touchscreen

Review

Description

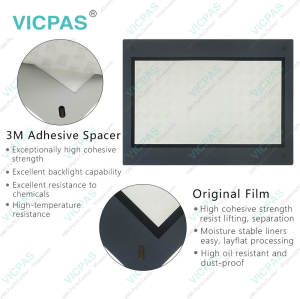

Beijer HMI X2 motion 7 Touchscreen Repair Replacement


 Beijer HMI X2 motion 7  Touchscreen Repair Replacement

Beijer X2 motion 7 , 7 INCH HMI with iX runtime HMI Repair kit


• 800 × 480 pixel (16:9) TFT-LCD touch screen
• 1.5 GB application memory
• Ethernet 2x100 Mbit
• EtherCAT as standard
• CODESYS control integrated
• CE, FCC, KCC, UL approvals
• DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

X2 motion panels combine industrial HMI and CODESYS PLC functionality in the same compact hardware. Panels range from ultra-compact 4-inch to 15-inch panels designed for demanding applications. Add standard distributed I/Os and you'll get an elegant, scalable and cost-effective solution that's cutting-edge.

VICPAS supply Beijer X2 motion 7 Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.




  Contact Best Price


Specifications:

The table below describes the parameters of the Beijer X2 motion 7 HMI Parts.

Brand: Beijer
Model: X2 motion 7
Size:7 INCH
Warranty: 365 Days Warranty
Product Line:motion
Size diagonal:800 × 480 pixel
Display type: TFT-LCD
Touch type:Resistive
Input voltage:20 - 30 V DC
Power: 12W


Beijer X2 motion 7 Touch Panel HMI Manuals PDF Download:

  • Beijer X2 pro Series Maintenance Manuals
  • Beijer X2 pro4 HMI datasheet pdf


  • FAQ:

    Question: How to install the Beijer X2 motion 7 Touch Panel?

    Answer:1. Unpack and check the delivery. If damage is found, notify the supplier.
    2. To cut a correct opening for the operator panel, use the cut out dimensionsin the outline drawing. Aseparate cut out drawing is available for download from theBeijer Electronics web site. Formore information, see sections Operator Panel Drawings andTechnicalData.
    3. Install the operator panel into the cutout.
    4. Secure the operator panel in position by screwing the slotted thumb screwclockwise, allowing the built-in bracket toflipout and tightenagainst thecabinet
    5. Secure the operator panel in position using the built-in brackets or screws,depending on the panel type.
    6. In caseswhere the front panel seal (IP54 or greater, NEMA-4X) is critical,a torquewrench shouldbeused to ensure all screws are torquedwithinthespecification above


    Question: Why the Beijer X2 motion 7 HMI have the chemical resistance?

    Answer:Autoflex EBA180L covers the overlay surrounding the screen.


    Question: What is Beijer X2 motion 7 Touchscreen and Overlay HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
