Model
6AG1635-2SB02-4AC0

Item specifics

Brand
Siemens
Warranty
365 Days
Product Line
Siemens C7 series
Width
257.5mm
Height
229mm
Supply
Siemens C7 series Touchscreen Membrane Keyboard Plastic Shell
model
6AG1635-2SB02-4AC0

Review

Description

6AG1635-2SB02-4AC0 SIPLUS C7-635 Key GEA for medial exposure based on 6ES7635-2SB02-0AC0

Order each part separately is available

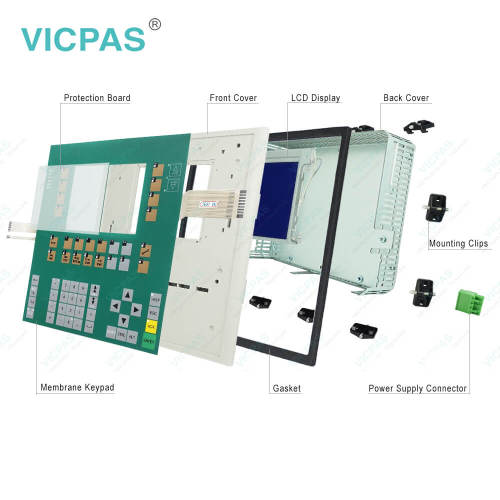

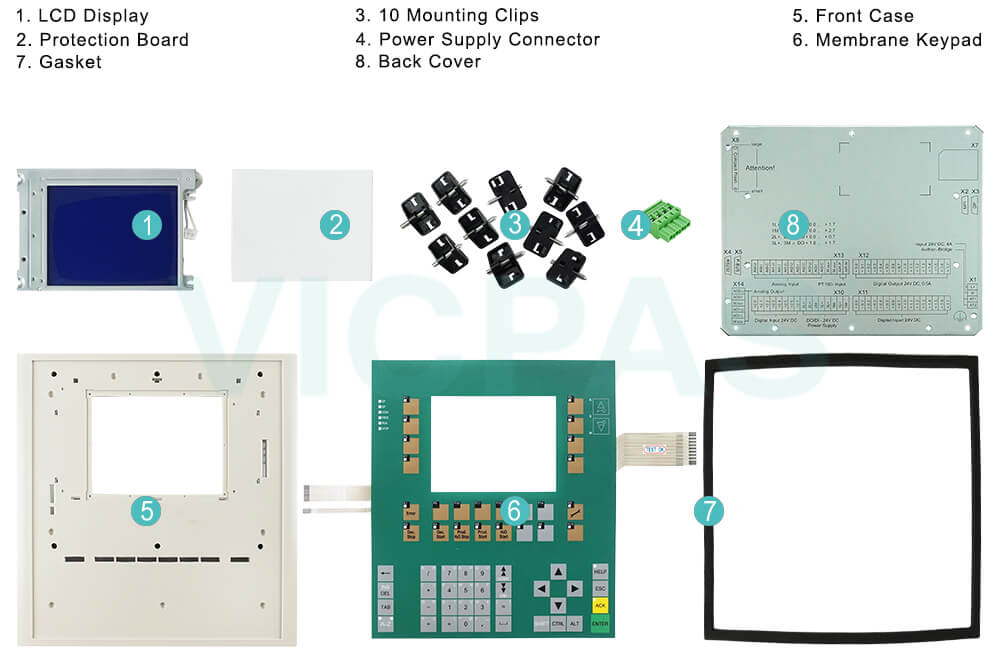

6AG1635-2SB02-4AC0 Siemens SIMATIC HMI C7-635 Touchscreen, Membrane Keyboard, Plastic Shell, LCD Display Screen, Mounting Clips, Gasket and Power Supply Connector Repair Replacement

6AG1635-2SB02-4AC0 SIPLUS C7-635 Key GEA for medial exposure based on 6ES7635-2SB02-0AC0 Notes


The SIMATIC C7-635 consists of the following components::
• SIMATIC S7 314C-2 DP CPU
• SIMATIC touch panel TP170 B or operator panel OP170 B

The 6AG1635-2SB02-4AC0 touch panel and the operator panel of the C7-635 are based on the standard Windows CE operating system. You can visually display operating modes, current process values, and faults. You can also make entries on the C7-635. Simple machine diagnostic functions are also possible.

You can also incorporate your own graphics, digital pictures, and scanned images into your project. Moreover, you can represent elements such as temperature variations graphically using bar graphs and diagrams.

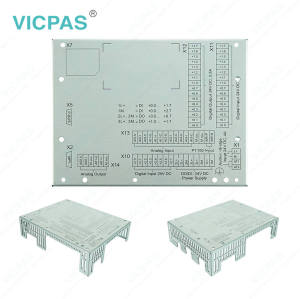

VICPAS supply 6AG1635-2SB02-4AC0 Siemens C7 635 Protection Board, Enclosure, membrane switch, LCD Screen, Mounting Clips, Gasket and Power Supply Connector with 365 days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the 6AG1635-2SB02-4AC0 Siemens c7-635 HMI Parts.

Part Number : 6AG1635-2SB02-4AC0
Firmware version: V2.0.12
Programming: STEP 7 V5.2 + SP1
Warranty: 6-Months Warranty
Product Line: Siemens c7-635
Rated value (DC): 24 V
Number of digital outputs: 16
Design as touch screen: YES
Keyboard fonts: US English
Interface type: Integrated RS 485 interface


Related Siemens Simatic C7-635 Part No. :

Siemens C7-635 Description Inventory status
6ES7635-2EC00-0AE3 SIMATIC C7-635 KEYS In Stock
6ES7635-2EC01-0AE3 SIMATIC C7-635 KEYS In Stock
6ES7635-2EC02-0AE3 SIMATIC C7-635 KEYS Available Now
6ES7635-2SE00-0AE3 SIMATIC C7-635 KEYS In Stock
6AG1635-2EC02-4AE3 SIPLUS C7-635 KEY In Stock
6AG1635-2SB02-4AC0 SIPLUS C7-635 KEY GEA LS2 Available Now
6AG1935-2SB00-4AC0 SIPLUS C7-635 KEY GEA In Stock
6ES7635-2EB00-0AE3 SIMATIC C7-635 TOUCH Available Now
6ES7635-2EB01-0AE3 SIMATIC C7-635 TOUCH In Stock
6ES7635-2EB02-0AE3 SIMATIC C7-635 TOUCH Available Now
6ES7635-3SE00-0AE3 SIMATIC C7-635 TOUCH In Stock
SIMATIC C7 635 Description Inventory status

Siemens C7 635 series HMI Manuals PDF Download:

  • 6AG1635-2SB02-4AC0 SIMATIC HMI c7 635 datasheet pdf
  • Siemens Simatic c7-635 series HMI operator panel keypad manual


  • FAQ:

    Question: What should we know when programing??

    Answer:You program the C7-635 Touch with STEP 7 as of V 5.2 + Service Pack 1 +Hardware Update C7-635 Touch V2.0.
    You program the C7-635 Key with STEP 7 as of V 5.2 + Service Pack 1 +Hardware Update C7-635 Key V2.0.


    Question: How to install 6AG1635-2SB02-4AC0 Simatic c7-635 ?

    Answer:1.C7-635 Touch:Make a cutout in the control cabinet door(dimensions 231+1.0 x 183+1.0 mm).
    C7-635 Key:Make a cutout in the control cabinet door(dimensions 231+1.0 x 257+1.0 mm).
    2.Ensure that no Compact Flash Card (CF Card) is inserted into the C7-635.The CF Card protrudes from the C7-635 and could be damaged when thedevice is installed.
    3.Place the C7-635 in the prepared cutout in the control cabinet door. Ensurethat the gasket is applied evenly to the metal plate.
    4.Guide the fastening hooks of the provided mounting supports (for theC7-635 Touch, 8 mounting supports; for the C7-635 Key, 10 mountingsupports) into the intended recesses in the C7-635 housing. Figure 3-2provides an example of the mechanical fastening of the C7-635 Touch.
    5.Using a screwdriver, tighten the C7-635 evenly and crosswise from behindin the control cabinet door until the front panel of the C7-635 rests on thecontrol cabinet door. Situate the device so that there is even spacing onall sides between the housing and the cutout section


    Question: What is the 6AG1 635-2SB02-4AC0 Siemens C7-635 mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
