Model
6AG1613-1SB02-4AC0

Item specifics

Brand
Siemens
Warranty
6 Months
Product Line
Siemens C7 series
width
184.1mm
height
148.5mm
Supply
Siemens C7 series membrane keyboard
model
6ES7613-1CA02-0AE3

Review

Description

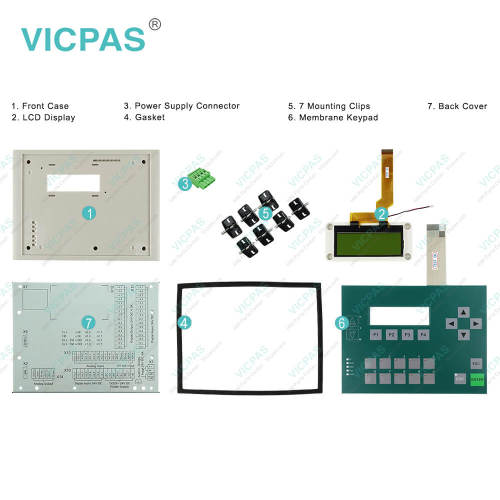

6AG1613-1SB02-4AC0 Siemens SIMATIC HMI C7-613 Membrane Keyboard, Gasket, Screws, Power Supply Connector, Mounting Clips, Plastic Case Repair Replacement

Order each part separately is available

6AG1613-1SB02-4AC0 Siemens SIMATIC HMI C7-613 Membrane Keyboard, Gasket, Mounting Clips, Plastic Cover Body, Power Supply Connector, LCD Display Panel Repair Replacement

6AG1613-1SB02-4AC0 SIPLUS C7-613 GEA for medial exposure based on 6ES7613-1SB02-0AC0


The basic functions of the C7-613 are:
• Displaying process states
• Operating the processes

The course of the operator guidance is created by using the configuration interface. The following display and operator control functions are available for the C7-613:
• Screens
• Operational messages
• Error messages
• Info texts
• Multilingual operator prompting.
HMI functions are not possible in STOP mode. The keyboard can no longer be operated. The system message “CPU in STOP mode!” is displayed. In addition, the STOP LED indicates the STOP mode.


VICPAS supply 6AG1613-1SB02-4AC0 Siemens C7 613 membrane switch, Mounting Clips, Plastic Cover, Power Supply Connector, Gasket, LCD Display with 6 months warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the 6AG1613-1SB02-4AC0 Siemens c7-613 HMI Parts.

Part Number : 6AG1613-1SB02-4AC0
Firmware version: V2.0.12
Programming: STEP 7 V5.2 + SP1
Warranty: 6-Months Warranty
Product Line: Siemens c7-613
Rated value (DC): 24 V
Number of digital outputs: 16
Design as touch screen: No
Keyboard fonts: US English
Number of analog outputs 2


Related Siemens Simatic C7-613 Part No. :

Siemens C7-613 Description Inventory status
0005-4050-430 SYG18064A SIMATIC C7-613 Available Now
6ES7613-1CA00-0AE3 SIMATIC HMI SIMATIC C7-613 In Stock
6ES7613-1CA01-0AE3 SIMATIC C7-613 In Stock
6ES7613-1CA02-0AE3 SIMATIC C7-613 Available Now
6ES7613-1SB02-0AC0 GEA C7-613 (OEM) Available Now
6ES7613-1SB02-1AC0 GEA C7-613 (OEM) In Stock
6AG1613-1CA02-4AE3 SIPLUS C7-613 In Stock
6AG1613-1SB01-4AC0 SIPLUS C7-613 GEA Available Now
6AG1613-1SB02-4AC0 SIPLUS C7-613 GEA In Stock
6AG1913-1CA01-1AE3 SIPLUS C7-613 LS2 Available Now
6ES7613-0CA00-7AA0 SIMATIC SIMATIC C7-613 In Stock
6ES7613-1SB02 C7-613 (OEM) In Stock
SIMATIC C7 613 Description Inventory status

Siemens C7 613 series HMI Manuals PDF Download:

  • 6AG1613-1SB02-4AC0 SIMATIC HMI c7 613 datasheet pdf
  • Siemens Simatic c7-613 series HMI operator panel keypad manual


  • FAQ:

    Question: What is the dimension of 6AG1613-1SB02-4AC0 Siemens c7 613 membrane switch??

    Answer:It is 184.1 millimeter long and 148.5 millimeters wide.


    Question: How to update 6AG1613-1SB02-4AC0 Simatic c7-613 fireware ?

    Answer:Firmware updates can be loaded into the operating system memory of the C7-613in order to expand the functions and eliminate faults. To this purpose you require aMicro Memory Card with at least 2 MB flash EPROM.


    Question: What is the 6AG1613-1SB02-4AC0 Siemens C7-613 mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
