Model
2711-K3A5L1

Item specifics

Brand
Allen Bradley
Warranty
6 Months
Product Line
PanelView 300
Size
3 Inch
Supply
PanelView 300 Membrane Keypad
model
2711-K3A5L1

Review

Description

2711-K3A5L1 PanelView 300 Membrane Keyboard Keypad, LCD Display, Memory Card Retainer Base, Enclosure, Gasket, Label, Screws Repair Replacement

Order each part separately is available

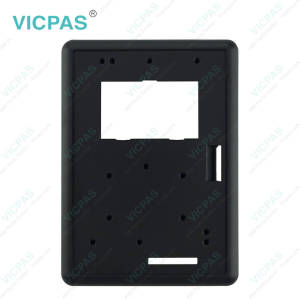

 2711-K3A5L1 PanelView 300 Membrane Keyboard Keypad, HMI Case, Gasket, Label, Screws, LCD Display Screen, Memory Card Retainer Base Repair Replacement

The 2711-K3A5L1 is an electronic operator interface that provides functionality through color, grayscale or monochrome displays and through pixel graphics. The PanelView Standard 300 is available in several varieties of sizes and configurations to meet specific application requirements.
All these variations improve operator productivity and simplify the programming process. The 2711-K3A5L1 Panelview Standard 300 has an Operator keypad input with eight function keys and an LCD monochrome color display, with an LED backlight. It has a display dimension of 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, and the LED backlight has a standby life of 100,000 hours.
VICPAS supply AB 2711-K3A5L1 HMI parts, membrane keypad switch, Plastic Case, LCD Display, Gasket, Label, Memory Card Retainer Base, Screws. All of them with VICPAS 180 days warranty and support Urgent Worldwide Shipping.
 2711-K3A5L1 PanelView 300 Membrane Keyboard Keypad, HMI Case, Gasket, Label, Screws, LCD Display Screen, Memory Card Retainer Base Repair Replacement
The 2711-K3A5L1 comes with an irreplaceable battery and a runtime application memory of 170 KB. It runs on a PanelBuilder32 software. It has a DH-485 (RS-232) communication port and supports an ATA Memory card. The input voltage of the 2711-K3A5L1 is between 18 to 32 Volts DC (24 Volts DC nominal), with a maximum power consumption of 10 Watts (0.42 amps at 24 Volts DC). With a weight of 673 grams (1.48 pounds,) the 2711-K3A5L1 has a dimension of 197 x 140 x 82 millimeters (7.76 x 5.53 x 3.21 inches) (length, breadth, and height). The 2711-K3A5L1’s operating temperature is between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), and its storage temperature is between -20 and 85 degrees Celsius (-4 and 185 degrees Fahrenheit), and a working relative humidity range from 5 to 95% noncondensing at 0-55 degrees Celsius (32-131 degrees Fahrenheit) working temperature. It has a Shock rating of 30g and operational vibration of 2g.





Specifications:

The table below describes the parameters of the 2711-K3A5L1 PanelView 300 membrane keypad switch.

Part Number : 2711-K3A5L1
Product Line: PanelView 300
Screen diagonal 3 in
Warranty: 6 mouths Warranty
Input Power 24 VDC
Software: Panelbuilder 32
Mounting position: vertical
Design as touch screen: No
Keyboard fonts: US English
Firmware 4.00-4.48


Related PanelView 300 Series Part No. :

PanelView 300 Description Inventory status
2711-K3A10L1 PanelView 300 Membrane Keypad Switch In Stock
2711-K3A17L1 PanelView 300 Membrane Keyboard Keypad Available Now
2711-K3A2L1 Allen Bradley PanelView 300 Keypad Switch In Stock
2711-K3A5L1 PanelView 300 Membrane Keypad Keyboard Available Now
2711-K3A5L1K Allen Bradley Panel View 300 HMI Parts Repair In Stock
2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad Available Now
2711-M3A19L1 Allen Bradley PanelView 300 Micro Operator Interface Parts Available Now
Panel View 300 Description Inventory status

FAQ:

Question:How many function keys are on the 2711-K3A5L1 membrane keypad?

Answer:The 2711-K3A5L1 PanelView 300 Terminal has 8 keypad function keys.


Question: WDoes the 2711-K3A5L1 PanelView 300 Terminal have a replacement backlight?

Answer:No, the 2711-K3A5L1 PanelView 300 Terminal's backlight is non-replaceable.


Question: What is the 2711-K3A5L1 PanelView 300 HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
