Model
6AG1124-0GC13-2AX0

Item specifics

Brand
Siemens
Warranty
365 Days
Size
7 inch
Product Line
TP700 Comfort
Supply
Siemens TP700 HMI Touch Panel LCD Display
Model
6AG1124-0GC13-2AX0
Parts
Touch, Plastic Shell, Protective film, LCD Display

Review

Description

6AG1124-0GC13-2AX0 Siemens SIPLUS HMI TP700 Comfort Outdoor 6AG1 124-0GC13-2AX0 Touch Panel Glass, HMI Case, Overlay, Power Supply Connector, Case Gasket, Mounting Clips, Screws, LCD Bracket, LCD Display

Order each part separately is available

6AG1124-0GC13-2AX0 Siemens SIPLUS HMI TP700 Comfort Outdoor conformal Panel Glass, HMI Case, Overlay, LCD Bracket, Case Gasket, Mounting Clips, Power Supply Connector, Screws and LCD Display Repair Replacement

6AG1124-0GC13-2AX0 HMI TP700 Comfort, Comfort Panel, Touch operation, 7"widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V11 .


6AG1124-0GC13-2AX0 SIMATIC HMI TP700 Comfort Panel with glass touch screen and powder-coated, UV-resistant aluminum front are designed for use in indoor and outdoor areas, for example, in the fields of Oil&Gas, Marine or Refrigeration Technology. All devices offer the same excellent functionality and are configured exclusively with the innovative Siemens TP700 HMI software, WinCC. The engineering software is integrated with the engineering framework, "Totally Integrated Automation Portal".

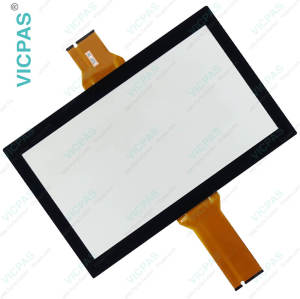

6AG1 124-0GC13-2AX0 Siemens TP700 Comfort HMI part includes touch panel, protective film, Mounting Clips, Power Supply Connector, Case Gasket, LCD Bracket, Screws mask and display, which is part of the Simatic HMI TP700 PanelView Standard terminal series. It can be used for repairing old operator panels. The Siemens TP700 panel is designed with TFT LCD, in contrast to passive-matrix LCDs or simple, direct-driven LCDs with a few segments. It has a 7-inch display with a resolution of 800 x 480px, which makes it ideal for applications in brightly lit locations. Besides, the LED backlight of the display lasts for up to 80,000 hours at 25 centigrade.


VICPAS supply 6AG1124-0GC13-2AX0 Siemens TP700 comfort panel, Overlay, Plastic Case cover body, Mounting Clips, Power Supply Connector, Case Gasket, LCD Bracket, Screws and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.




Product Video:

The video below describes the product details of the 6AG1124-0GC13-2AX0 Siemens TP700 Comfort HMI parts, including touch screen panel, protective film, case cover with lcd display.



Specifications:

The table below describes the parameters of the 6AV2 124-5GC00-0WF0 Siemens TP700 Comfort HMI Parts.

Part Number : 6AG1124-0GC13-2AX0
Product Line: Siemens TP700 Comfort
Display “ TFT-LCD dynamic color screen
Warranty: 365 days Warranty
Touchscreen: colour LCD display
Type of supply voltage DC
Language: Worldwide
Key Features: Touch screen support
Mounting position vertical
Active power input, typ.: 12 W


Related Simatic TP700 Comfort Part No. :

Siemens TP700 Comfort Description Inventory status
6AG1124-0GC01-4AX0 SIPLUS HMI TP700 COMFORT In Stock
6AV2144-8GC10-0AA0 SIMATIC HMI TP700 COMFORT INOX In Stock
6AV2124-0GC01-0AX0 SIMATIC HMI TP700 COMFORT Available Now
6AG2124-0GC13-1AX0 SIPLUS HMI TP700 OUTDOOR T1 RAIL In Stock
6AV2143-6GB00-0AA0 SIMATIC HMI TP700 Basic OEM Available Now
6AV2124-0GC13-0AX0 SIMATIC HMI TP700 COMFORT OUTDOOR In Stock
6AV2124-5GC00-0WF0 SIMATIC HMI TP700 Comfort Comfort Panel In Stock
6AG1124-0GC13-2AX0 SIPLUS HMI TP700 Comfort Outdoor conformal In Stock
SIMATIC HMI TP700 Comfort Description Inventory status

Siemens TP700 Comfort HMI Manuals PDF Download:

  • 6AG1124-0GC13-2AX0 HMI TP700 Comfort datasheet manual pdf
  • Siemens Simatic TP700 Comfort HMI manual


  • FAQ:

    Question: Which software for Siemens TP700 Comfort programming software?

    Answer:WinCC.WinCC (TIA Portal) is an engineering software for configuring SIMATIC Panels, SIMATIC Industrial PCs, and Standard PCs with the WinCC Runtime Advanced or the SCADA System.WinCC Runtime Professional visualization software.WinCC (TIA Portal) is available in four editions, depending on the configurable operator control.


    Question: What is the size of Siemens TP700 touch panel??

    Answer:The Siemens TP700 Comfort TouchScreen is 7-inch.It is 169 millimeter long and 155 millimeters wide.
