Sharp LM8V302 LCD Display Replacement Repair

Group Lcd display module for HMI panel replacement
Min. Order 1 piece
Terms of Payment Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time 2019-07-17
Item specifics
Warranty180 Days
ModelSharp LM8V302
SupplyBrand New

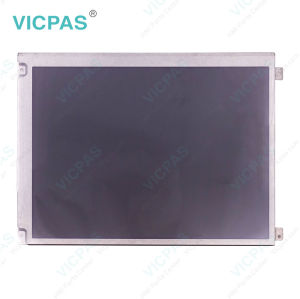

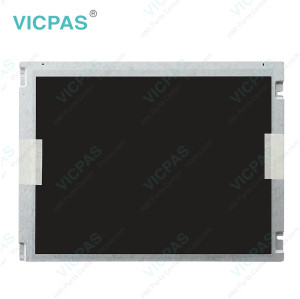

Brand New Sharp LM8V302 LCD Display for Replacement Repair 180 Days Warranty

VICPAS supply Sharp LM8V302 LCD display for replaced. The display is brands new with VICPAS 180 days warranty, support Urgent Worldwide Shipping.

The LM8V302 LCD display size 20 cm [7.7"] VGA format, Thin structure (8.0 mm) & lightweight (240 g) and Built-in CCFT backlight. The Sharp LM8V302 is a display that Sharp originally had a very difficult time getting customers to start using in their product lines. As the story goes, the major customer that Sharp had originally designed the LM8V302 display for had committed to buy a significant amount of the display, but then had a major flop in developing their product and it left Sharp with tons of inventory.

If you are looking for original and authentic Sharp LM8V302 LCD's, then you're at the right place. VICPAS has been selling these HMI Parts for over 15 years and tests each unit before it ships out.

  Contact Best Price


The table below describes the parameters of the Sharp LM8V302 LCD Display.

Part Number : LM8V302
Product Line: Sharp
Panel modeTransmissive
Warranty: 180 Days Warranty
Touchscreen: 7.7” colour LCD
Backlight type1CCFT(E)
Language: Worldwide
Outline dimensions197.0 x 142.5 x 8mm
Operating temperature0 to +50°C

Sharp LM8V302 Manuals PDF Download:

  • Sharp Microelectronics LM8V302 Manuals
  • LM8V302-SPECS data sheets
