Model
YASKAWA JZRCR-YPP21-1

Item specifics

Warranty
365 Days
Shipping
2-4 workdays
Brand
Motoman Yaskawa
Model
JZRCR-YPP21-1 Yaskawa
Supply Parts
Teach Pendant Parts

Review

Description

Motoman YASKAWA JZRCR-YPP21-1 Teach Pendant Parts, touchscreen, membrane keypad, LCD display, and protective case shell for repair replacement

Order each part separately is available

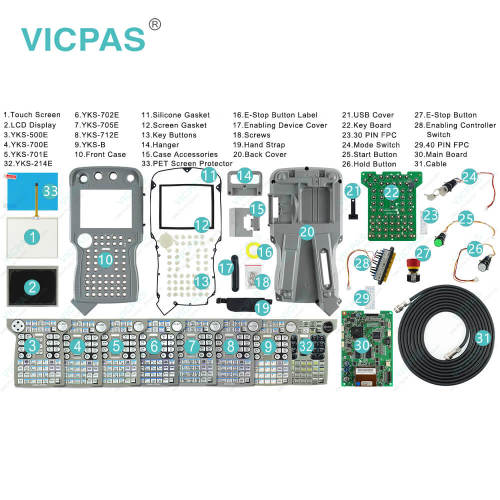

Motoman YASKAWA JZRCR-YPP21-1 Teach Pendant Parts, touchscreen, membrane keypad, LCD display, E-Stop Button Label, Hanger, Case Accessories, Enable Switch Cover, USB Cover, Key Board, Enabling Controller Switch, Screws, Mode Select Switch, Start Button, Hold Button, Emergency Stop Switch, Cable, Hand Strap, Silicone Gasket, Screen Gasket, Key Buttons, Motherboard, 30 PIN FPC, 40 PIN FPC, and protective case shell for repair replacement

The Motoman YASKAWA teach pendant parts, HMI Panel Glass, Operator Keyboard, Housing, Cable, Case Accessories, E-Stop Button Label, Emergency Stop Switch, Enable Switch Cover, Enabling Controller Switch, Hand Strap, Hanger, Hold Button, Key Buttons, Key Board, Mode Select Switch, Silicone Gasket, Screen Gasket, Screws, Start Button, USB Cover, Main Board, 30 PIN FPC, 40 PIN FPC and LCD Display Screen are used to repair YASKAWA JZRCR-YPP21-1 DX200 Programming Pendant controller panels.


The YASKAWA JZRCR-YPP21-1 DX200 provides icon-driven system programming. It also features a menu-driven interface to simplify operator interaction with the robot. Most operator controls are located on the Programming Pendant. This allows the DX200 controller cabinet to be mounted remotely. By using the pendant, the operator can teach the robot motion; perform programming, editing, maintenance, and diagnostic functions, and transfer control of the EcoTrim ET-1024 System to or from the Operator Station. For detailed information on the pendant programming keys, programming functions, and display functions, please refer to the DX200 Operator’s Manual that is included with your EcoTrim ET-1024 System.





Product Video:

The video below describes the product details of the YASKAWA JZRCR-YPP21-1 Teach Pendant parts, include touch screen glass, membrane Keypad, LCD display, Mode Switch, Start Button, Hold Button, E-Stop Button, E-Stop Button Label, Key Buttons, Silicone Gasket, Screen Gasket, Key Board, Enabling Controller Switch, Enable Switch Cover, Hanger, Hand Strap, USB Cover, Screws, Cable, Case Accessories, Mainboard, 30 PIN FPC, 40 PIN FPC and protective housing Case(shell).



Specifications:

The table below describes the parameters of the YASKAWA JZRCR-YPP21-1 teach pendant.

Part Number: JZRCR-YPP21-1
Product Line: YASKAWA DX200
Dimensions 169 (W) x 314.5 (H) x 50 (D)
Warranty: 1-Year Warranty
Touchscreen: 5.7” colour LCD
Operating system: Windows CE
Language: Worldwide
Storage Temp.: -20℃~+70℃
lineation test: ≥1.000.000 times
Input Type: ≥100.000 times


Related Yaskawa Teach Pendant Part No. :

Motoman Teach Pendant Description Inventory status
JZRCR-YPP01-1 Motoman Yaskawa Teach Pendant Keyboard, touchscreen, shell, LCD display Available Now
JZRCR-YPP03-1 Motoman Yaskawa programming pendant Keypad, touch glass, housing, LCD display In Stock
JZRCR-YPP06-1 Motoman Yaskawa Teach Pendant Keypad, touch panel, shell, LCD display In Stock
JZRCR-YPP07-1 Motoman Yaskawa Teach Pendant Keyboard, touch screen, shell, LCD display In Stock
JZRCR-YPP11-1 Motoman Yaskawa programming Pendant keyboard, touch glass, case, LCD display Available Now
JZRCR-YPP13-1 Motoman Yaskawa Teach Pendant Keypad, touchscreen, case, LCD display In Stock
JZRCR-YPP18-1 Motoman Yaskawa Teach Pendant Komatsu Keypad, touch panel, LCD, shell In Stock
JZRCR-YPP21-1 Motoman Yaskawa Teach Pendant Keypad switch, touch screen, case, LCD display In Stock
Yaskawa Teach Pendant Description Inventory status
