GT05G AIG05GQ02D touch screen GT05G AIG05GQ03D touch panel repair
- Model
- GT05G AIG05GQ02D GT05G AIG05GQ03D
Item specifics
- Brand Name
- VICPAS
- Place of Origin
- China
- Warranty
- 365 Days
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
- Types
- Resistance Touch Screen
- Touch points
- Single-touch
- Human Machine Interface repair
- HMI touch glass
- touch screen monitor
- protective film touch digitizer
- Response time
- ≤15ms
- Name
- GT05G AIG05GQ02D touch screen GT05G AIG05GQ03D tou
Review
Description

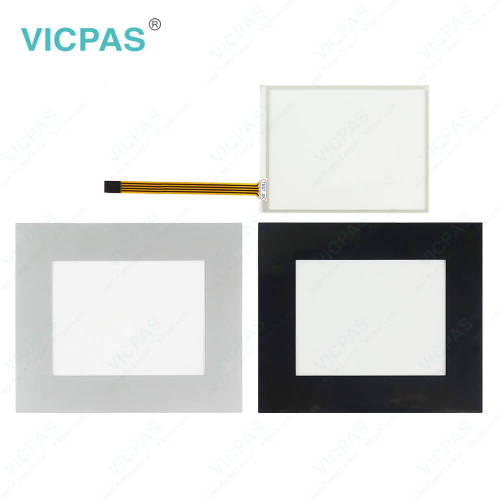

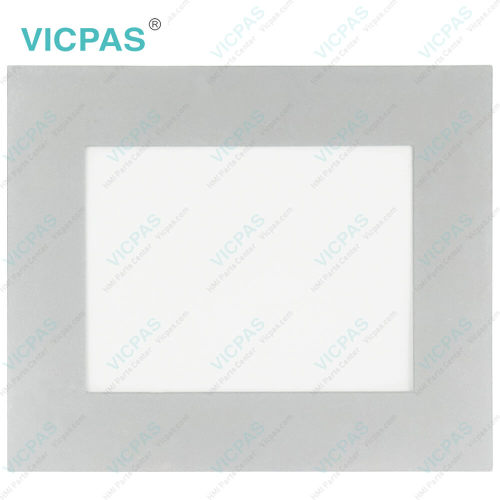

Panasonic GT05 GT05G AIG05GQ02D AIG05GQ03D Front Overlay Touch Panel Replacement
Order each part separately is available
Precautions when connecting Panasonic GT AIG05GQ02D AIG05GQ03D
-If noise is a problem, use a shielded cable and employ countermeasures such as installing a ferrite core if necessary. Also, take measures so that the shielding doesn't peel off and noise such as static electricity does not interfere.
-The number of AIG05GQ02D AIG05GQ03D Touch Screen Panel Glass Front Overlay units, transmission distance and baud rate may differ depending on the device connected. Verify with the AIG05GQ02D AIG05GQ03D Touch Panel Protective Film device being used.
-The maximum cable length for RS232C type is 15 m, also RS422 (5 V) type is 30 m.
-The maximum transmission distance is 500 m for the 24 V RS422 type.
-When connecting to the RS485, it may not be connected depending on the timing for switching between the transmission and reception at the external device. Please check it using the actual equipment.
The Panasonic GT05 GT05G AIG05GQ02D AIG05GQ03D Protective Film Touch Digitizer Glass terminal unit setting varies according to the external device to be connected. Confirm it before setting a AIG05GQ02D AIG05GQ03D HMI Panel Glass Front Overlay terminal unit.
Specifications:
The table below describes the parameters of the Panasonic GT05 GT05G AIG05GQ02D AIG05GQ03D Touch Screen Monitor Front Overlay HMI Parts.
| Backlight: | 3-color LED |
| Brand: | Panasonic |
| Warranty: | 365 Days |
| Product Line: | Panasonic GT05 |
| Resolution: | 320 (W) × 240 (H) dots |
| Ambient temperature: | 0 to +50 °C +32 to +122 °F |
| Display Type: | TFT monochrome LCD |
| Part Number: | AIG05GQ02D AIG05GQ03D |
| Power supply: | 24 V DC |
| Touch Size: | 3.5" |
Related Panasonic GT Series HMI Part No. :
| Panasonic GT05 | Description | Inventory status |
| AIG05GQ02D | Panasonic GT05G Touch Screen Protective Film Replacement | In Stock |
| AIG05GQ03D | Panasonic GT05 GT05G Touch Panel Protective Film Repair | Available Now |
| AIG05GQ04D | Panasonic GT05 GT05G Touchscreen Protective Film Repair | In Stock |
| AIG05GQ05D | Panasonic GT05 GT05G HMI Touch Screen Glass Protective Film | Available Now |
| AIG05MQ02D | Panasonic GT05 GT05M Touch Screen Panel Front Overlay Repair | In Stock |
| AIG05MQ03D | Panasonic GT05 GT05M Front Overlay Touch Membrane | In Stock |
| AIG05MQ04D | Panasonic GT05 GT05M Touch Glass Front Overlay Repair | In Stock |
| AIG05MQ05D | Panasonic GT05 GT05M Touch Digitizer Glass Overlay Repair | Available Now |
| AIG05SQ02D | Panasonic GT05 GT05S HMI Panel Glass Protective Film | Available Now |
| AIG05SQ03D | Panasonic GT05 GT05S Touch Screen Monitor Front Overlay | In Stock |
| AIG05SQ04D | Panasonic GT05 GT05S MMI Touch Screen Front Overlay Replacement | In Stock |
| AIG05SQ05D | Panasonic GT05 GT05S HMI Touch Screen Protective Film | Available Now |
| Panasonic GT05 | Description | Inventory status |
Panasonic GT Series HMI Manuals PDF Download:
FAQ:
Question: What to DO If Panasonic AIG05GQ02D AIG05GQ03D Touch Screen Panel is dim？
Answer:
1) The power voltage may be low.
Check the capacity of the power supply unit if it is enough for the GT's power consumption.
2) The contrast is set too low.
Bring up the system menu and adjust the contrast.
3) The AIG05GQ02D AIG05GQ03D backlight is off due to the [Backlight Auto-off] setting in the [Setup] of the GT configuration settings in GTWIN.
Touching any area of the AIG05GQ02D AIG05GQ03D screen lights that area. If a switch part is set on the touched area, the area will not light even if touched. To change the setting, change the content of the backlight auto-off settings.
Question: What to DO If Panasonic GT05 GT05G AIG05GQ02D AIG05GQ03D Touch Screen is blank？
Answer:
1) Power is not on.
Supply the power supply to the Panasonic AIG05GQ02D AIG05GQ03D Touch Digitizer Glass Protective Film unit as per specifications.
2) (When only lamp and message parts are configured to the base screen) Value of substitute reference device value does not exist in substitute data.
Check the address of the substitute reference device and the device values on the PLC side.
