6AV6643-7CD00-0CJ1 Siemens SIMATIC Touchscreen Panel Glass, Protective Film, LCD Display and plastic case for Repair Replacement

Order each part separately is available

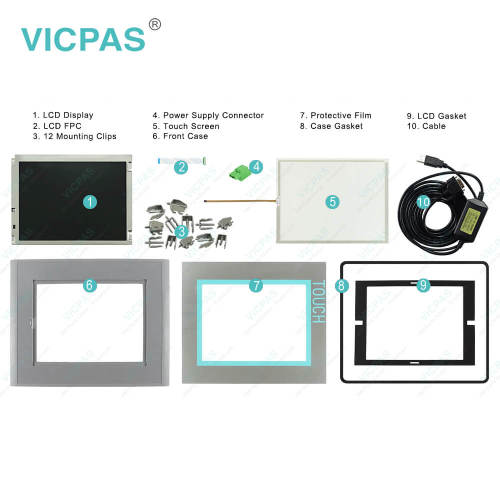

6AV6643-7CD00-0CJ1 Touchscreen Panel Glass, Protective Film, LCD Display, Plastic Case, Power Supply Connector, Mounting Clips, Case Gasket, LCD Gasket, LCD Display, LCD FPC Repair Replacement

The Multi Panel MP 277 6AV6643-7CD00-0CJ1 units are an extension of the 270 series. The HMI devices are based on the innovative standard operating system, MicrosoftWindows CE 5.0. The Multi Panel MP 277 units belong to the "Multifunctional Platform" product category. The HMI devices offer enhanced communication options to the office world. The Pocket Internet Explorer is already installed on the HMI devices.
The MP 277 offers a variety of application uses, high performance and a favorable cost/performance ratio.

The devices are equipped with:
● PROFIBUS port
● Ethernet port for connection to PROFINET
● 2 USB ports
● TFT screen with up to 64k color

Thanks to the wide range of devices, you get to use the device that is suited to you.
In addition to the classic HMI application WinCC flexible, the HMI devices also support additional applications, for example:
● Sm@rtService
● Sm@rtAccess
● OPC server


VICPAS supply 6AV6643-7CD00-0CJ1 Siemens MP277 10" touch panel, overlay, Case Gasket, LCD Gasket, Power Supply Connector, Mounting Clips, LCD Screen, LCD FPC, plastic case. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.


The HMI device MP 277 10" 6AV6643-7CD00-0CJ1 Touch is available in two enclosure models with different product versions. The product version is indicated on the back of the HMI device.
SIMATIC MP 277 10" Touch Multi Panel with retentive memory 10.4" TFT display 6 MB configuration memory configurable with WinCC flexible 2005 Standard SP1.






Specifications:

The table below describes the parameters of the 6AV6643-7CD00-0CJ1 Siemens MP277 HMI Parts.

Part Number : 6AV6643-7CD00-0CJ1
Screen diagonal: 10.4 in
Design of display: TFT
Warranty: 365 days Warranty
Product Line: Siemens MP277 10
Active power input, typ.: 12 W
MTBF backlighting (at 25 °C): 50 000 h
Number of colors: 65 536
Mounting position: vertical
Type of supply voltage DC


Related Simatic MP277 10 Part No. :

Siemens Multi Panel MP277 10 Description Inventory status
6AG1643-0CD01-4AX0 MP277-10 In Stock
6AG1643-0CD01-4AX1 MP277-10 Available Now
6AV6643-0CD01-1AX0 MP277-10 In Stock
6AV6643-0CD01-1AX1 MP277-10 In Stock
6AV6643-0CD01-1AX2 MP277-10 In Stock
6AV6643-0CD01-1AX5 MP277-10 In Stock
6AV6643-0ED01-2AX0 MP277-10 Available Now
6AV6643-5CD30-0YA0 MP 277 10" TOUCH In Stock
6AV6643-7CD00-0CJ0 MP 277 10" TOUCH Available Now
6AV6643-7CD00-0CJ1 MP 277 10" TOUCH In Stock
6AV6643-8AD10-0AA0 SIMATIC MP 277 10" TOUCH In Stock
6AV6643-8AD10-0AA1 MP 277 10" TOUCH SMALL FRAME In Stock
6AV6652-3PB01-0AA0 MP277 10 Available Now
6AV6652-3PB01-2AA0 MP 277 10 In Stock
6AV6652-3PC01-1AA0 MP 277 10 Available Now
6AV6652-3PD01-1AA0 SIMATIC MP 277 10" TOUCH Available Now
