Model
M2I TOPRX1200SD-Ex

Item specifics

Brand
M2I
Size
12.1 inch
Warranty
365 Days
Product Line
M2I XTOP Products Normal/EX Model
Supply
TOPRX1200SD-Ex Touch Digitizer Front Overlay
Shipping
2-4 workdays
Part Number
M2I XTOP Products Normal/EX Model TOPRX1200SD-Ex

Review

Description

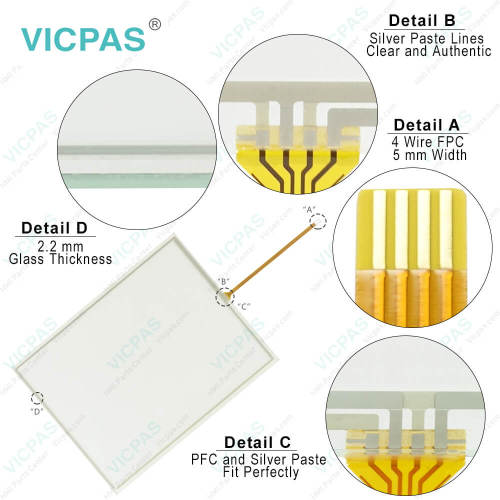

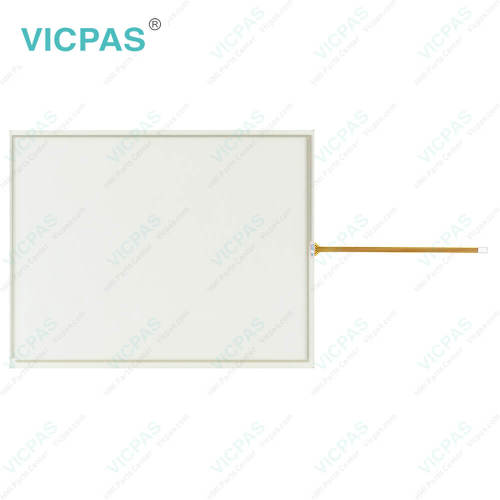

M2I XTOP Products Normal/EX Model TOPRX1200SD-Ex Front Overlay Touch Screen Tablet Replacement

Order each part separately is available

M2I XTOP Products Normal/EX Model TOPRX1200SD-Ex Front Overlay Touch Screen Panel Repair Replacement

Installation Requirements

1. For the performance, ventilation and safe use of the TOPRX1200SD-Ex Touch Screen Film Front Overlay equipment, keep the distance between the back of the main unit and each wall of the container at least 100mm and install the cooling fan when installed in an enclosed space.
2. It should be installed within -10~50C and 10~80%relative-humidity, otherwise the screen may be changed or cause malfunction and damage.
3. Be sure that heat from surrounding M2I XTOP Products Normal/EX Model TOPRX1200SD-Ex Protective Film Touch Membrane equipment does not cause product to exceed its standard operating temperature.
4. When you don't see within 30, you may not see clearly. When installing the product in a slanted position, the product screen should not incline more than 30.
5. In order to minimize external mechanical hazards of TOPRX1200SD-Ex Front Overlay HMI Panel Glass, please control the mechanical hazards of the surrounding environment.


Installation Procedure Warning

In order to install TOPRX1200SD-Ex Touch Screen Glass Protective Film product, please follow the following procedure.
1. Panel Cut-out: Make a panel cut which product is mounted and insert the product to the panel from the front side.
2. The Size of Panel Cut of TOPRX1200SD-Ex Touchscreen Front Overlay: Making the Panel Cut (Mounting Size) per each TOPRW Series as below Table, before Installation.
3. Fixing: Install clamps with this product should be installed as follows to maintain the IP performance of the device.
a.Insert the clamp into the slot of the product.
b.Screw the unit into the TOPRX1200SD-Ex Protective Film Touch Digitizer panel cut with a screwdriver.




Specifications:

The table below describes the parameters of the M2I TOPRX1200SD-Ex Protective Film Touch Panel HMI Parts.

Brand: M2I
Part Number: TOPRX1200SD-Ex
Ambient Humidity: 85% RH or less
Status LED: Built-in
Operation Temperature: 0°C ~ +50°C
Storage Temperature: -10°C ~ +60°C
Product Line: XTOP Products Normal/EX Model
Backlight: Yes
Operating Humidity: 0 ~ 90%
Display Type: TFT Color


Related M2I HMI Part No. :

M2I HMI Description Inventory status
TOPRX0500VD M2I HMI Touch Screen Panel Front Overlay Replacement In Stock
TOPRX0800SD M2I HMI Protective Film Touch Digitizer Glass Repair Available Now
TOPRX0800VD M2I HMI Front Overlay Touch Membrane Replacement In Stock
TOPRX1000SD M2I HMI HMI Touch Screen Protective Film Repair Available Now
TOPRX1000SD-Ex M2I HMI Touch Screen Display Front Overlay Replacement In Stock
TOPRX1000VD M2I HMI Protective Film HMI Panel Screen Repair Available Now
TOPRX1000VD-Ex M2I HMI Touchscreen Monitor Front Overlay Replacement In Stock
TOPRX1200SD M2I HMI Touch Screen Film Protective Film Repair Available Now
TOPRX1200XD M2I HMI Protective Film Touch Membrane Repair Available Now
TOPRX1200XD-Ex M2I HMI Touch Screen Tablet Front Overlay Replacement In Stock
TOPRX1500XD M2I HMI Front Overlay Touch Screen Panel Repair Available Now
TOPRX1500XD-Ex M2I HMI Touch Screen Display Protective Film Replacement In Stock
M2I HMI Description Inventory status


M2I XTOP Products Normal/EX Model HMI Manuals PDF Download:

  • Strengthen Customer's Industrial Value
  • M2I Corporation Industrial HMI Touch Panel HW Installation Manual
  • TOPPCVIEW Catalog

  • FAQ:

    Question: What are the front part names and specifications of M2I TOPRX1200SD-Ex?

    Answer: The front part names and specific cation of TOPRX1200SD-Ex are TFT 16M Color LCD, Analog Touch Panel and Front Cover Sheet for Damp Proof and Dust Proof.


    Question: What is the display size of TOPRX1200SD-Ex Touchscreen Panel Front Overlay?

    Answer: The TOPRX1200SD-Ex Protective Film HMI Panel Glass is 12.1 inch.


    Question: What is the memory specifications of TOPRX1200SD-Ex?

    Answer:
    What is the memory specifications of TOPRX1200SD-Ex?
