B&R 4PP065.0571-X74F Keyboard Membrane Touch Panel Repair
- Model
- 4PP065.0571-X74F
Item specifics
- Brand
- B&R
- Size
- 5.7 inch
- Warranty
- 1 Year VICPAS Warranty
- Model
- B&R Power Panel 65 4PP065.0571-X74F
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Review
Description

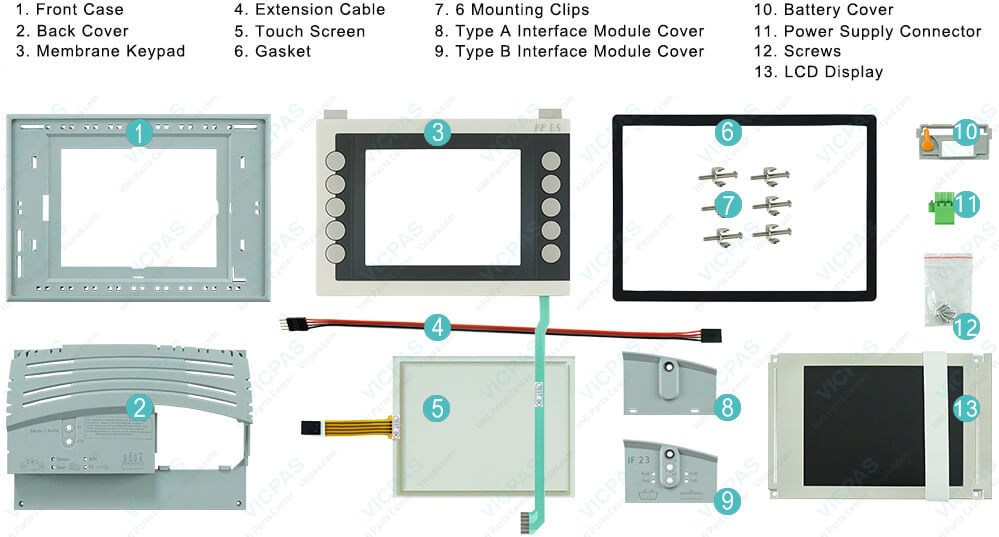

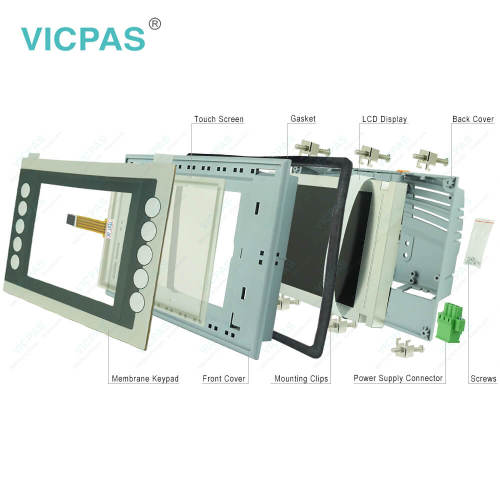

B&R Power Panel 65 4PP065.0571-X74F Membrnae Keypad Touch Screen Glass Repair Replacement
Order each part separately is available
The PP65 4PP065.0571-X74F is both a controller and an operator panel. Any necessary peripherals can be connected using the integrated X2X interface. Using the optional interface modules, it is also possible to connect other B&R products or even to integrate the PP65 into control systems from other manufacturers. All components are situated in a compact housing with a 3.5" or 5.7" QVGA TFT display.
4PP065.0571-X74F Equipped with 2 USB interfaces and a Fast Ethernet port for exchanging data with higher level systems, the PP65 4PP065.0571-X74F is also available with integrated X2X or POWERLINK interface options for connecting remote I/O modules and drives. These systems can be further extended with RS232/RS485, CAN and PROFIBUS DP slave interfaces to meet any requirement.
VICPAS supply B and R Power Panel 65 4PP065.0571-X74F HMI part to replace, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad and display.
Specifications:
The table below describes the parameters of the 4PP065.0571-X74F Power Panel 65 Touchscreen Panel Membrane Keypad.
| Part Number : | 4PP065.0571-X74F |
| Product Line: | Power Panel 65 |
| Screen diagonal | 5.7 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | vertical |
| Input Type: | Touchscreen/Keypad |
| Storage | -20 to 70°C |
Related Power Panel 65 Series Part No. :
| Power Panel 65 | Description | Inventory status |
| 4PP065-0571-K05 | Power Panel 65 B&R Touch Screen Panel Glass Replacement | In Stock |
| 4PP065-0571-K06 | B&R PP65 Touch Screen Panel Operator Keyboard Repair | Available Now |
| 4PP065-0571-K51 | B and R Power Panel 65 Touch Screen Panel Repair | Available Now |
| 4PP065-0571-K52 | Power Panel 65 B&R Touch Panel Protective Film Repair Kit | In Stock |
| 4PP065-0571-K73 | Power Panel 65 B&R MMI Touch Glass Membrane Keyboard Keypad | In Stock |
| 4PP065-0573-K01 | Power Panel 65 B and R Protective Film Touchscreen Glass | In Stock |
| 4PP065-0571-P74F | B and R PP65 HMI Touch Screen Panel Membrane Keypad Replacement | Available Now |
| 4PP065-0571-X74F | Power Panel 65 Touch Screen Panel Keyboard Membrane Replacement Kit | In Stock |
| 4PP065-0571-B00 | B&R Power Panel 65 Touchscreen Membrane Membrane Keypad Keyboard | Available Now |
| 4PP065-0571-K37 | Power Panel 65 B and R Touch Screen Terminals Keypad Membrane Repair | In Stock |
| 4PP065-0653-K01 | B and R Power Panel 65 Touch Screen Panel Glass Replacement | Available Now |
| 4PP065-0702-K01 | B and R Power Panel 65 Touch Membrane Repair Replacement | Available Now |
| 4PP065-1043-K01 | Power Panel 65 B&R Touch Screen Panel Replacement Repair | Available Now |
| B&R PP65 HMI | Description | Inventory status |
B&R Power Panel 65 Manuals PDF Download:
FAQ:
Question:What is the procedure for replacing the B&R Power Panel 65 4PP065.0571-X74F battery?
Answer:
• Disconnect the power supply to the Power Panel.
• Touch the housing or ground connection in order to discharge any electrostatic charge from your body.
• Remove the battery cover from the top of the Power Panel device using a screwdriver (1).
• Carefully remove the used battery from its fitting by pulling the removal strip (2).
• In order to prevent a short circuit, do not touch the new battery with pliers or uninsulated tweezers. The battery should not be held by its edges.
• Insert the new battery with the correct polarity. To make the next battery change easier, be sure the removal strip is in place when inserting the battery.
• Replace the battery cover.
• Reconnect the power supply to the Power Panel.
• Reset the date and time (using B&R Automation Studio).
Question:How to clean B&R Power Panel 4PP065.0571-X74F devices?
Answer:
Power Panel devices should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol). The cleaning agent should be applied to the cloth beforehand, not sprayed directly on the Power Panel! Never use aggressive solvents, chemicals, scouring agents, pressurized air or steam-jet air ejectors.
Question: What is the 4PP065.0571-X74F B&R PP65 touch screen panel price?
Answer: Submit a fast quote, send VICPAS an email for best price.
